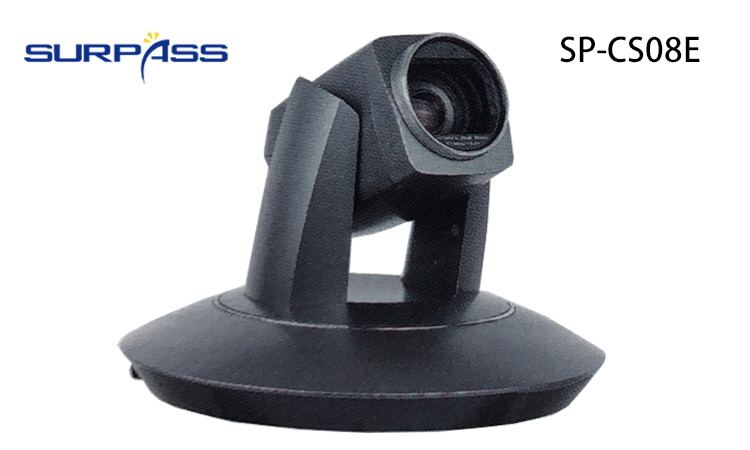

SP-CS08E High Speed Dome Camera

Image Sensor

1/2.8"Exmor CMOS, 2.2 megapixel

Signal System(HD)

1080p60,1080p/30,1080/60,720p/60,720P/30

Signal System(SD)

1080p50,1080p/25,1080/50,720p/50,720P/25

Focal Lens

NTSC, PAL

Iris

f=4.7mm - 94.0mm

Optical Zoom

F1.6 - F3.5

Digital Zoom

20x

Min. object distance

12x

Horizontal

10mm - 1,000mm

Viewing Angle

55.4 degree-2.9 degree (1080P mode)

Focus System

Auto, Manual, PTZ trigger, One push trigger

Min. Illumination

0.5 lux(color), 0.1 lux(B/)

Shutter Speed

1/30 to 1/60,000s

Gain

Auto / Manual

White Balance

Auto, indoor, outdoor, one push, manual, auto tracking

Exposure Control

Auto, Manual, Shutter Priority, Iris Priority

S/N

≥50dB

Pan Angle

-170 degree ~ +170 degree

Tilt Angle

-30 degree ~ +90 degree

Pan Speed

0.1 degree - 160 degree/S

Tilt Speed

0.1 degree-120 degree/S

Preset Number

256

OSD

Yes

Image Flip

Yes

Wide Angle Lens

Optional

HD video output

DVI-I(for DVI-D, HDMI, YPbPr, VGA, 5-BNC), HD-SDI

SD Video Output

CVBS

Control Interface

RS-2321N,RS-232OUT,RS-422,RS-485

Protocol

VISCA(daisy chain)/ PELCO-P/PELCO-D

Address

0~63

Power

DC 12V

Power Consumption

<15W

Operating Temperature

0 degreeC ~ +40 degreeC

Storage Temperature

-20 degreeC ~ +60 degreeC

Dimensions(WxHxD)

226mmx206mmx159mm

Weight

1.8k

Body color

Grey

Place of Origin

Guangzhou, China
