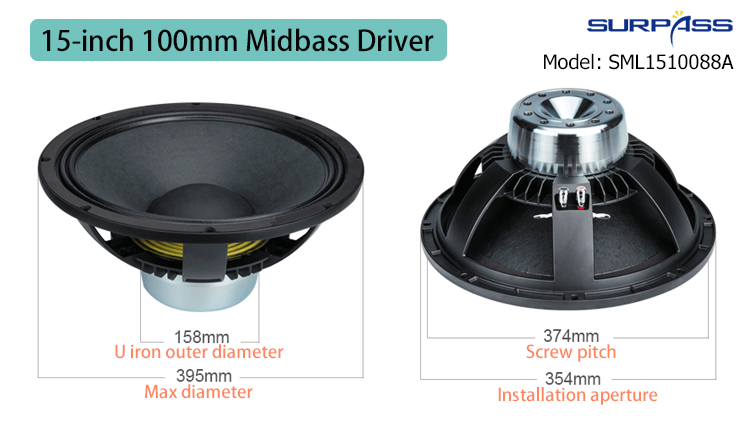

SML1510088A 15-inch 100mm Midbass Driver
Imported wool fabric selvage 15-inch 100mm Midbass Driver
SML1510088A 15-inch 100mm Midbass Driver Specification:
Model | SML1510088A |
Description | 15-inch 100-core midbass speaker |
Installation aperture | About 354mm |
Diagonal screw hole | About 374mm |
Height | About 182mm |
Outer diameter | About 395mm |
Voice coil | 100-core pure aluminium flat wire |
Cone paper | Imported wool fabric selvage |
Magnet material | NdFeB 97 magnetism |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 600 Watts |
Maximum power | 1.2K Watts |
Sensitivity | 98 dB/1W/1m |
Frequency range | 43-2.5K Hz |
Resonant frequency | 33Hz |
Electrical Quality Factor Number | 0.23 |
Mechanical Quality Factor Value | 4.3 |
Total Quality Factor Number | 0.22 |
Effective Volume | 139 liters |
Vibration Area | 855.0cm2 |
Magnetic Force | 28 Txm |
Effective Mobile Quality | 173g |
Place of Origin | Guangzhou, China |
Net Weight | About 10KG (No packaging) |
SML1510088A 15-inch 100mm Midbass Driver Features:
1. High temperature resistance N38SH magnetism steel
High sound pressure, strong shock, high temperature resistance, sufficient power, clear voice.
2. Imported paper basin, 3 times durable
Locating elastic wave in loudspeaker not only acts as brake, but also has the ability to "return to reset" on voice coil distance.
3. Up to 100 hours fog extension testing
Nd-Fe-B magnetic energy is about ten times higher than that of ordinary speaker.
4. Wool fiber basin, better than excellent
With regard to products, we are even willing to improve them with a stubborn attitude, so that you can get rid of worries and enjoy high quality products to touch your music every time.
