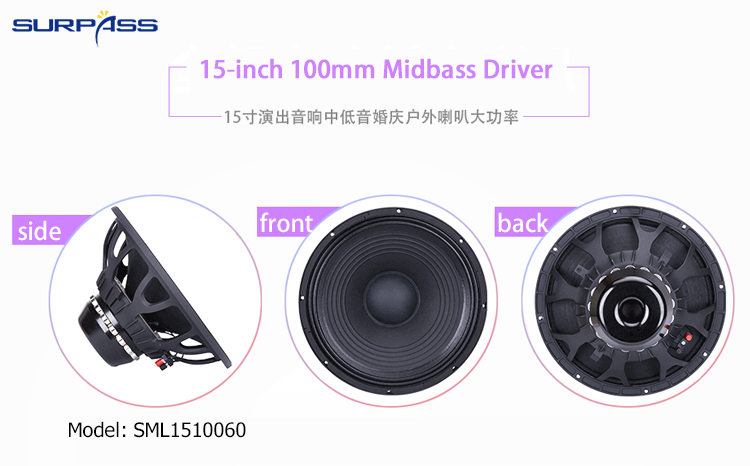

SML1510060 15-inch 100mm Midbass Driver
Granular magnetism 15-inch 100mm Midbass Driver
SML1510060 15-inch 100mm Midbass Driver Specification:
Model | SML1510060 |
Description | 15-inch 100-core midbass speaker |

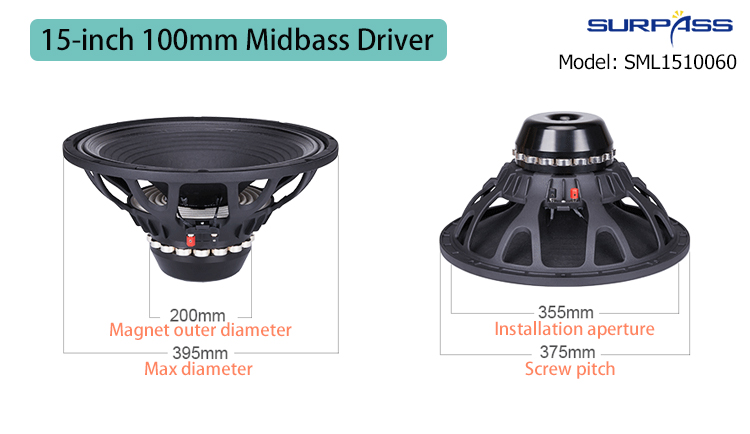

Installation aperture | About 355mm |
Diagonal screw hole | About 375mm |
Height | About 200mm |
Magnet material | Granular magnetism |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 600 Watts |
Maximum power | 1.2K Watts |
Sensitivity | 97.5 dB/1W/1m |
Frequency range | 40-3K Hz |
Resonant frequency | 40Hz |
Electrical Quality Factor Number | 0.32 |
Mechanical Quality Factor Value | 5.4 |
Total Quality Factor Number | 0.30 |
Effective Volume | 177 liters |
Vibration Area | 866.0cm2 |
Magnetic Force | 19.5 Txm |
Effective Mobile Quality | 192g |
Place of Origin | Guangzhou, China |
Net Weight | About 9.3KG (No packaging) |
SML1510060 15-inch 100mm Midbass Driver Features:
1. 15-inch new loud bass
High sensitivity, excellent for instantaneous response and auditory details
2. Let you feel thunderous shock
The elastic wave is made of Dupont blended fabric, transverse rigid balance, accurate positioning.
3. Professional high-power plum blossom magnet
High-quality terminal to ensure long-term stable signal output break off transmission and resulting high-pitched whistle
4. Strengthened and thickened Aluminum basin frame
High quality thickened Aluminum basin frame effectively guaranteeing the stability of low frequency in large dynamic bass. Lengthened screw installation hole design suitable for most audio thread hole positions. Design basin frame according to professional acoustics to ensure heavy, stable and high reducibility of low-frequency vibration.
