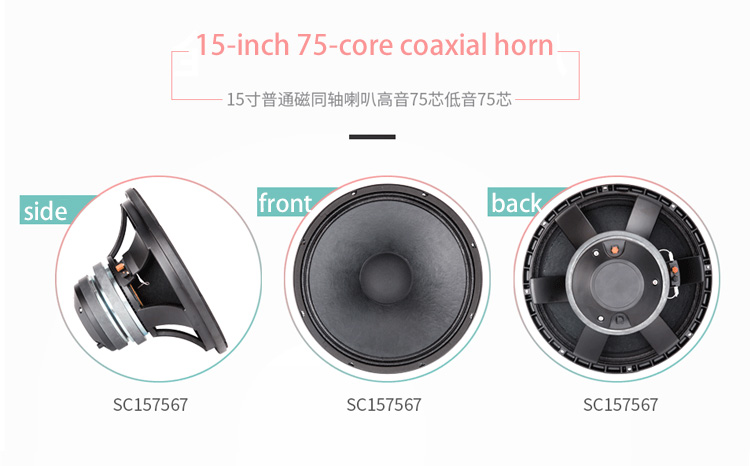

SC157567 15-inch 75-core coaxial horn
Treble 170 magnetic bass 190 magnetic 15-inch 75-core coaxial horn
15-inch 75-core coaxial horn Nominal specification
Product Name | 15-inch 75-core coaxial horn | Speaker Brand | Surpass |
Installation Aperture | about 351mm | Magnet | Treble 170 magnetic， bass 190 magnetic |
Diagonal Screw Hole | about 372mm | Net Weight | 13.5KG (No packing,about) |
Total Height | about 175mm | Frame Material | Cast aluminum frame |
15-inch 75-core coaxial horn Technical parameter
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | Treble 80 Watts /bass 350 Watts |
Maximum power | Treble 160 Watts /bass 700 Watts |
Sensitivity | Treble 106 dB /bass 97 dB (1W/1m) |
Frequency range | 40-18000Hz |
15-inch 75-core coaxial horn T.S parameter
Resonant frequency | 40 Hz |
DC impedance | 5.6 ohm |
Number of loudspeaker electrical quality factor | 0.38 |
Mechanical Quality Factor Value of Loudspeaker | 8.8 |
Total Quality Factor Number of Speakers | 0.36 |
Effective Volume of Horn | 157.0 dm3 |
Vibration area | 880.0Cm2 |
Magnetic force | 20.1 Txm |
Effective Mobile Quality | 108g |
15-inch 75-core coaxial horn Product characteristics
1. Strong expressiveness, impeccable
A coaxial speaker is a high-pitched speaker in addition to a bass speaker on the same axis
2. Full tone, exquisite and rich
Imported drum paper and flattening integrated production process, gold-plated terminal to ensure smooth sound transmission
3. Using Ferrite Magnets
As far as electrical properties are concerned, ferrites have high dielectric properties and magnetic conductivity
4. 3600 Fixed Sound Field Around Coverage
The voice coil is made of imported wires with double inner and outer layers and treated with high temperature black glue to ensure the durability and longevity of the sound quality
