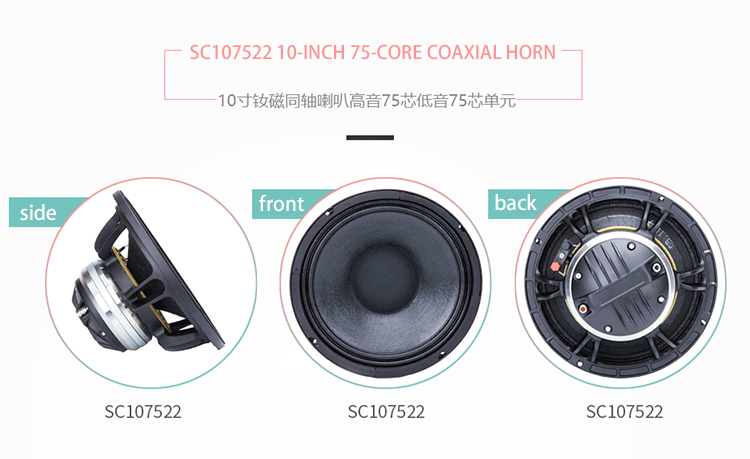

SC107522 10-inch 75-core coaxial horn
Surpass 10-inch 75-core coaxial horn
10-inch 75-core coaxial horn Nominal specification
Product Name | 10-inch 75-core coaxial horn | Speaker Brand | Surpass |
Installation Aperture | about 228mm | Magnet | NdFeB 138 magnetism |
Diagonal Screw Hole | about 245mm | Net Weight | 4.6KG (No packing,about) |
Total Height | about 145mm | Frame Material | Cast aluminum frame |
10-inch 75-core coaxial horn Technical parameter
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | Treble 80 Watts /bass 350 Watts |
Maximum power | Treble 160 Watts /bass 700 Watts |
Sensitivity | Treble 98 dB /bass 105 dB (1W/1m) |
Frequency range | 68-18000Hz |
10-inch 75-core coaxial horn T.S parameter
Resonant frequency | 68 Hz |
DC impedance | 5.6 ohm |
Number of loudspeaker electrical quality factor | 0.25 |
Mechanical Quality Factor Value of Loudspeaker | 6.54 |
Total Quality Factor Number of Speakers | 0.24 |
Effective Volume of Horn | 26.6 liters |
Vibration area | 355Cm2 |
Magnetic force | 18.5 Txm |
Effective Mobile Quality | 35.4g |
10-inch 75-core coaxial horn Product characteristics
1. Pursuit of sound quality, Professional Horn Brand
Reduce distortion and let music touch your soul
2. Paper pots are strong and durable
Special imported paper basin, strong and durable, more optimized handling of the horn's high-frequency and low-frequency combination, so that the tweeter more imaginative
3. High Performance Magnets
Using high performance Nd magnet steel, combination of advantages
4. High Projection and Elasticity
Put the high and low softness into the water as a stone, and emit the high and low sound waves from one point, so as to recognize clearly and not interfere with the pure nature of the sound
