Six Zone PA Mixer Amplifier with Multimedia Players
120W, 250W, 350W, 450W, 550W
The Commercial & Industrial Public Address 6 Zone Mixer Amplifier with independent volume control, have rated power 60W, 120W, 250W, 350W, 450W, 550W. With Bluetooth, USB/SD & Mp3/FM with IR remote control. Fire Alarm(Chime,Bell, EVAC), Siren Control DC12/24V, ANT/VOX. 3 microphone inputs with Echo, 2 AUX inputs and 1 Line output. It’s suitable for classroom, retail store, shopping mall, super market, restaurant, transportation center or office background music and paging system.

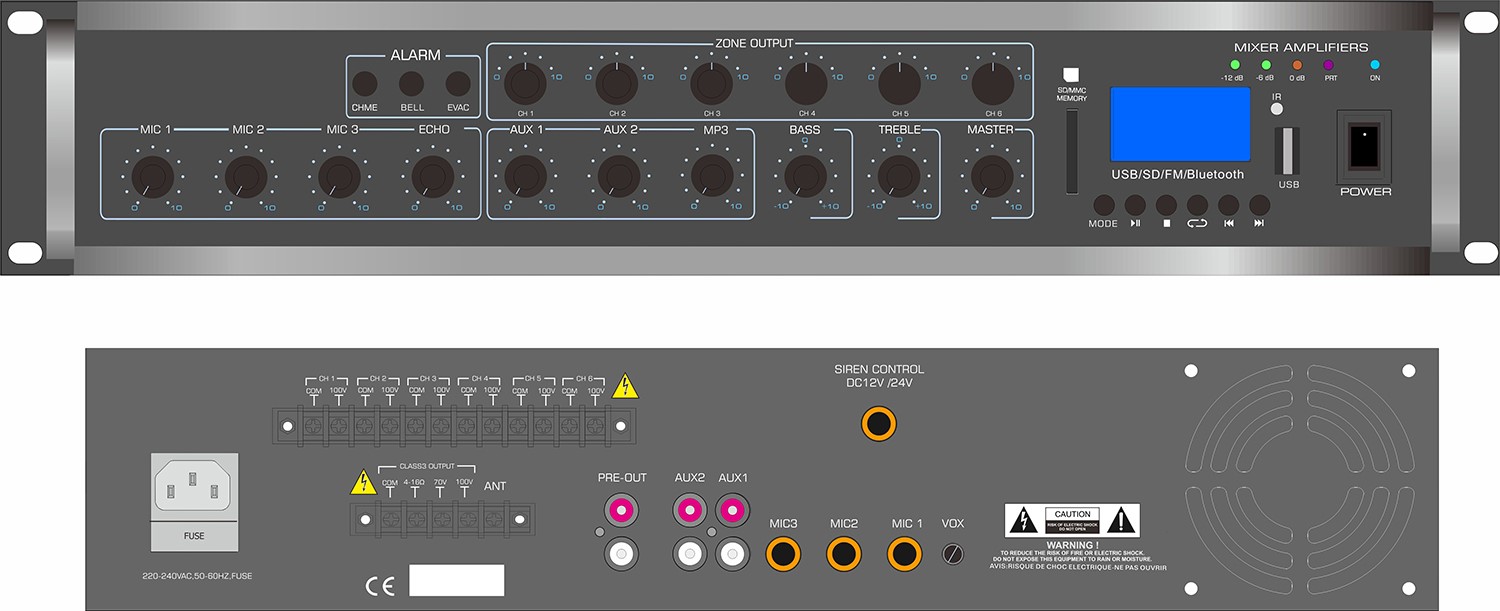

This 6 Zone Mixer Amplifier integrate pre amplifier and power amplifier into one 19” 2U height unit of desktop design, silk printed black high-end metal panel and volume knob, elegant appearance, which is economy but of high reliable performance.
It integrates 3 microphone inputs, 2 AUX inputs and 1 Line output: Mic1-3 on rear panel (6.3mm phone jack). 2 AUX inputs by RCA on rear panel. One RCA line output for external mixer or amplifier. Mic1 VOX priority to override other sources input and with mute level control.
One USB and one SD slots on front provide easy access and operation for installer and end-user.
Its speaker outputs with 100V, 70V and low impedance 4-16 ohms for versatile connections.
Individual volume control for Mic1-3, AUX1-2 inputs with Master, Bass and Treble tone control.
Overall protection of short-circuit, overload and high temperature to avoid any damage.
▪ 6 Zones Mixer amplifier with audio source inputs for paging & background music system.
▪ Ideal for classroom, retail store, small shops or rooms.
▪ Desktop and 19’’ 2U rack mount design.
▪ Rated power from 60W, 120W, 250W, 350W, 450W, 550W.
▪ Built-in Bluetooth, USB/SD & Mp3/FM with IR remote control.
▪ 70V-100V and low impedance 4-16ohms speaker outputs.
▪ 6 zone speaker outputs with independent volume control.
▪ Alarm(Chime,Bell, EVAC) with highest priority
▪ Siren Control DC12/24V terminal for extra EVAC device
▪ 3 Mic inputs with Echo, 2 AUX inputs and 1 Line output.
▪ Mic1 VOX with priority to override other sources input and with mute level control.
▪ 2 AUX inputs by RCA on rear panel
▪ Volume control: Mic 1-3, AUX 1-2, Master, Bass and Treble tone control
▪ AC Power and output level meters.
▪ LED indicators for power, protect and signal
▪ With natural cooling fan to control internal temperature.
▪ Short circuit, overload and high temperature protection
▪ Warranty of 3 years with CE certificate.
6 Zone PA Mixer Amplifier with Mp3 USB/SD & FM Tuner
Rated Power Output
Bluetooth, Mp3 player by USB/SD on front panel, with IR remote control
FM tuner with ANT on rear panel, with IR remote control
100V - 70V & 4-16 Ohms
AUX: 500mV/10KΩ, MIC:3-6mV, PRE-Out: 0.775V(0dB)
<0.5% at 1kHz
Tone Adjustment Range
BASS: 100Hz (±10dB), TREBLE: 10kHz (±10dB)
Automatic FAN strong air cooling method
AC FUSE 3.15A
AC FUSE 4A
AC FUSE 6.3A
AC FUSE 8A
AC FUSE 12A
short-circuit, overload and high temp protection
Rate consuing power
(3 x 0.75mm²) x 1.5M (standard)
Metal panel, 2U, silk-printed black
