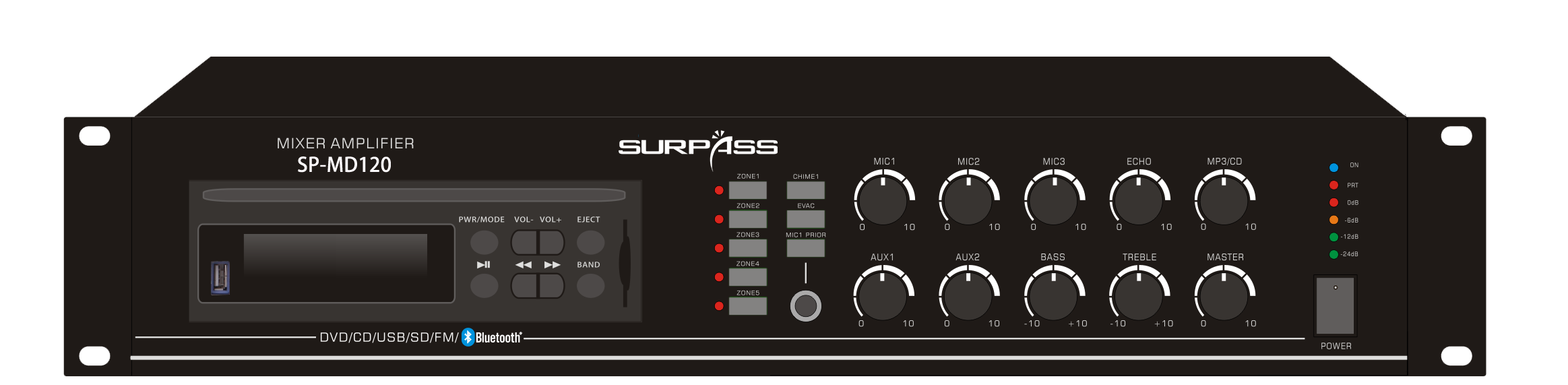

SP-MD60,SP-MD120,SP-MD250,SP-MD350 PA Mixer Amplifier with DVD/USB/SD/FM/Bluetooth
public address 5 Zone Mixing Amplifier with audio source media player
5 Zone Mixer Amplifier +DVD/USB/SD/FM/Bluetooth
SP-MD60(60W), SP-MD120(120W), SP-MD250(250W), SP-MD350(350W)
PS: 450W and 550W can do if needed
Feature:
▪ 5 zone mixer amplifier with source inputs for paging & background music system.
▪ Designed for restaurant, classroom, retail store, small shops or rooms.
▪ 19’’ 2U desktop design and with removable rack mount ears.
▪ Rated power output 60W/ 120W/ 250W/ 350W/ 450W/ 550W.
▪ 70V-100V and low impedance 4-16ohms speaker outputs.
▪ With DVD/CD, USB/SD, Mp3, FM, Bluetooth, Echo.
▪ 5 Signal input: Mic 1-3, VOX, AUX 1-2, Mic 1 synchronal both on front and rear panels.
▪ 2 Signal output: Pre out, Video out; 5 zones speaker output
▪ Mic 1 with priority function, EVAC, CHIME.
▪ 9 Volume control knobs: Master/Bass/Treble, Mic 1-3, AUX 1-2, Echo, Mp3/DVD/CD
▪ 6 LED indicators for power, protect and signal.
▪ With natural cooling fan to control internal temperature.
▪ Short circuit, overload and high temperature protection
▪ SMT technical skills to enhance the stability.
▪ Warranty of 3 years with CE/RoHS certificate.
Specification:
Model | SP-MD60 | SP-MD120 | SP-MD250 | SP-MD350 |
Description | 5 Zone Mixer Amplifier +DVD/USB/SD/FM/Bluetooth | |||
Rated Power | 60W | 120W | 250W | 350W |
Speaker Output | 5 zones, 100V or 70V, 4-16 Ohms | |||
Input | AUX1-2 500mV/10Kohm/MIC1-3 1-6mV/ MIC1 at 48V | |||
Output | Pre out, Video out | |||
Frequency Response | 80Hz~20KHz | |||
Distortion(THD) | <0.5% at 1KHz 100V -3dB | |||
S/N Ratio | 75dB | |||
Tone Control | Bass: 100Hz ±10dB, Treble: 10KHz ±10dB | |||
Power Supply | AC 110V-240V/50-60Hz | |||
Dimension | 485(W)×340(D)×88(H)mm | |||
Weight | 7KG | 11KG | 13.5KG | 14.5KG |
Rear Panel:
