SP-DAN44

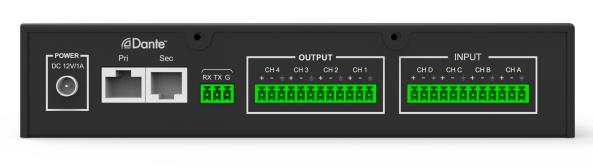

4 in 4 out Dante digital-to-analog converter box
Features:
▪ 4 Dante input and output
▪ Support Mconsole software network multiple management, UDP interface communication
▪ 44.1K/48K/96k24BIT sampling rate switch freely
▪ Support line input and microphone input level, up to 6-level sensitivity adjustment, software selection switching and adjustment
▪ Dual network ports support hand-in-hand audio transmission, built-in switch function, higher stability
▪ Support RS232 central control
Specifications:
Size/Weight: 215*145*45/1.38KG
Working voltage: DC12V
Working current: 800mA (peak)
Sampling precision: 24Bit
Sampling rate: 48kHz
Frequency Response: 20Hz-20kHz@±0.2dB
Dynamic range: 106dB
Distortion: 0.003%
Signal-to-noise ratio: 106dB
System delay: <1ms
Channel Isolation: <-110dB @0dBu, 1kHz
Full scale input: 12dBu
Full scale output: 12dBu
Input Impedance: 11.5kΩ
Output Impedance: 100Ω
