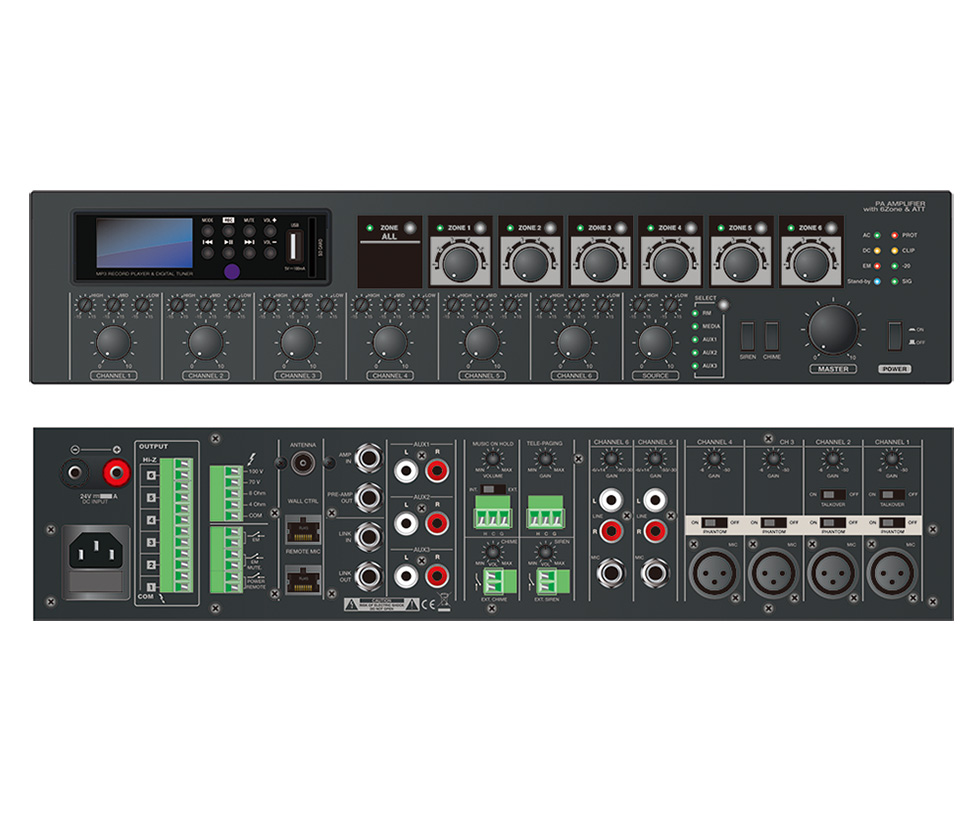

SP-6120EX,SP-6240EX,SP-6360EX 6x6 PA Matrix Mixer Amplifier with Audio Source Media Players

6 Zone x 6 Channel Matrix Mixer Amplifier with Audio Source Media Players

SP-6120EX, SP-6240EX, SP-6360EX

Feature:

▪ Controls:

Front 6 Input Channel Volume Control With 3 tone control and 1 selectable source input Volume

control with 2 tone control, Chime & Siren Switch, Master Volume Control, 6 Zone Speaker

Selector with 6 step attenuator

Rear: Talkover Switch for Channel 1-2 &Phantom Power Switch for Channel1-4

Gain for 6 Input Channel

Chime Siren, Tele-paging, Music On Hold Level Control Selector

▪ Connectors:

In put: Channel 1-4: XLR Jack Electronically Balanced

Channel 5-6: Dual RCA and 1/4 Phone Jack

Remote Mic Wall control: Rj45

Tele Paging: Euroblock

Amp Link in: 1/4 Phone Jack.

DC 24V input Jack

Output: Speaker Output: Euroblock Attenuated and Switched 6 CH, Direct Output 40, 80, 70V, 100V

Music On Hold: Euroblock

Pre-amp Link out: 1/4"Phone Jack

Contact Ext Chime &Siren: Euroblock

EM &L EM Mute: Euroblock

Media player module: FM Tuner/ Recordable MP3/ bluetooth player

▪ Indicators: SIG, -20db, CLIP Protect Zone selector, Operating status AC, DC, EM Stand by

Protection: Output Current Limiting, Thermal Protection&DC Offset Protection

Cooling: Convection Cooling

▪ Option: Rack Mount Kit
