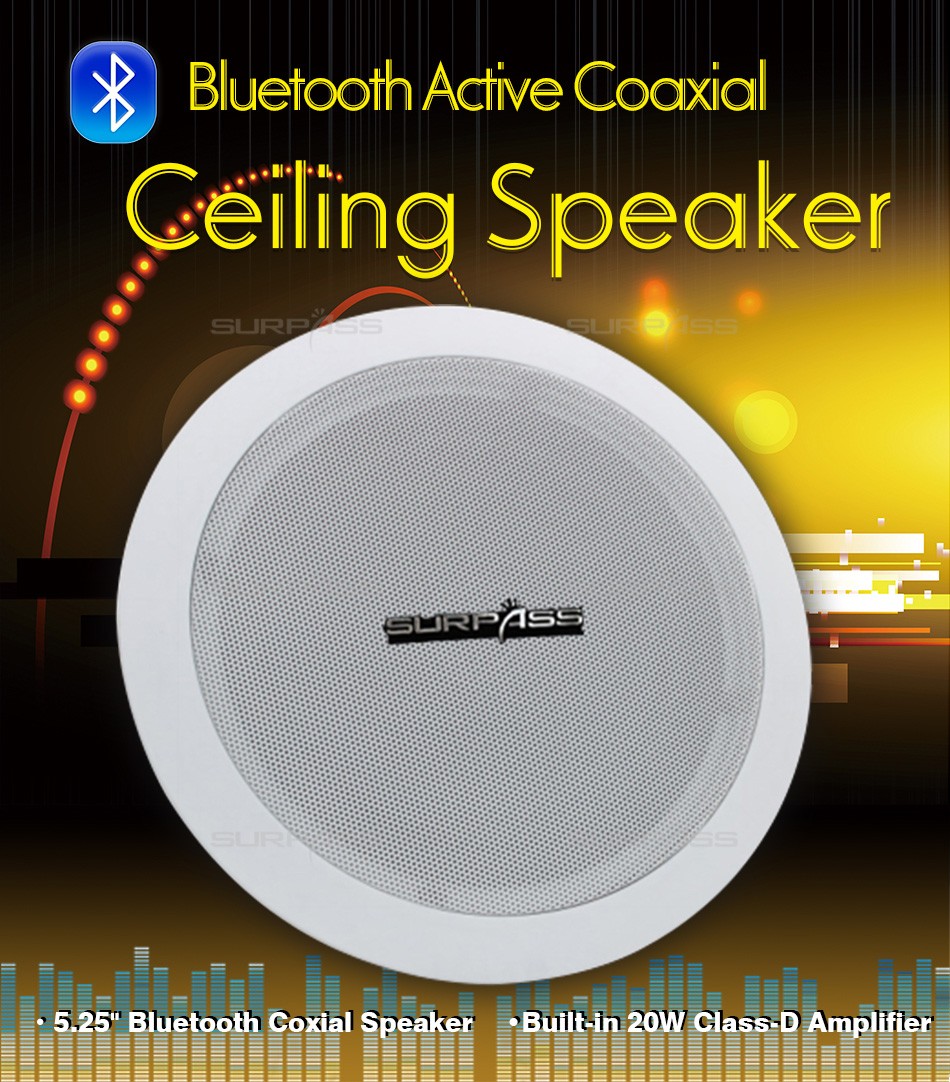

Active Bluetooth Coxial in Ceiling PA Loud Speaker SP-BTC20 SP-BTC30 SP-BTC40

5.25 Inch Coxial Speaker Bluetooth Ceiling Speakers Household Bathroom Home Theater Full Frequency Wireless Audio Speakers

Bluetooth Ceiling Speakers Specifications:
▪ Rated power: 2x20W
▪ Amplifier Type: Digital Class D
▪ Frequency response: 90Hz-20KHz(±3dB)
▪ THD: <0.05% at 1kHz,1/3 output power
▪ S/N: >78dB

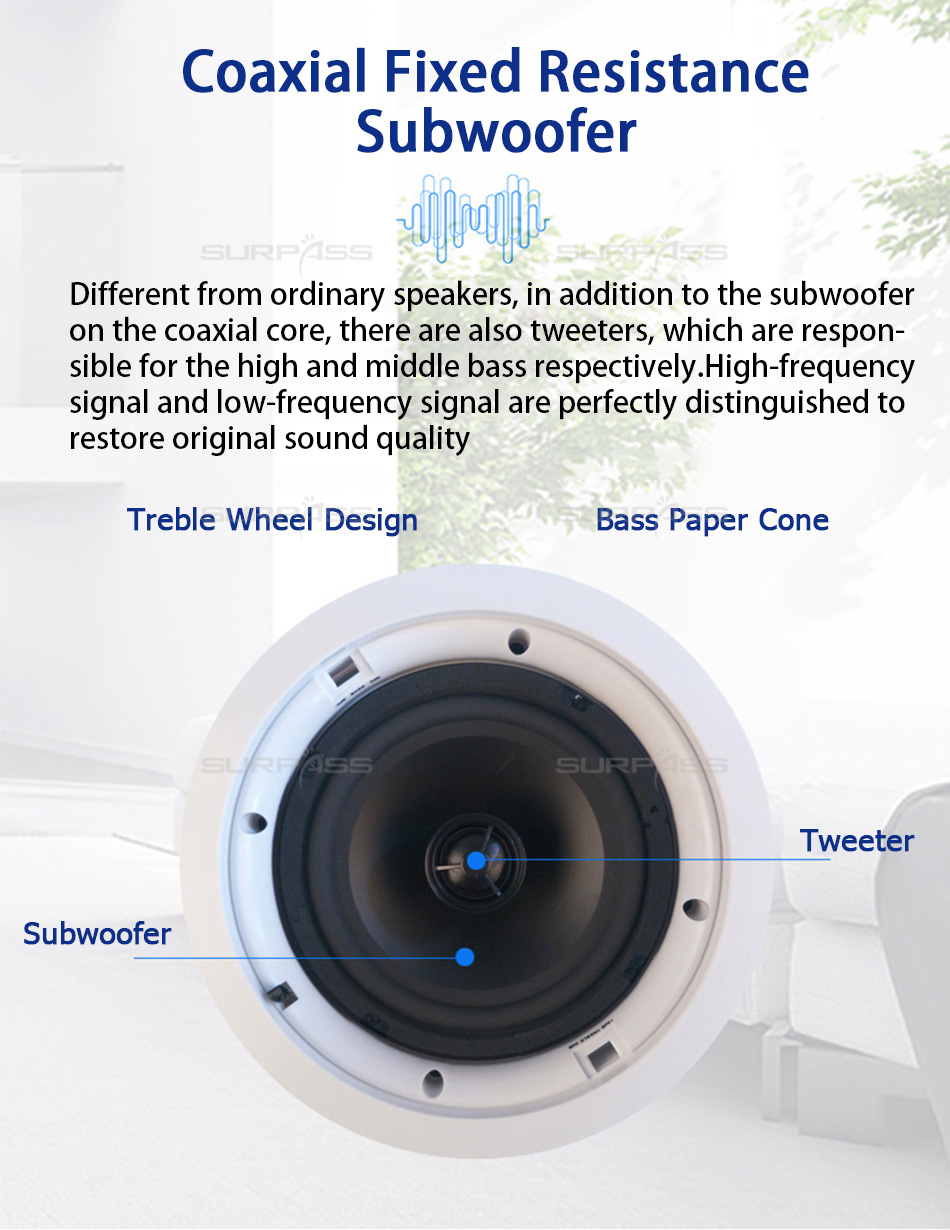

▪ Speaker Unit: Integration 5.25"Coaxial unit
▪ Power Consumption: 20W
▪ Installation: Ceiling mount
▪ Materials: ABS
▪ Power Supply: AC110V~AC220V±10% 50-60Hz
▪ Dimension: D203*80

Bluetooth Ceiling Speakers Features:

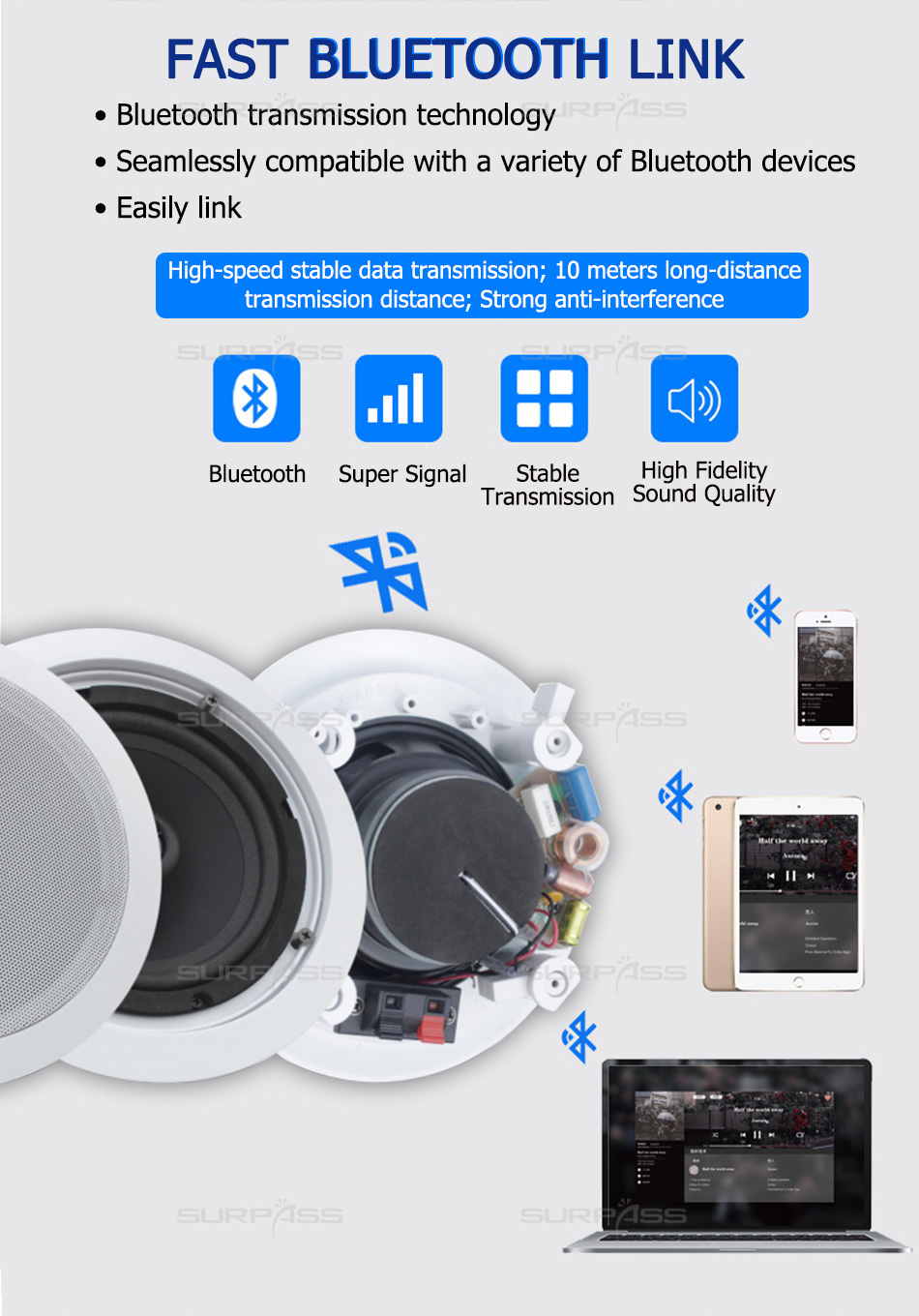

▪  Stereo wireless Bluetooth transmission solution,BEKEN's BK8000L chip provides high quality sound quality and compatibility for the module,overall performance is superior;
▪  AC110V~AC220V power supply mode;
▪  Reasonable structure, beautiful appearance, ceiling-mounted installation;
▪  Full-band speaker unit with a wide frequency response;
▪  High performance, low distortion, low loss;
▪  Wireless transmission range is more than 10 meters;
▪  Support Bluetooth protocol: HFPV1.5, A2DPV1.2,AVRCPV1.4,HSP1.2,GAVDP1.2,IOP

Model: SP-BTC20            5inch Coxial    RMS 2x20W

▪ Stereo wireless Bluetooth transmission solution,BEKEN's BK8000L chip provides high quality sound quality and compatibility for the module,overall performance is superior;

▪ AC100V~AC240V power supply mode;

▪ Reasonable structure, beautiful appearance, ceiling-mounted installation;

▪ Full-band speaker unit with a wide frequency response;

▪ High performance, low distortion, low loss;

▪ Wireless transmission range is more than 10 meters;

▪ Rated Power: 2x20W/Class D digital power amplifier module;

▪ Frequency response: 90Hz-20KHz（±3dB）;

▪ Nonlinear distortion THD: <0.05% at 1kHz，1/3 rated output power;

▪ Signal to noise ratio S/N: >78dB;

▪ Support Bluetooth protocol: HFPV1.5, A2DPV1.2,AVRCPV1.4，HSP1.2, GAVDP1.2，IOP;

▪ Speaker unit:Integration 5.25"Coaxial unit;

▪ Power consumption: 30W;

▪ Installation: Ceiling mount;

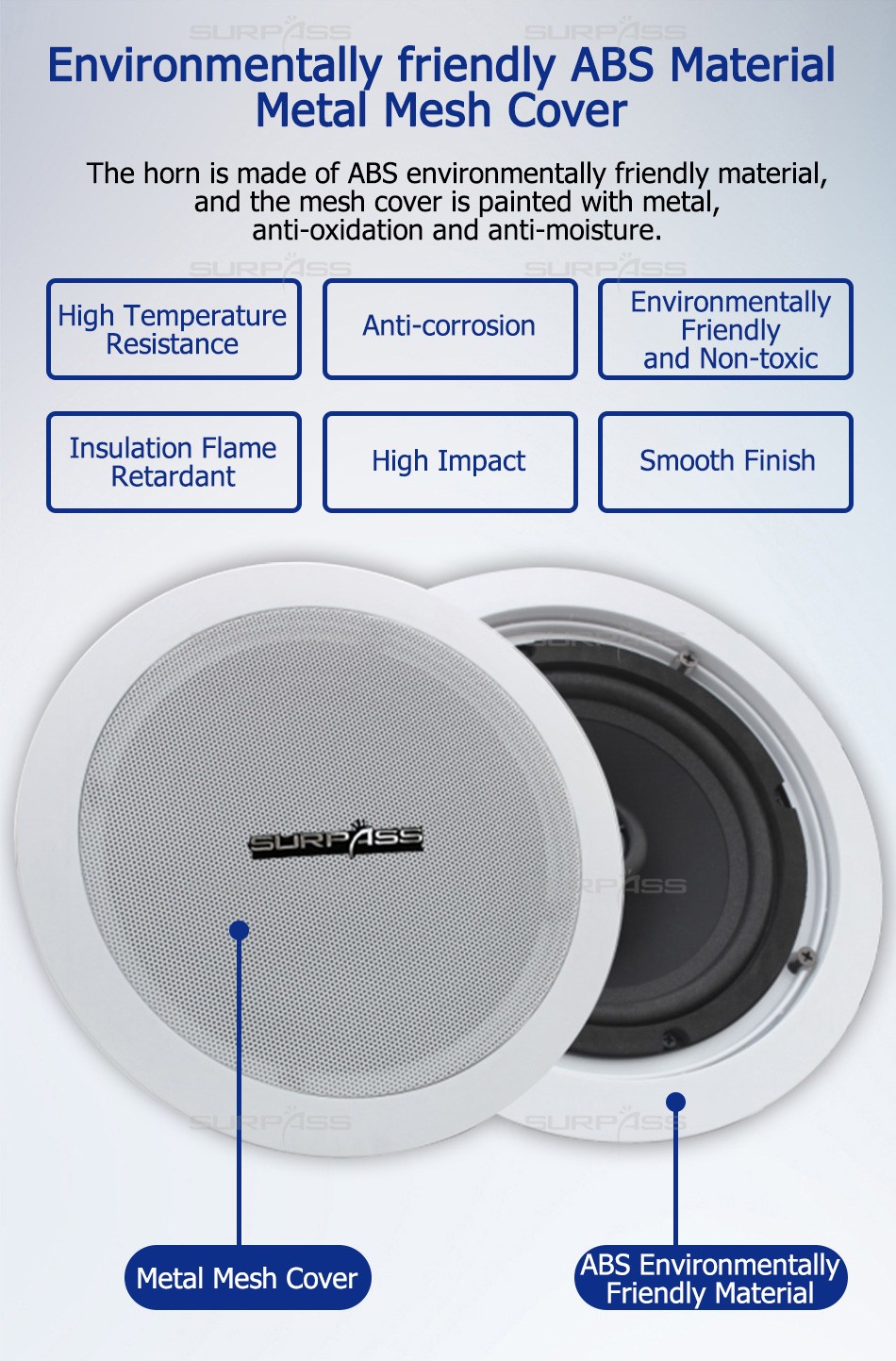

▪ Decorative materials: ABS;

▪ Power supply:AC110V~AC240V±10% 50-60Hz;

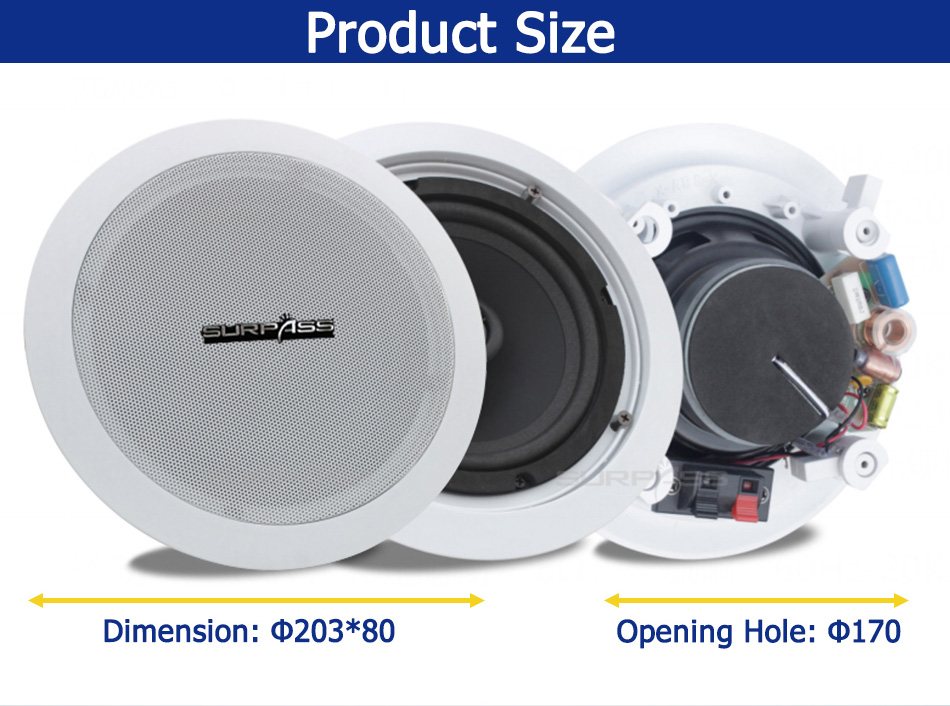

▪ Case size: Φ203*80;

▪ Opening hole size: Φ170;

▪ Weight:  1.25kg;

Model: SP-BTC30            6.5inch Coxial    RMS 2x30W

▪ Stereo wireless Bluetooth transmission solution,BEKEN's BK8000L chip provides high quality sound quality and compatibility for the module,overall performance is superior;

▪ AC100V~AC240V power supply mode;

▪ Reasonable structure, beautiful appearance, ceiling-mounted installation;

▪ Full-band speaker unit with a wide frequency response;

▪ High performance, low distortion, low loss;

▪ Wireless transmission range is more than 10 meters;

▪ Rated Power: 2x30W/Class D digital power amplifier module;

▪ Frequency response: 80Hz-20KHz（±3dB）;

▪ Nonlinear distortion THD: <0.05% at 1kHz，1/3 rated output power;

▪ Signal to noise ratio S/N: >80dB;

▪ Support Bluetooth protocol: HFPV1.5, A2DPV1.2,AVRCPV1.4，HSP1.2, GAVDP1.2，IOP;

▪ Speaker unit:Integration 6.5"Coaxial unit;

▪ Power consumption: 40W;

▪ Installation: Ceiling mount;

▪ Decorative materials: ABS;

▪ Power supply:AC110V~AC240V±10% 50-60Hz;

▪ Case size: Φ230*90;

▪ Opening hole size: Φ200;

▪ Weight:  1.6kg;

Model: SP-BTC40            8inch Coxial    RMS 2x40W

▪ Stereo wireless Bluetooth transmission solution,BEKEN's BK8000L chip provides high quality sound quality and compatibility for the module,overall performance is superior;

▪ AC100V~AC240V power supply mode;

▪ Reasonable structure, beautiful appearance, ceiling-mounted installation;

▪ Full-band speaker unit with a wide frequency response;

▪ High performance, low distortion, low loss;

▪ Wireless transmission range is more than 10 meters;

▪ Rated Power: 2x40W/Class D digital power amplifier module;

▪ Frequency Response: 70Hz-20KHz（±3dB）;

▪ Nonlinear Distortion THD: <0.05% at 1kHz，1/3 rated output power;

▪ Signal to Noise Ratio S/N: >82dB;

▪ Support Bluetooth protocol: HFPV1.5, A2DPV1.2,AVRCPV1.4，HSP1.2, GAVDP1.2，IOP;

▪ Speaker unit: Integration 8"Coaxial unit;

▪ Power consumption: 55W;

▪ Installation: Ceiling mount;

▪ Decorative materials: ABS;

▪ Power supply: AC110V~AC240V±10% 50-60Hz;

▪ Case size: Φ270*105;

▪ Opening hole size: Φ400;

▪ Weight:  2.3kg;
