SP-5600EC,SP-5480EC,SP-5360EC,SP-5240EC,SP-5120EC

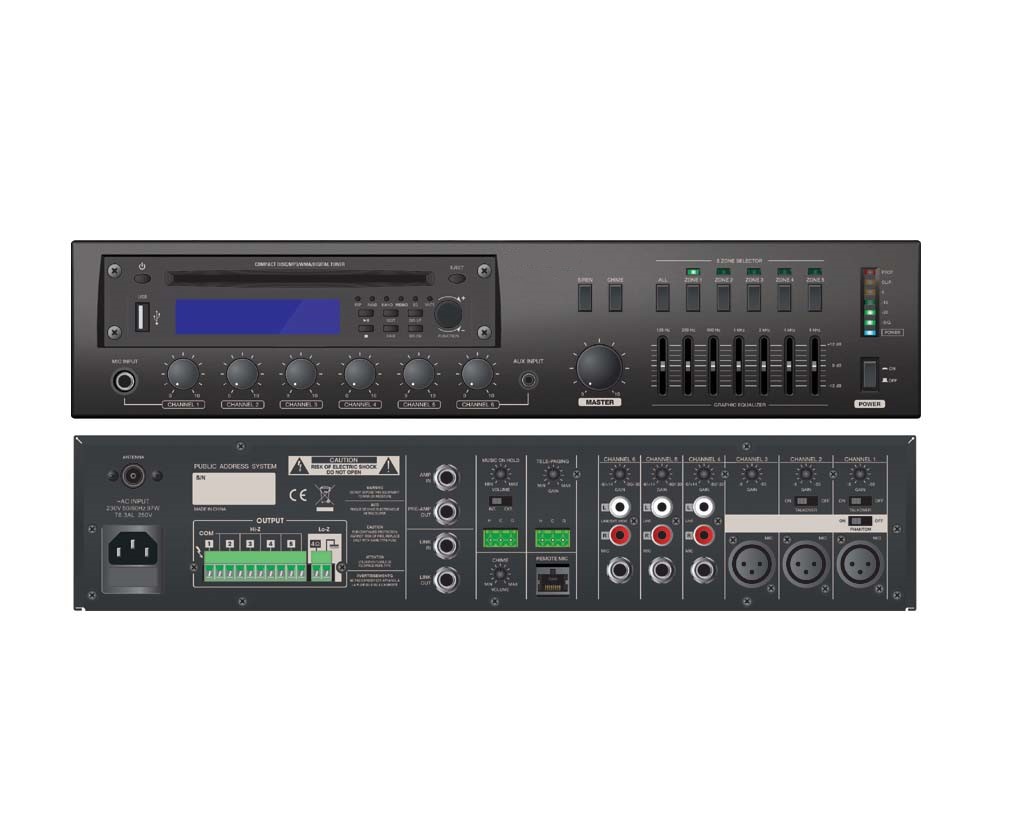

5 Zone Mixer Amplifier with EQ, CD player, USB/Mp3

SP-5600EQ,SP-5480EQ,SP-5360EQ,SP-5240EQ,SP-5120EQ

Feature:

▪ Controls:

Front: 6 Input Channel Volume Control, Chime &Siren Switch, 7 Band EQ Control, Master

Volume Control, 5 Zone Speaker Selector

Rear: Talkover Switch For Channel1. 2& Phantom Power Switch for Channel 1-3

Gain for 6 Input Channel

Chime, Tele-paging, Music On Hold Level Control & Selector

▪ Connectors:

Input: Channel 1-3: XLR Jack Electronically Balanced

Channel 4-6: Dual RCA and 1/4"Phone Jack

Remote Mic: Rj45

Tele Paging: Euro Block

Amp Link: 1/4"Phone Jack

Output: Speaker Output: Euro Bock

Music On Hold: Euro Bock

Pre-amp Link: 1/4"Phone Jack

Media Player: FM Rradio, USB memory stick interface( Ver1. 1), Cdplayer, Mp3player

▪ Indicators: Power. SIG-20DB -10db, Odb. CLIP Protect Zone selector

Protection: Output Current Limiting, Thermal Protection DC Offset Protection

Cooling: Convection Cooling

▪ Option: Rack Mount Kit
