SML1511587A 15-inch 115 Voice Coil Subwoofer
115 Voice Coil Subwoofer
SML1511587A 15-inch 115 Voice Coil Subwoofer
15-inch 115 Voice Coil Subwoofer Specification:
Model | SML1511587A |
Description | 15-inch 115 Voice Coil Subwoofer |
Outer diameter | About 395mm |
Diagonal screw hole | About 378mm |
Installation aperture | About 356mm |
Height | About 170mm |
Magnet | Ferrite 250 magnetic |
Voice Coil | 115 voice coil inner and outer round wire |
Drum paper | Imported 7DF paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
Minimum Impedance | 6 ohm |
Rated power | 800 Watts |
Maximum power | 1600 Watts |
Sensitivity | 94 dB (1W/1m) |
Frequency range | 45-1.8K Hz |
DC impedance(Re) | 5.6 ohm |
Resonant frequency(FS) | 47Hz |
Electrical Quality Factor Number(Qes) | 0.52 |
Mechanical Quality Factor Value(Qms) | 10.9 |
Total Quality Factor Number(Qts) | 0.51 |
Effective Volume(Vas) | 73 liters |
Vibration Area(Sd) | 880 cm2 |
Magnetic Force(BI) | 21.5 Txm |
Effective Mobile Quality(Mms) | 175g |
Place of Origin | Guangzhou, China |
Net Weight | 15KG |
15-inch 115 Voice Coil Subwoofer 15-inch 115 Voice Coil Subwoofer 15-inch 115 Voice Coil Subwoofer

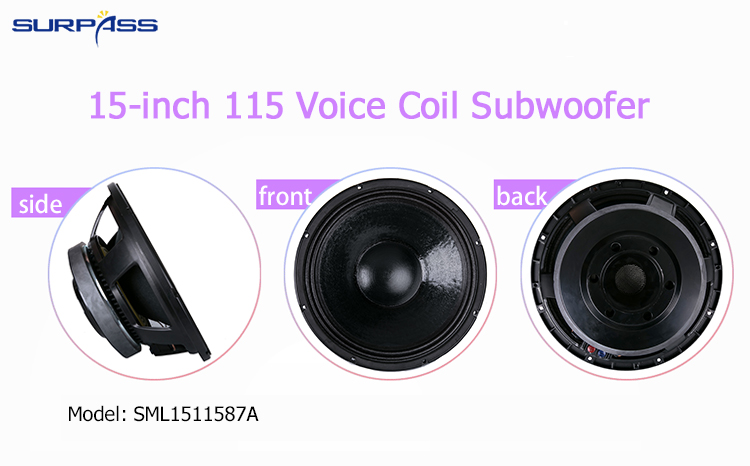

15-inch 115 Voice Coil Subwoofer Details:
15-inch 115 Voice Coil Subwoofer 15-inch 115 Voice Coil Subwoofer 15-inch 115 Voice Coil Subwoofer
15-inch 115 Voice Coil Subwoofer 15-inch 115 Voice Coil Subwoofer 15-inch 115 Voice Coil Subwoofer
