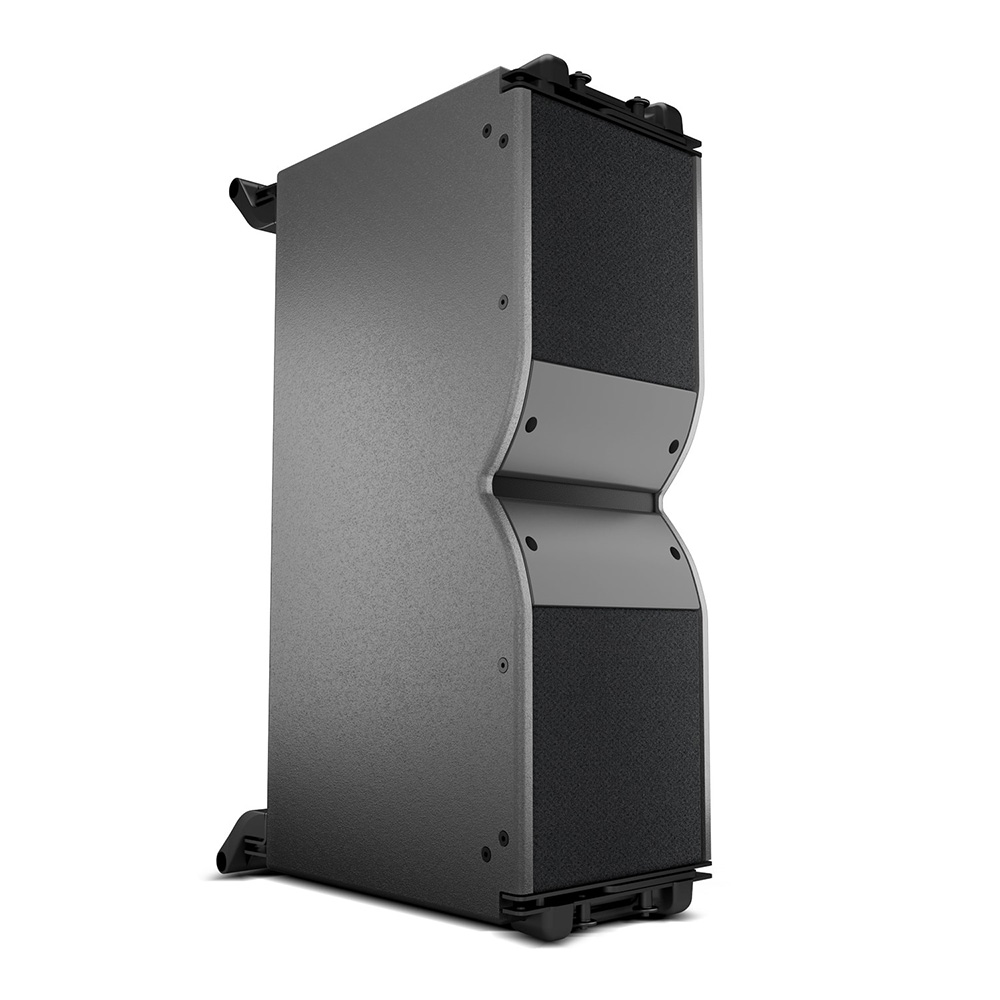

2*8’’ Double 8inch Line Array Full Range Professional Loudspeaker
SP-LAX208
Subwoofer 18’’
SP-SUX18
SMOOTH AND FLEXIBLE
Description:
Scope of application: large and medium performances, music square, theme park, cinema, theatre, pubs and places of highly demanding sound.
The SP-LAX208 modular line source delivers ultimate flexibility to any sound design, with its optional low frequency extension. This active, twoway compact enclosure boasts exceptional throw as well as smooth and wide horizontal directivity.
Used alone, SP-LAX208 is ideal for enhanced speech and vocal programs. With the SP-SUX18 subwoofer, SP-LAX208 delivers a full range performance, capable of reproducing high impact low frequency for the most energetic music concerts.
The fixed installation version is of the simple streamlined rigging and color customization allows the SP-LAX208 adapt to any install which calls for architectural discretion..
Features:
▪ Compact and lightweight design, compliant with rigging and sightline constraints
▪ High output sound pressure and high-quality loud linear sound.
▪ Excellent effect on audio frequency between bass and treble, human voice harmonious with background music.
▪ Extended LF resources for contour requirements from flat to medium.
▪ HF Driver starts smoothly from 1K-20KHz, not hurt the ears standing near in front of speakers.
▪ Powerful, loud and clear sound of woofer and subwoofer, not turbid.
▪ Durable high power, available for long time playing at maximum power, advanced system drive and protection.
▪ Perfect timbre originally, also be adjustable for various purpose and various performances use.
▪ Speaker Driver: Dual 8’’ high-quality LF woofer and 3’’ Neodymium HF tweeter.
▪ 110° horizontal directivity for distributed applications, fills and central clusters.
▪ Advanced rigging system for high accuracy and quick set-up.
▪ High-end material and artwork: 15mm birch molding, antiskid, durable and water-proof.
▪ Small but powerful, save a lot freight charge and more easier for installation.
▪ Clarity, intelligibility and precision for vocal, speech and lead instruments.
Applications:
♪ Standalone (omni) or in cardioid stacks.
♪ Clubs and discotheques, Bars and restaurants.
♪ Theatres and cultural places, Stadium and Stage Monitoring System.
♪ Churches, Houses of Worship, Auditoriums, Religious places.
♪ Pro Sound System, Sound Reinforce System, Live Performance, AV Conference System, Convention Centers.
Specification:
Model | SP-LAX208 | SP-SUX18 |
Description | Line Array Full Range Loudspeaker | Subwoofer |
Speaker Driver Unit | Dual 8'' Line Array full range | 18'' Subwoofer |
Frequency Range | 50Hz-20KHz | 45Hz-20KHz |
Frequency Response | 60Hz-19Hz | 45Hz-300Hz |
Sensitivity | 102dB, Max. 113dB | 103dB, Max.104dB |
Nominal Impedance | 16 Ohm | 8 Ohm |
Peak Maximum SPL | 138dB | 135dB |
Rated Power (continuous2/program/peak) | 350W/550W/780W | 800W/1000W/1600W |
Dispersion°3 Angle (HxV) | Horizontal 100°, Vertical -10° | 180° |
LF Driver | 2 x 8'' 75mm Voice coil | 18'' subwoofer 115mm Voice coil |
HF Driver | Neodymium 1x3'' 75mm Voice coil | / |
Enclosure Material | 15mm Birch Molding | 18mm Birch Molding |
Finish | Environmental Protection in Black Painting, Antiskid Moire, Durable, Water-proof |
Colour | Black or ODM |
Hoisting point | / | / |
Size (HxWxD) | 730x250x485mm | 755x540x705mm |
Net Weight | 28kg | 35kg |
Reference application area | Theater, auditorium, multi-purpose hall, conference center, small and medium-sized outdoor/indoor stage performances, etc. |
