SW1812556 18-inch 125-core Subwoofer
RCF Paper Basin 18-inch 125-core Subwoofer
RCF Paper Basin 18-inch 125-core Subwoofer
RCF Paper Basin 18-inch 125-core Subwoofer Specification:
Model | SW1812556 |
Description | 18-inch 125-core Subwoofer |
Installation aperture | About 420mm |
Outer diameter | About 465mm |
Diagonal screw hole | About 452mm |
Height | About 234mm |
Magnet | NdFeB 124 magnet |
Voice Coil | 125 core high temperature resistance pure copper wire |
Drum paper | RCF paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
Minimum Impedance | 6 ohm |
Rated power | 1200 Watts |
Maximum power | 2400 Watts |
Sensitivity | 97 dB (1W/1m) |
Frequency range | 36-1K Hz |
DC impedance | 5.6 ohm |
Resonant frequency | 36Hz |
Electrical Quality Factor Number | 0.42 |
Mechanical Quality Factor Value | 8.22 |
Total Quality Factor Number | 0.4 |
Effective Volume | 208 liters |
Vibration Area | 1325 cm2 |
Magnetic Force | 29.6 Txm |
Effective Mobile Quality | 262g |
Place of Origin | Guangzhou, China |
Net Weight | About 13.5KG |
RCF Paper Basin 18-inch 125-core Subwoofer

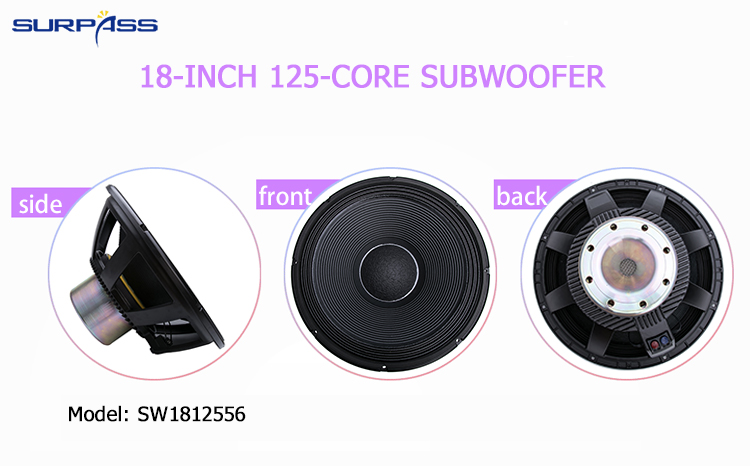

RCF Paper Basin 18-inch 125-core Subwoofer detail images:
RCF Paper Basin 18-inch 125-core Subwoofer
RCF Paper Basin 18-inch 125-core Subwoofer
