SC157552 15 inches 75-core Coaxial Horn
Imported edged paper basin 15 inches 75-core Coaxial Horn
Imported edged paper basin 15 inches 75-core Coaxial Horn
Imported edged paper basin 15 inches 75-core Coaxial Horn Specification:
Model | SC157552 |
Description | 15 inches 75-core Coaxial Horn |
Installation aperture | About 362mm |
Outer diameter | About 393mm |
Diagonal screw hole | About 377mm |
Height | About 197mm |
Magnet | 190 Integrated magnetic |
Voice Coil | High 75 core, low 75 core |
Drum paper | Imported edged paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
Minimum Impedance | 6 ohm |
Rated power | Treble 80 Watts /bass 350 Watts |
Maximum power | Treble 160 Watts /bass 700 Watts |
Sensitivity | Treble 108 dB /bass 97.5 dB (1W/1m) |
Frequency range | 47-18K Hz |
DC impedance | 5.3 ohm |
Resonant frequency | 47Hz |
Electrical Quality Factor Number | 0.51 |
Mechanical Quality Factor Value | 6.1 |
Total Quality Factor Number | 0.47 |
Effective Volume | 196 liters |
Vibration Area | 924cm2 |
Magnetic Force | 15.1Txm |
Effective Mobile Quality | 69g |
Place of Origin | Guangzhou, China |
Net Weight | About 8.8KG |
Imported edged paper basin 15 inches 75-core Coaxial Horn

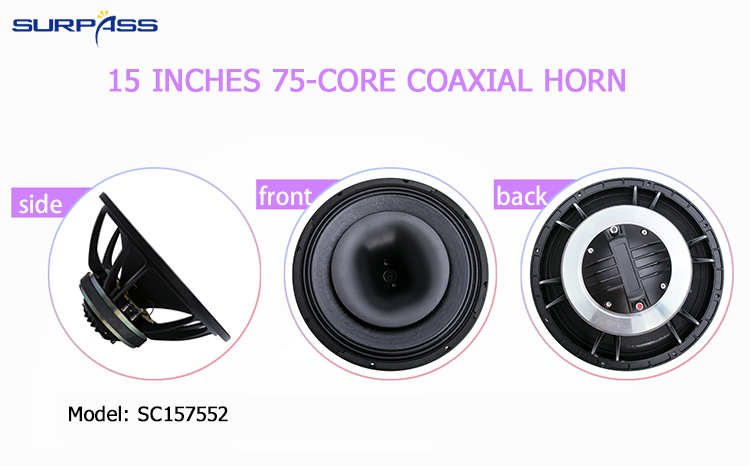

Imported edged paper basin 15 inches 75-core Coaxial Horn detail images:
Imported edged paper basin 15 inches 75-core Coaxial Horn
Imported edged paper basin 15 inches 75-core Coaxial Horn
Imported edged paper basin 15 inches 75-core Coaxial Horn
