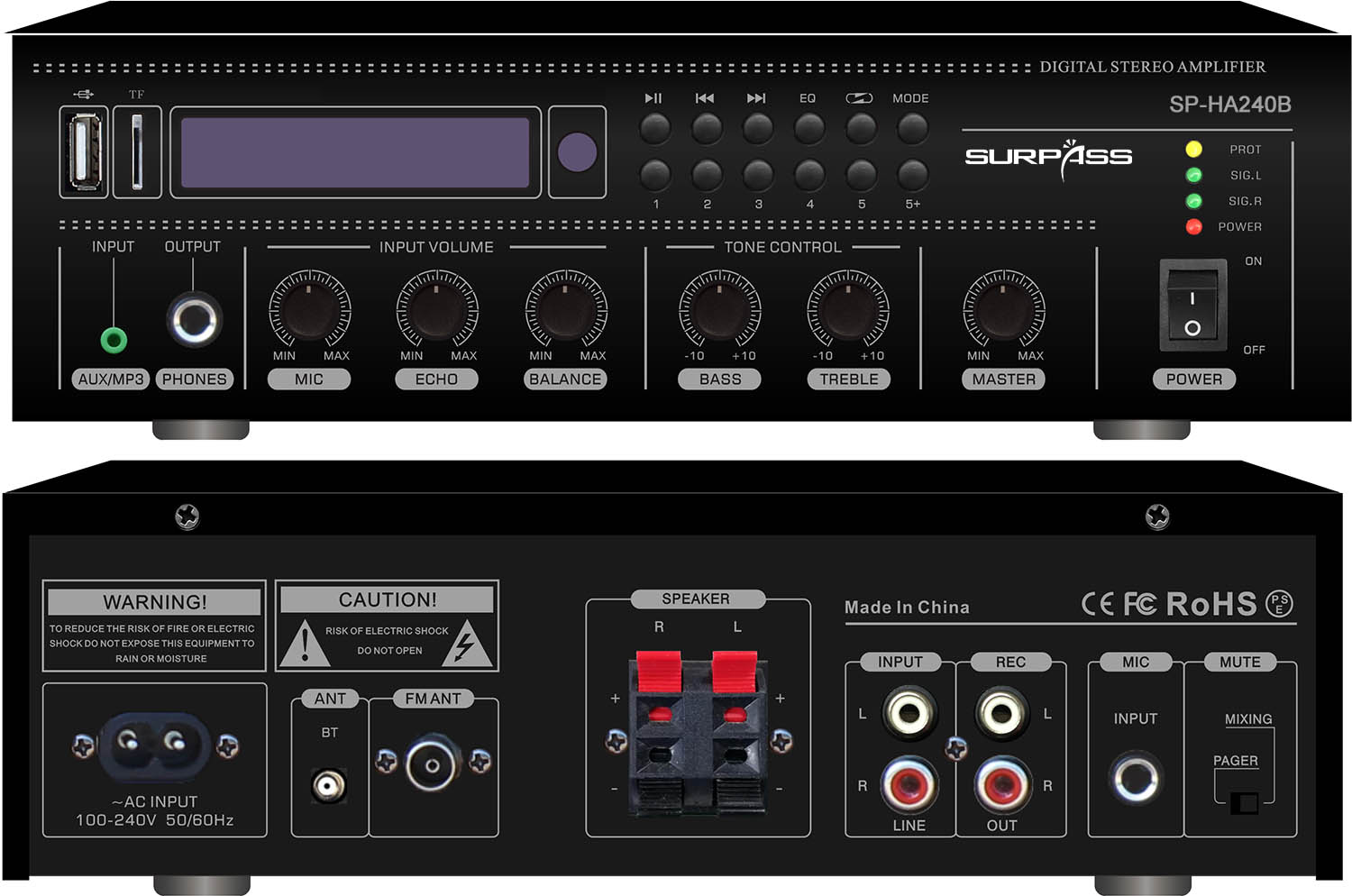

Bluetooth Hi-Fi Digital Stereo Mixer Amplifier
SP-HA240B
Description:
The commercial and professional digital stereo mixer amplifier SP-HA240B integrates pre amplifier and power amplifier with rated 2*40W @8Ω speaker output.
The SP-HA240B is tabletop mini compact size designenjoys various media sources: Bluetooth, Mp3, USB, TF, FM, Aux in, MIC, Line input, REC audio output and headphone audio output.
It has elegant appearance and high reliable performance. Ideal for Hi-Fi home theater, SPA, retail stores, coffee shops, small restaurants classrooms and so on where there is background music system
Feature:
▪ Hi-Fi Digital Stereo Mixer Amplifier with Bluetooth/Mp3/USB/TF/FM/AUX IN/MIC/RCA.
▪ Digital class-D stereo power amplifier high efficiency design up to 85%.
▪ Desktop Hi-Fi amplifier with low distortion & acoustically accurate reproduction of music.
▪ This multipurpose digital Hi-Fi audio amplifier with LCD control display.
▪ Stereo output RMS 40 watts by two channels @8Ω, speaker output 4-16ohm.
▪ With Mp3/USB/TF/FM/Bluetooth audio sources and remote control.
▪ Microphone input & RCA line in & 3.5mm AUX in
▪ Headphone/audio output & Record audio output.
▪ MIC Priority swith to two modes: pager or mixing.
▪ Mic Echo & Master volume controls, bass and treble tone controls.
▪ LED indicators for overload protection, L & R cahnnels, power.
Specification:
Model | SP-HA240B |
Description | Digital Stereo Mixer Amplifier with Multimedia |
RMS Power Output | 2*40W @8Ω |
Speaker Output | 4-16 Ohms |
Built-in Sources | Bluetooth/Mp3/USB/TF/FM/AUX IN/MIC/RCA |
Input | Microphone input & RCA line in & 3.5mm AUX in |
Output | Headphone/audio output & Record audio output |
Sensitivity | AUX/USB: 360mV, AUX/REC Line out: 420mV |
Frequency Response | 20Hz-22KHz |
THD | <0.5% |
S/N | 70dB |
Tone Control | Treble ±10dB, Bass ±10dB |
Dimension/Net Weight | 260*235*80mm/1.8KG |
High Definition Pictures:
Brochure/Data Sheet:
SP-HA240BBluetoothHiFiStereoMixerAmplifier.pdf、
Operation Manual:
