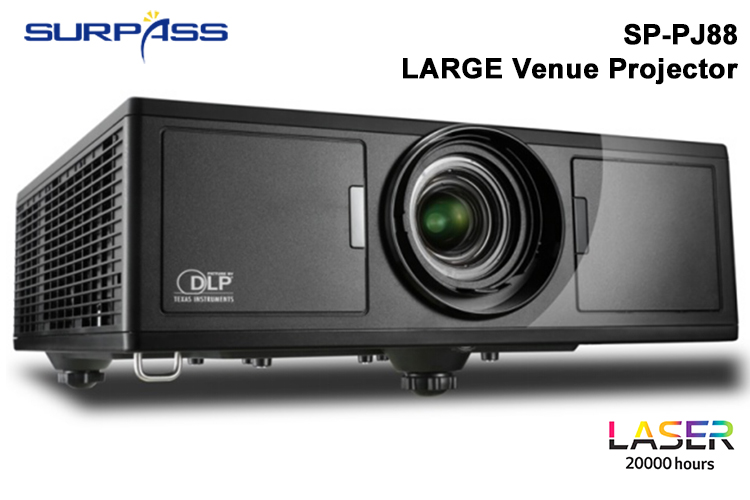

SP-PJ88 Ultra-high Brightness LARGE Venue Projector

Ultra-high Brightness LARGE Venue Projector

About Ultra-high Brightness LARGE Venue Projector

Ultimate Performance and Versatility for Large Public Venues

inProxima Large Venue Projectors feature ultra-high brightness from BlueCore Laser and HLD(PHILIPS ColorSpark High Lumen Density LED) light sources, superb image quality, and enduring performance for mass public spaces, with powerful installation flexibility for museums, stages, and gala events.

Ultra-high Brightness LARGE Venue Projector

Why choose a Laser lightsource Projector over a Lamp Projector?

**Laser Projectors provide the highest level of picture quality for presentations without the additional cost and maintenance associated with Lamp Based Projectors.

**DLP Technology for Lasting Vibrant Color...

the laser projectors are based on the absolute reliability of the 1-chip DLP design. The highly durable DLP chip can last over 100,000 hours without degradation, ensuring true-to-life colors and pristinely legible text over countless uses.

**Superior Dustproofing for Severe Conditions...

lock-and-key design hermetically seals the laser engine from dust to extend the life of the projector and to mitigate color decay.

**Enduring Reliability...

BlueCore laser is guaranteed for 20,000 hours of superior image quality and performance. The laser light source resists color decay over time, making laser projectors ideal for corporate presentations that require powerful color performance and reliable projection quality.

Ultra-high Brightness LARGE Venue Projector

• Display:

Product type LARGE Venue Projector

Projection System DLP+LASER

Display type TI 0.67" WUXGA DC3 DMD x1

Native Resolution WUXGA (1920 x 1200P)

Resolution Support Up to 4K@30Hz (3840x2160)

White Brightness (Lumens) 8,500

Color Brightness (Typical) 7,800

Contrast Ratio (dynamic) 50,000:1

COLOR DEPTH 1.07B Color (R/G/B 10bit)

Native Aspect Ratio 16:9 native,Compatible analog 4: 3

Lightsource type LASER

Light Source Life 20,000 hours

Light Source Wattage TBD

Ultra-high Brightness LARGE Venue Projector

• Optical

Throw Ratio 1.2-2.13:1

Zoom Ratio 1.8x manual zoom

Keystone Adjustment ±30 degrees vertical and horizontal

Lens manual zoom&Focus

Lens Shift H: ±10%/V: ±20%

Distance and size 30 - 500 in. / 0.76 - 13.5m

Uniformity 95%

Ultra-high Brightness LARGE Venue Projector

• Screen & Sound

Picture Mode Whiteboard, cinema, standard, user...

Projection mode Front,Rear @ Floor/Ceiling/ tabletop

Screen flip yes

Speaker 1 x10W

Sound model stereo

Surround Sound None

Ultra-high Brightness LARGE Venue Projector

•  Interface

inPut: HDMI *3, HDBaseT/3D sync port *1, VGA/Mini USB (service)/S-video/audio in/Mic in*1;USB-A (power)*2

Output: VGA out/audio out/12v trigger*1

Ultra-high Brightness LARGE Venue Projector

• HDTV Compatibility 480i, 480p, 576i, 567p, 720p, 1080i, 1080p

• Video Compatibility NTSC, PAL, SECAM, SDTV

• External dust cover Yes, Sponge, anti-static level

• 3D Compatibility Digital 3D, full type support

Ultra-high Brightness LARGE Venue Projector

• Power

Power Supply AC100 to 240V, 50 to 60 Hz

Typical Power Consumption < 480W

Standby Power Consumption < 1W

Acoustic Noise (Typ./Eco.) 29 / 27 dB (Distance ≤ 1.5m)

Operating Temperature 0~40 degrees

Ultra-high Brightness LARGE Venue Projector

• Dimension and Weight: 15.9” x 6.3” x 15.2” / 24.3 lbs

• Standard Accessories: AC power cord, VGA cable, remote control, basic user manual, warranty card, USB to Micro USB cable

• Optional Accessories:Mount, HDCast Pro, HDBaseT transmitter, 3D glasses

• OSD Language: More than 19 national languages
