SP-60TM,SP-120TM 60W,120W Mixer Amplifier with Bluetooth,USB/SD & FM
60W,120W Mixer Amplifier with Bluetooth,USB/SD & FM
Tabletop Mini Size Mixer Amplifier with Bluetooth, USB/SD & FM (60W & 120W)

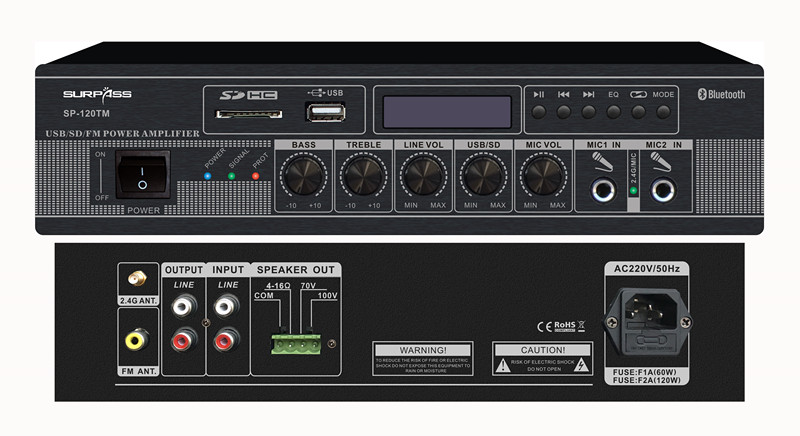

SP-60TM & SP-120TM
Description:
The Public Address (PA) rated 60W & 120W Mixer Amplifiers with Bluetooth, USB/SD & FM radio are suitable for school classroom, retail store, small shops or rooms, super market, bank, hotel background music and speech use.
It is tabletop mini compact size design integrated pre amplifier and mixer power amplifier into one 1.5U height, brushed black high-end aluminum panel and volume knob, elegant appearance, which is economy but of high reliable performance.
Its speaker outputs with 100V, 70V and low impedance 4‐16 ohms for versatile connections.
It integrates 2 microphone and one line inputs on front panel by phone jack. One line input and One line output by RCA. Independent Volume control for Mic1-2, line1, Mp3/FM, bass/treble.
Overall protection of short-circuit, overload and high temp. to avoid any damage.
Feature:
▪ Tabletop Mini compact Mixer amplifier for paging and background music system.
▪ Ideal for classroom, retail store, small shops or rooms
▪ Rate power output at 60W
▪ Built-in 100V/70V transformer technology
▪ Mp3 player with USB/SD input on front panel
▪ Built-in Bluetooth, FM radio function and digital display
▪ IR remote control for Mp3 player and FM radio
▪ Speaker output of 100V & 70V & 4-16 Ohms
▪ LED indicators for power, protect and signal
▪ 2 microphone inputs by 6.3mm phone jack on front panel
▪ Mic 1 with priority
▪ One line input and One line output by RCA
▪ Independent Volume control for Mic1-2, line1, Mp3/FM, bass/treble
▪ With short-circuit, overload and high temp protection
Optional: 120W refer to model no. SP-120TM
Specification:
Model | SP-60TM | SP-120TM |
Description | Tabletop Mini Mixer Amplifier with Bluetooth,USB/SD & FM | |
Rated Power Output | 60W | 120W |
Speaker Output | 100V & 70V & 4-16 Ohms | |
Connector | Mic1-2 by 6.3mm phone jack, Line input and line output by RCA | |
Attenuation | Microphone1-2, line 1 and Mp3/FM | |
Input Sensitivity | MIC1-2: 5-8mV, 600Ω , unbalanced by 6.3mm phone jack Line: 150-470mV, 10KΩ , unbalanced RCA | |
Output Sensitivity | AUX Output: 0.775V (0 dB); Output Adjustment Rate: <3dB, from no signal static working state to full load working state; | |
Tone Adjustment Range | BASS: 100 Hz (± 10dB), TREBLE: 12kHz (± 10dB) | |
Frequency Response | 60Hz ~ 15KHz (±3dB) | |
S/N Ratio | Line: 85 dB, MIC:> 72 dB | |
THD | < 0.5% at 1kHz, 1/3 of the rated output power | |
Cooling Method | DC12V FAN strong air cooling method | |
Protection | AC FUSEx1A(2A), short-circuit, overload and high temp protection | |
Power Supply | AC 220-240V/50-60Hz | |
Power Consumption | 84W | 168W |
Power Cord | (3 x 0.5mm²) x 1.5M (standard) | |
Internal workmanship | SMT technology, with tidy distribution and more stable performance; PCB with double-sided circuit, components with more stable performance; Using Class D Amplifier circuit, and with pure copper ring transformer, low heat, strong power, energy saving | |
Finishing | High-end aluminum panel and volume knob, 1.5U, brushed black, elegant appearance. | |
Net Weight | 4.9 KG/pcs | 5.4 KG/pcs |
Product Dimension | 72 (H) x 305 (W) x 275 (D) mm | |
Gross Weight | 6.2 KG/pcs | 7.1 KG/pcs |
Package Size | 130 (H) x 345 (W) x 345 (D) mm, 1pcs/ctn | |
