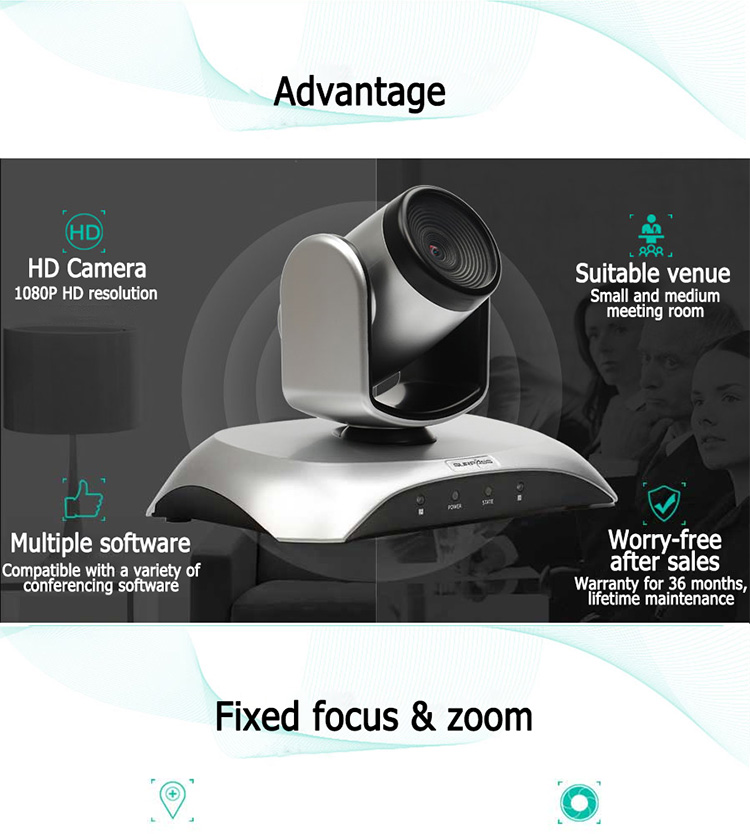

What's the Advantages of H.264 USB HD 10x Zoom 2.1 Million Pixels Video Conference Camera?

1. HD Camera: 1080P HD resolution

2. Suitable venue: Small and medium meeting room

3. Multiple software: Compatible with a variety of conferencing software

4. Worry-free after sales: Warranty for 36 months, lifetime maintenance

H.264 USB HD 10x Zoom 2.1 Million Pixels Video Conference Camera

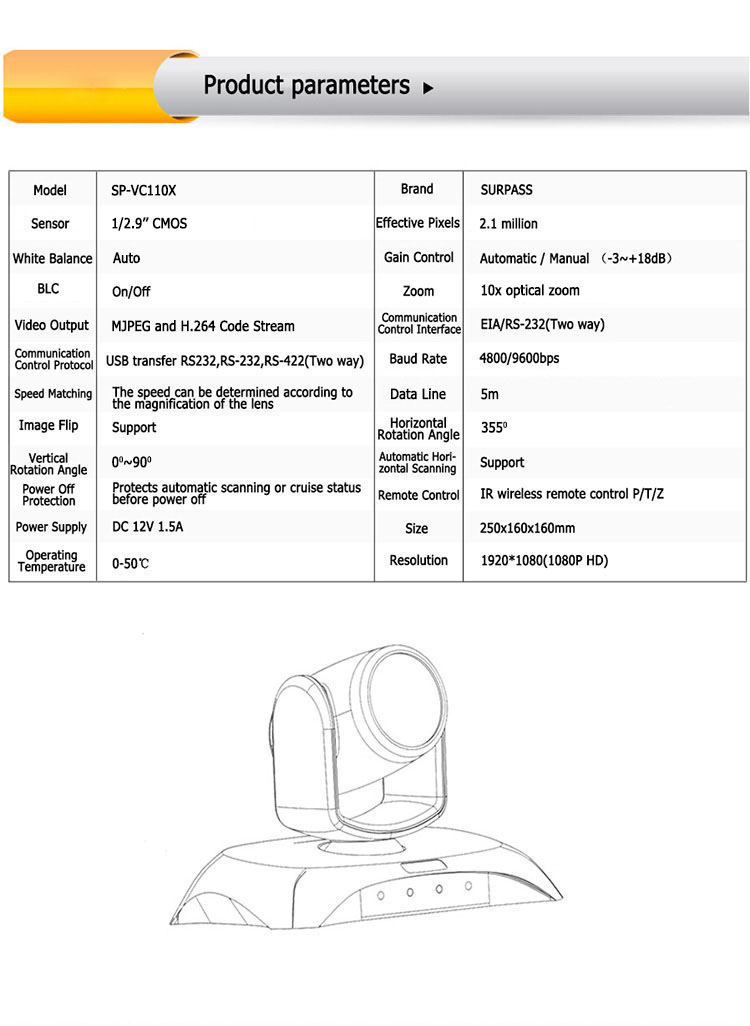

What's the Parameters of H.264 USB HD 10x Zoom 2.1 Million Pixels Video Conference Camera?

Model: SP-VC110X

Brand: SURPASS

Sensor: 1/2.9 inch CMOS SENSOR

White Balance: Automatic

BLC: On/Off

Video Output: MJPEG and H.264 Code stream

Communication Control Protocol:USB transfer RS232,RS-232,RS-422(Two way)

Speed Matching: The speed can be determined according to the magnification of the cameras

Image Flip: Support

Vertical Rotation Angle: 0 degree~90 degree

Power Off Protection: Protects automatic scanning or cruise status before power off

Power Supply: DC 12V 1.5A

Operating Temperature: 0-50℃

Effective Pixels: 2.1 million

Gain Control: automatic / manual（-3~+18dB）

Zoom: 10x optical zoom

Communication Control Interface: EIA/RS-232(Two way)

Baud rate: 4800/9600bps

Data line: 5m

Horizontal Rotation Angle: 355 degree

Automatic Horizontal Scanning: Support

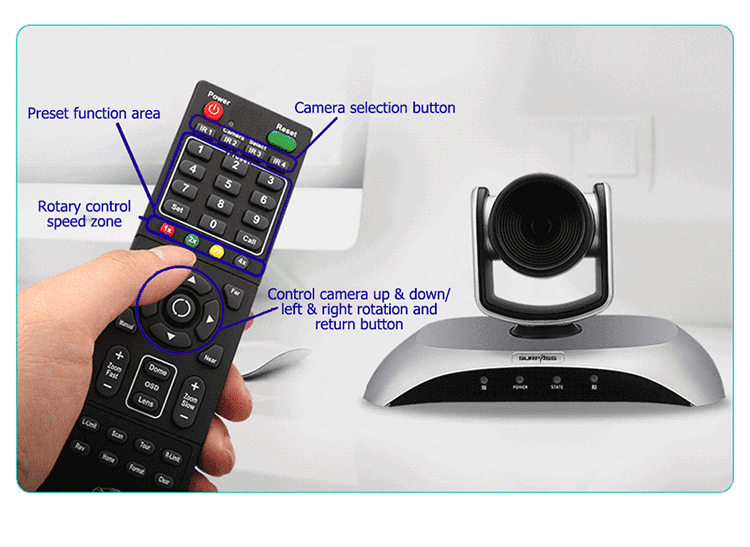

Remote Control: IR wireless remote control P/T/Z

Size: 250x160x160mm

Resolution: 1920*1080(1080P HD)

H.264 USB HD 10x Zoom 2.1 Million Pixels Video Conference Camera

How to Start H.264 USB HD 10x Zoom 2.1 Million Pixels Video Conference Camera?

No need to drive . Start a video conference in three easy steps

1. Connect the camera USB video to the computer

2. Open the computer video software

3. Make a video conference call

H.264 USB HD 10x Zoom 2.1 Million Pixels Video Conference Camera

What's the different between fixed focus and zoom camera?

Fixed focus: wide viewing angle

No deviation jitter when stopped

Suitable for panoramic views
