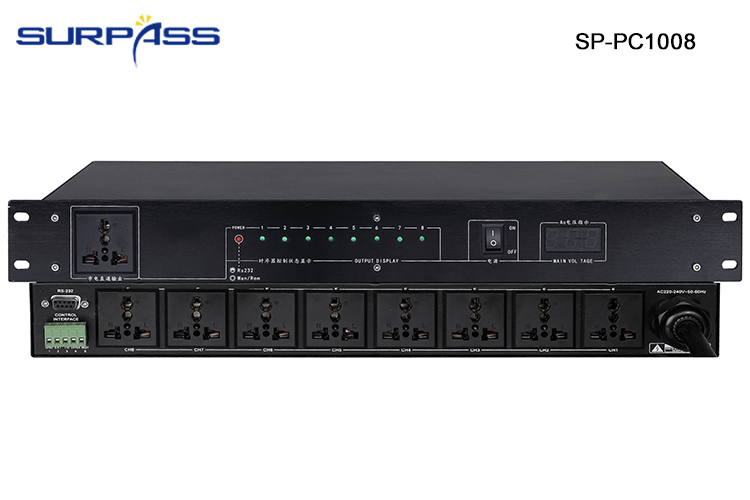

SP-PC1008 Power Sequencer

Model

SP-PC1008

Maximum input current

80A

Single maximum output current

30A

Working voltage

220V-240V/50-60Hz

Each channel power

Up to 4500w

Input and output voltages

AC Input Voltages = AC Output Voltages

Output power socket

Multipurpose socket, accord with European and American standards.8 controlled multipurpose sockets on the back panel

Socket material

Each socket is made of phosphorus copper, which is installed only after inspection

Interval time of each switch

One second, each road with a switch indicator and a safety switch button(bypass) at the back

Electric relay

Ningbo Songle Brand(Original authentic product)

Circuit board

Using 60% high purity tin, high-end shunt technology, strengthened roughening treatment

Transformer

A&C (Original authentic product)

Power wire

3*6 square power wire, wire material configuration length 1.5 m

Voltage display

Diode, digital display voltmeter

Chassis height

1.5u(Compliance with cabinet according to standard)

Switch

Rocker type switch

Lighting configuration

Configure a USB lighting interface

Online support

Yes, support 8 devices on-line at the same time. On-line port: 6.5 socket

Controlled function

Yes, each channel can be controlled independently.

Filter

Capacitor filter
