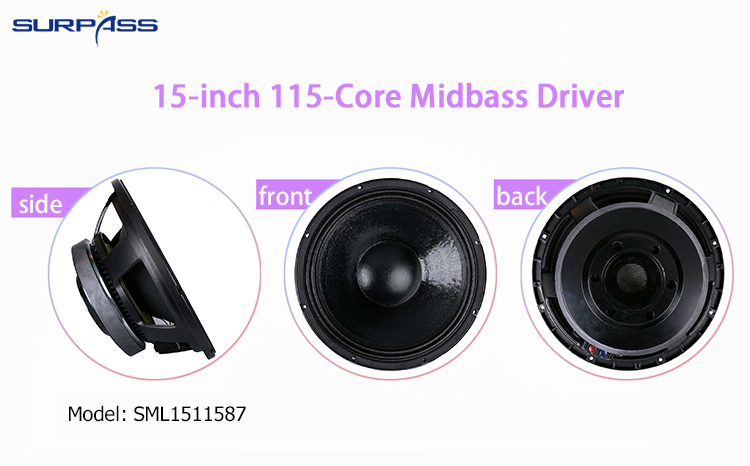

SML1511587 15-inch 115-Core Midbass Driver
Ferrite 250 magnetism 15-inch 115-Core Midbass Driver
Ferrite 250 magnetism 15-inch 115-Core Midas Driver
SML1511587 15-inch 115-Core Midbass Driver Specification:
Model | SML1511587 |
Description | 15-inch 115-core midbass speaker |
Installation aperture | About 356mm |
Diagonal screw hole | About 378mm |
Outer Diameter | About 395mm |
Height | About 170mm |
Magnet material | Ferrite 250 magnetism |
Voice coil | 115-core Copper clad aluminium flat wire |
Cone paper | Thailand GIP paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 800 Watts |
Maximum power | 1600 Watts |
Sensitivity | 96 dB/1W/1m |
Frequency range | 30-2K Hz |
Resonant frequency | 48Hz |
Electrical Quality Factor Number | 0.37 |
Mechanical Quality Factor Value | 10.4 |
Total Quality Factor Number | 0.36 |
Effective Volume | 84.5 liters |
Vibration Area | 889 cm2 |
Magnetic Force | 25.2 Txm |
Effective Mobile Quality | 143g |
Place of Origin | Guangzhou, China |
Net Weight | About 15KG (No packaging) |
