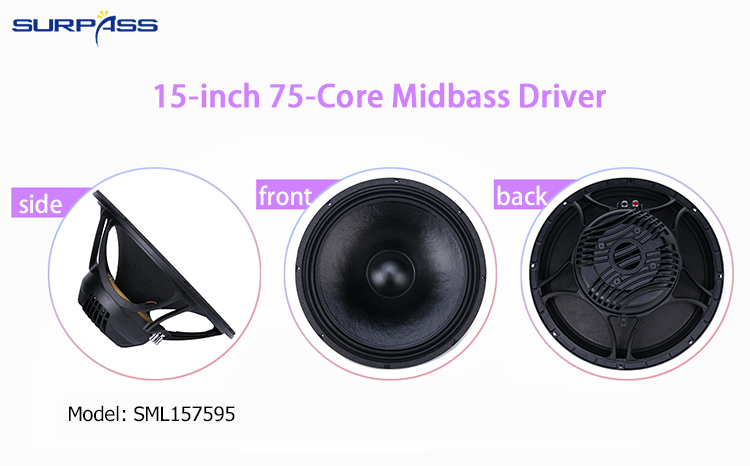

SML157595 15-inch 75-Core Midbass Driver
Neodymium inner magnetism 15-inch 75-Core Midbass Driver
Neodymium inner magnetism 15-inch 75-Core Midas Driver
SML157595 15-inch 75-Core Midbass Driver Specification:
Model | SML157595 |
Description | 15-inch 75-core midbass speaker |
Installation aperture | About 358mm |
Diagonal screw hole | About 375mm |
Outer Diameter | About 388mm |
Height | About 173mm |
Magnet material | Neodymium inner magnetism |
Voice coil | 75-core Copper clad aluminium internal and external winding |
Cone paper | Import paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 98 dB/1W/1m |
Frequency range | 35-4K Hz |
Resonant frequency | 37Hz |
Electrical Quality Factor Number | 0.33 |
Mechanical Quality Factor Value | 7.22 |
Total Quality Factor Number | 0.32 |
Effective Volume | 168 liters |
Vibration Area | 892 cm2 |
Magnetic Force | 21 Txm |
Effective Mobile Quality | 120g |
Place of Origin | Guangzhou, China |
Net Weight | About 4.5KG (No packaging) |
