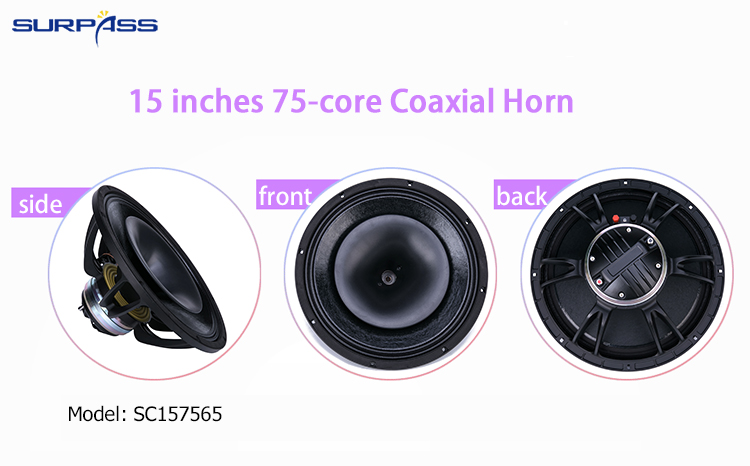

SC157565 15 inches 75-core Coaxial Horn
High and low 138 magnetism 15 inches 75-core Coaxial Horn
High and low 138 magnetism 15 inches 75-core Coaxial Horn
SC157565 15 inches 75-core Coaxial Horn Specification:
Model | SC157565 |
Description | 15 inches 75-core Coaxial Speaker |
Installation aperture | About 357mm |
Outer diameter | About 393mm |
Diagonal screw hole | About 375mm |
Height | About 190mm |
Magnet | High 138 magnetism, low 138 magnetism |
Voice Coil | High 75 core, low 75 core |
Drum paper | Imported 7DF paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
Minimum Impedance | 6 ohm |
AES Rated Power | Treble 80 Watts /bass 350 Watts |
Maximum power | Treble 160 Watts /bass 700 Watts |
Sensitivity | Treble 98 dB /bass 108dB (1W/1m) |
Frequency range | 40-18KHz |
Resonant frequency | 42Hz |
Electrical Quality Factor Number | 0.3 |
Mechanical Quality Factor Value | 5.8 |
Total Quality Factor Number | 0.28 |
Effective Volume | 246 liters |
Vibration Area | 845cm2 |
Magnetic Force | 18.8Txm |
Effective Mobile Quality | 82g |
Place of Origin | Guangzhou, China |
Net Weight | About 5.8KG (No packaging) |
SC157565 15 inches 75-core Coaxial Horn Features:
1. Full tone, exquisite and rich
Special imported paper basin, strong and durable, more optimized handling of the horn's high-frequency and low-frequency combination, so that the tweeter more imaginative.
2. High Quality Simple Connection Column
The use of convenient and high-quality terminals can effectively reduce the vibration and expansion of the magnetic field and reduce the distortion of the magnetic field.
3. Love music, impeccable
Designers and acoustics experts create professional speakers that focus on acoustic performance, bringing you two enjoyments of vision and hearing
