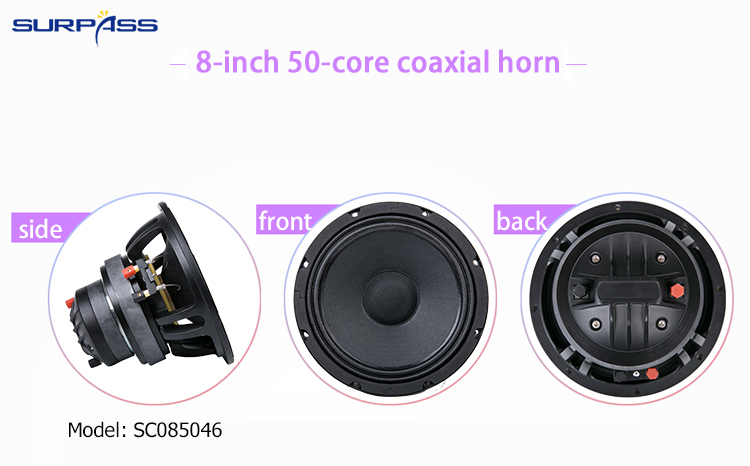

SC085046 8-inch 50-core coaxial horn
Ferromagnetic ring 8-inch 50-core coaxial horn
Ferromagnetic ring 8-inch 50-core coaxial horn
SC085046 8-inch 50-core coaxial horn Specification:
Model | SC085046 |
Description | 8-inch 50-core coaxial horn |
Installation aperture | About 210mm |
Open hole diameter | About 183mm |
Height | About 111.7mm |
Magnet | Ferromagnetic ring |
Frame material | aluminum |
Rated Impedance | 8 ohm |
Minimum Impedance | Treble 6.3 ohm /bass 6.6 ohm |
AES Rated Power | Treble 15 Watts /bass 250 Watts |
Maximum power | Treble 30 Watts /bass 500 Watts |
Sensitivity | Treble 104 dB /bass 94 dB (1W/1m) |

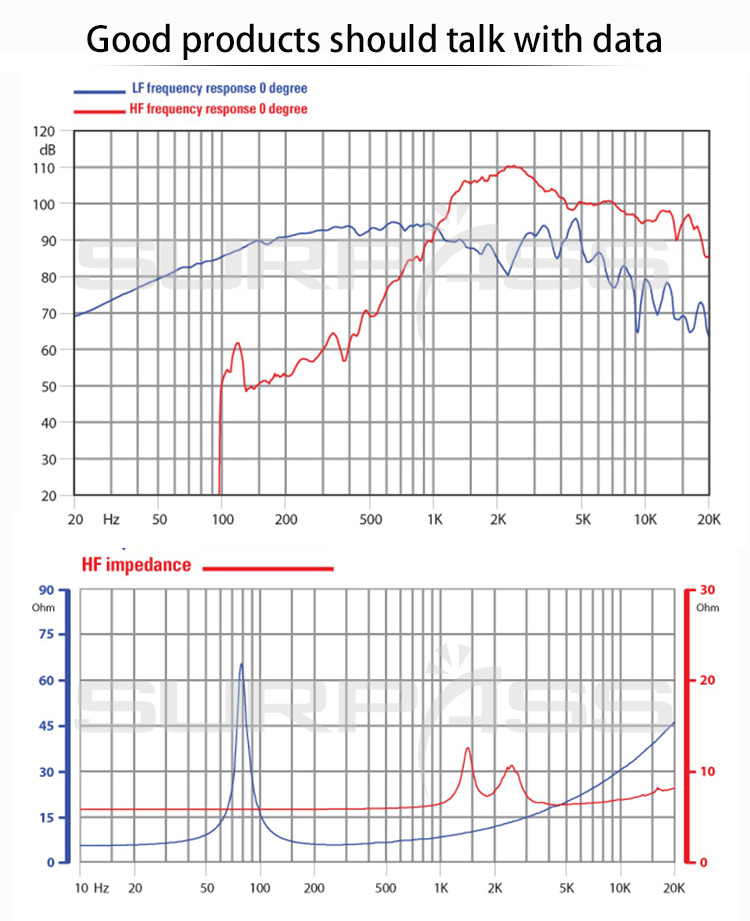

Frequency range | Treble 15-18K Hz / bass 75-4K Hz |
Resonant frequency | 76Hz |
Electrical Quality Factor Number | 0.43 |
Mechanical Quality Factor Value | 9.5 |
Total Quality Factor Number | 0.42 |
Effective Volume | 11.7dm3 |
Vibration Area | 205cm2 |
Magnetic Force | 11.6 Txm |
Effective Mobile Quality | 20.6g |
Place of Origin | Guangzhou, China |
Net Weight | About 4.3KG (No packaging) |
SC085046 8-inch 50-core coaxial horn Features:
1. Coaxial Horn Brand Sound Quality
Choose large heat dissipation constant temperature magnetron technology, sound performance is clearer
2. fine workmanship material is durable
The bullet wave gap between the speaker basin and the coil is large, the high-pitch explosion is strong enough, and the instantaneous explosion can cushion the resistance
3. High transmission efficiency and excellent analytical power
High quality detail analysis, whether rock or pop or Lyric music, can bring you high fidelity sound effect
4. The tone is clear and full
Neodymium magnetic material, Magnetism is better than ordinary magnets, there are many advantages to make the sound smooth, calm, soft and pleasant
