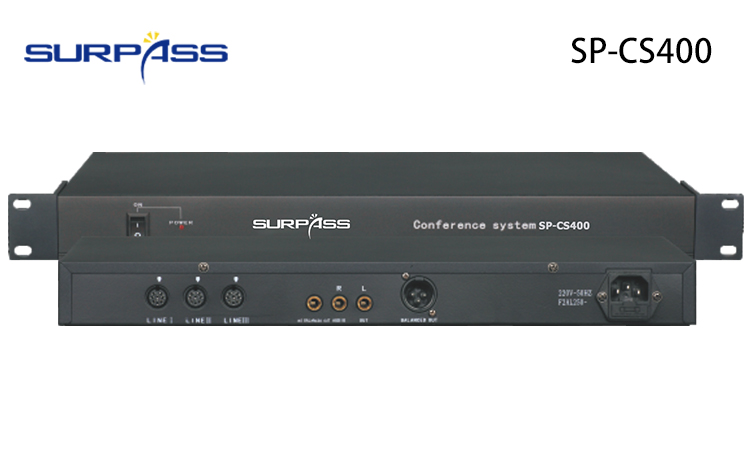

SP-CS400 Conference System Main Unit

Conference System Main Unit Equipped With Three Groups of 8P-DIN Interface

Conference System Main Unit Equipped With Three Groups of 8P-DIN Interface

SP-CS400 Conference System Main Unit Features:

1. Designed accordance to ISO and IEC 914 standards

2. Main unit can support 70 units delegate and chairman microphone, it could be extend to support 500 units microphone with extension power unit

3. Equipped with three groups of 8P-DIN interface for system connection



SP-CS400 Conference System Main Unit Specification:

Model

SP-CS400

Power supply

AC110V/240V,  50Hz~60Hz

Consumption rating

100W

Color

Black

N.W

3.3kg

Audio output

RCAx2, XLRx1, φ6.3x1

System connection

8-PIN DINx3

Dimension(mm)

483x240x45(19’’/1U)

Place of Origin

Guangzhou, China

2019/04/02/articles/063821681.jpg





High Definition Pictures：

Brochure/Data Sheet：

Operation Manual：
