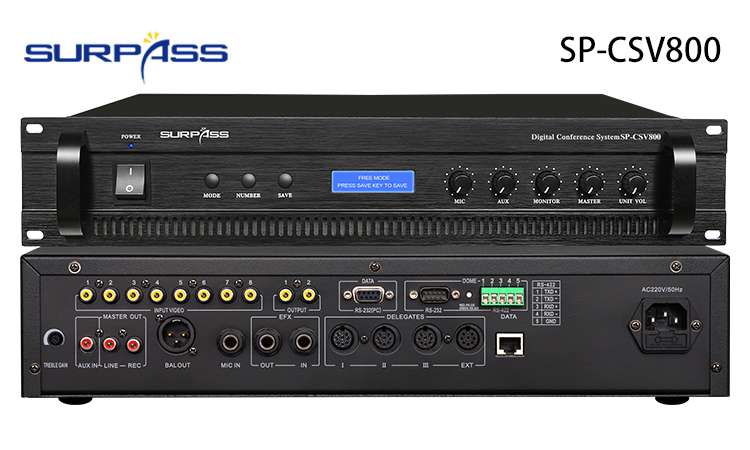

SP-CSV800 Conference System Main Unit

Conference System Main Unit Built-in Video Voting Processor

SP-CSV800 Conference System Main Unit Features:

1. Designed accordance to IS0 and IEC914 standards.

2. Main unit can support 60 units delegate and chairman microphone, it could be extend to support 250 units microphone with extension power unit

3. Equipped with four groups of 8P-DIN interface for system connection

4. With the port for telephone interface input, telephone meeting is available with telephone coincidence

5. Build-in monitor loudspeaker

6. Built-in video voting processor

7. Main unit has following features when work without computer

    A. LCD display the working mode on the front panel

    B. Support conference work mode: Free, FIFO(1-9 microphone unit). Limit(1-9 microphone unit)

8. Main unit has following features when work with computer and other equipments

    A. Manage the meeting with software, support double screen display

    B. Voting function (yes, no abstain)

    C. Electing function(single-ballot and Multiple-ballot)

    D. Audience response(100, 75, 50, 25.0)

    E. Video camera auto-track function

    F. Support following discuss work mode: Free, FIFO(1-9 microphone unit),Limit(1-9 microphone unit)

9. Connection:

   A. 1 pcs 13m main cable with 8PIN plugs

   B. 8 PIN socket for system connection

SP-CSV800 Conference System Main Unit Specification:
