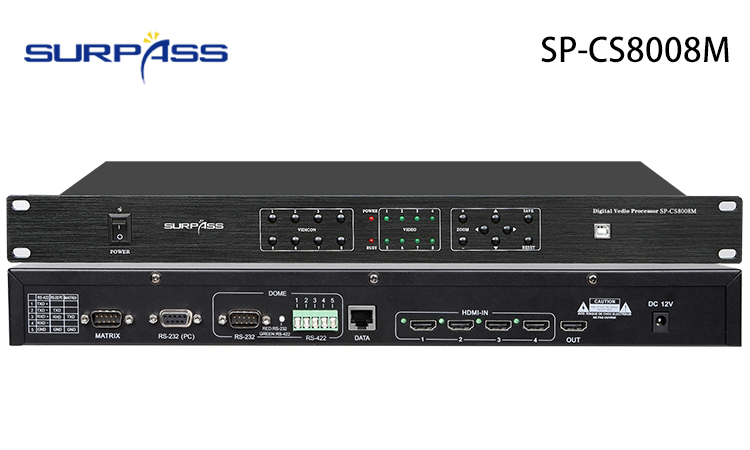

SP-CS8008M Conference System Video Procssor

Conference System Video Procssor With 250 Video Camera Auto-track Control Points

SP-CS8008M Conference System Video Procssor Describtion:

SURPASS Conference System can be connected to an automatic video tracking system. For video tracking purposes, the video processor or software control can set camera presets for every conference microphone. If the conference microphone is switched on, video tracking system will automatically find the appropriate preset and focus on the speaker. The view of the speaker will be display on large screen or other display devices. The automatic video tracking system is compatible with several kinds of video signals and operates automatic video switching. The video tracking system is composed of video switcher, button board and high-speed dome camera.

SP-CS8008M Conference System Video Procssor Features:

1. Built-in video switching matrixes (8 input, 2 output).

2. 250 video camera auto-track control points. Multi-machine cascade.

3. Support Pelco-d and VISCA protocol (pelco-D, Baud Rate: 9600, VISCA, Baud Rate: 9600).

4. The processor can communicate with the equipments by RS232/RS 422 interface, such as computer or video switching matrixes.

5. High speed dome follows the location for last opening of all speaking representative, when the microphone which opened last was closed, the dome will follows back the last following camera spot, and when all the speaking representative microphone were closed, the dome will automatically moves back to the standby video

home position.

6. When without the computer, set the camera spot advanced through pressing the button at the front pane processor, and also set by the IR remote controller.
