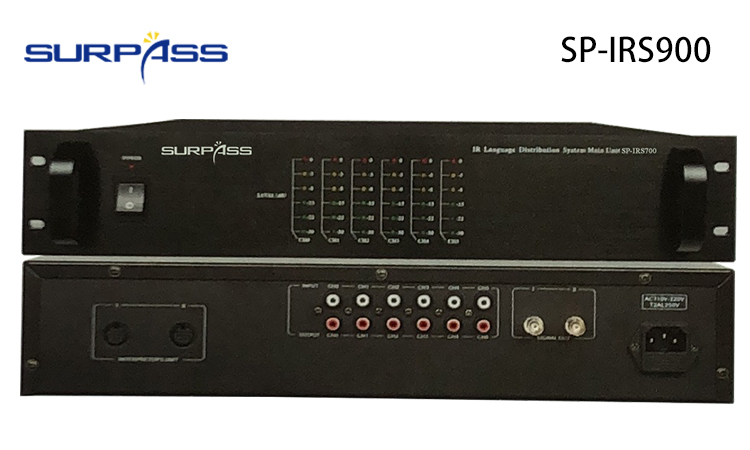

SP-IRS900 IR Transmitter Unit
IR Transmitter Unit Suitable For Different Conference Hall
IR Transmitter Unit Suitable For Different Conference Hall
SP-IRS900 IR Transmitter Unit Features:
1. High security, prevent external interference
2. Suitable for different conference hall
3. Automatic level control function(ALC)
4. No disturb under daylight lamp
5. Easy to operate and save in project cost
6. With the most advanced technology
7. Elegant configuration in accordance to ergonomics
8. Input channel direct function
9. Installed in a 19-inch frame
SP-IRS900 IR Transmitter Unit Specification:
Model | SP-IRS900 |
Modulation mode | FM |
Frequency synthesis | Digital PLL |
Frequency band | 1.7-4.0NHz |
Frequency response unit | 100HZ-14KHZ |
Frequency stability | 10ppm |
Pre-emphasis | 75 μ sec. |
Distortion at 1 KHZ | <0.5% |
Channel separation | >70dB |
RF output power level | 700mV |
RF output impedance | 50 ohms |
Input impedance | 18k ohms |
Max. input power level | 2V |
AGC range | 30dB |
S/N ratio | >75dB |
Power consumption | 40W |
Power Supply | AC110V/240V, 50Hz~60Hz |
Dimension(mm) | 483x355x89 |
N.W | 4.5kg |
Place of Origin | Guangzhou, China |
