SP-PJ800A/SP-PJ800 SMART theater Projector
Android System Theater Projector
Android System Theater Projector
SP-PJ800 Portable Smart Android Projector Smart Theater Projector
720P Portable Projector
Main Chip: MstarTM/V56 Chip
Projection System: LCD + LED
LCD Panel & size: BOE® ,4.0 inches
Native Resolution: WXGA/1280x720P
White Brightness (Lumens): 2,500
Color Brightness (Typical): 1,300
Audio (Stereo Speakers) :1 x5Watt
Use's environment: Dark room
Lightsource type: white LED
Light Source Life: 50,000 Hrs
Light Source Wattage: 50 Watt
Typical Power Consumption: ≤60 Watt
AC Power Supply: AC100~240V, 50~60Hz
DC Power type: DC12V, 5A, Adapter
Dimensions (W x H x D): 190*160*70 mm
Net Weight (Kg/ lbs ): 1.12kg (2.46 lbs)
Product certification: EMC/LVD, ROSH, FCC,BIS
Interface (I/O):
PC(D-Sub) x 1/USB Port x 2/HDMI x 1/Audio out x 1/Video in x 1/DC Port in x 1;
TV tuner Optional
Portable Smart Android Projector Smart Theater Projector
SP-PJ800A Portable Smart Android Projector Smart Theater Projector
Android Chip**: Amlogic/S905X@1G+8G
Main Chip: MstarTM/V56 Chip
Projection System: LCD + LED
LCD Panel & size: BOE® ,4.0 inches
Native Resolution: WXGA/1280x720P
White Brightness (Lumens): 2,500
Color Brightness (Typical): 1,300
Audio (Stereo Speakers): 1 x5Watt
Use's environment: Dark room
Lightsource type: white LED
Light Source Life: 50,000 Hrs
Light Source Wattage: 50 Watt
Typical Power Consumption: ≤60 Watt
AC Power Supply: AC100~240V, 50~60Hz
DC Power type: DC12V, 5A, Adapter
Dimensions (W x H x D): 190*160*70 mm
Net Weight (Kg/lbs ): 1.12kg (2.46 lbs)
Product certification: EMC/LVD, ROSH, FCC
Interface (I/O):
PC(D-Sub) x 1 / USB Port x 2/HDMI x 1/Audio out x 1/Video in x 1/DC Port in x 1
Tv tuner Optional
Portable Smart Android Projector Smart Theater Projector
SP-PJ800A SMART theater Projector Highlights:
• Portable size Industry's first 1280*800PIXELS physical resolution
• 4K resolution video decoding based on Amlogic S905X

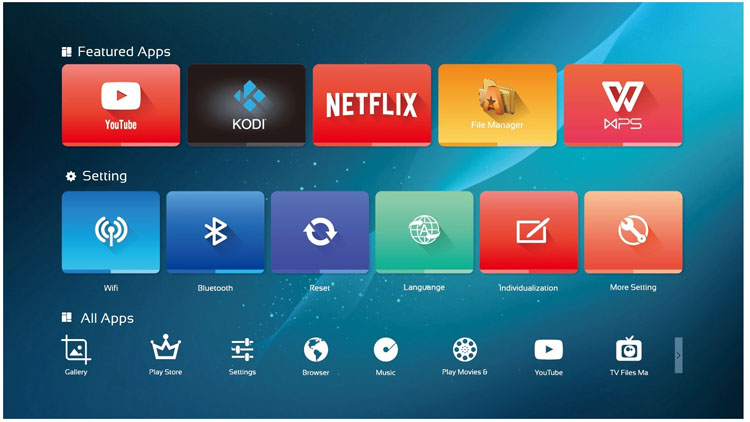

• More personalise Unique Android User Interface
• Android system support system wallpaper flexible replacement
• Unique industrial design for Game projector Similar to XBOX
Portable Smart Android Projector Smart Theater Projector
SP-PJ800A SMART theater Projector Android configuration(S905X chip compatibility):
Android Version: 6.01 OS
Chipset Manufacturer/model:Amlogic S905X
CPU Processor: Quad core ARM Cortex-A53 CPU and Penta-core ARM Mali-450 GPU
Maximum frequency speed: 2.0GHZ
RAM:1G byte DDR / ROM(Internal Storage):8G byte
Maximum resolution: 4K x 2K
Wifi Spec: 802.11 b/g ; Bluetooth Spec: 4.0
Ethernet: with RJ45(network) Port
Android Launcher Customized
Easy by Google play store, any APK online install
Portable Smart Android Projector Smart Theater Projector
SP-PJ800A/SP-PJ800 SMART theater Projector Specification:
Model | SP-PJ800A/SP-PJ800 |
Product Type | SMART theater Projector |
Configuration type | android version 6.01 OS |
Hardware main chip | MStar V69 + Amlogic S905X |
Physical resolution | HD Ready / 1280x800Pixels |
Lamp Life and Type | LED light source,above 30,000HRS |
LED Light Output | 2800ansi Lumens Light efficiency utilization |
Peak Brightness | 270 lux |
Contrast Ratio | 2200:1/static,10,000:1/Dynamic |
Max. Supported Resolution | 4K x 2K @60Hz / Based on Android mode |
Aspect Ratio | native 16:9, compatible 4:3 |
Display Type | a Single LCD Panel Hybrid LED Optical Engine |
LCD Size | 4.0" Liquid Crystal Display |
Projection mode | Front & Rear,support Ceiling by Hoisting(M6 x1) |
Throw Ratio | 1.38:1 (200cm@64inch; 250cm@81inch; 300cm@100inch; 356cm@120inch; 400cm@134inch) |
Image Size (Diagonal) | 28"~180" |
Projection Distance | 1.2~5.5m |
Best screen size/Distance | 60"~100" / 2.2~3.0m |
Projection mode | Front (Placed on the table); Rear & Ceiling |
Support screen flip | up and down,left and right |
Projection Lens | Manual lens / focus |
Keystone Correction | Vertical: +/-15° / manual focus |
I.R (remote control receiver) | x1 |
Speakers | 8Ω,5W x1 |
Video Compatibility | SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L) |
I/O Connection Ports | VGA, DC in, AV in /audio Out x1; HDMI x1; USB x2 |
OSD Menu language | 23 country Language (Czech;Danis;German;English;Spanish;Greek;French;Croatian;Italian; Hungarian;Dutch;Norwegian;Polish;Portuguese;Russian;Romanian; Slovene;Serbian;Finnish;Swedish;Bulgarian;Slovak;Chinese_Sim.. ) |
USB multimedia format (Photo,Music,Movie,E-BOOK) | • Movie format support :MPG,AV,TS,MOV,MKV,DAT,MP4,VOB /1080P Level • Audio format :MP3,WMA,AAC,AC3,M4a(aac)… • Picture format: JPG,JPEG,BMP,GIF,PNG,GIF formats picture browsing |
Dimensions (W x D x H) | 19 x 16 x 7 cm |
Weight (N.W/ Packing G.W) | 0.9 kg / 1.38 kg |
Packing size (W x D x H) | 29 x 20 x 12 cm |
Packing specifications | 1PCS/CTN; 10CTNS/BOX |
Noise Level | 32dB (Acceptable range) |
Power | Supply: AC 90-240V, 50/60Hz, DC IN 12V@5A Adapter, Consumption: 60W |
Standard Accessories | Quick Start Guide,Remote Controller,Power adapter,C80 with lens Cover |
Warranty | 3 Years projector |
Software extensions | Support Google market,APK install |
DLNA,Miracast protocol | by available online or local push for Wireless projection |
Communication Software | Support Skype/QQ/MSN/GTALK(dependent on software APK) |
Office Software | WORD/EXCEL/PDF(APK rely on third-party software) |
wireless connect | Smart devices (no need cable),WIFI Wireless Push (EZCast/Miracast or by Airplay) |
Mouse/ Keyboard | Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle |
Place of Origin | Guangzhou, China |
Portable Smart Android Projector Smart Theater Projector
SP-PJ800A SMART theater Projector Android Language List(56 country Language):
English (New Zealand);EURO English (Irish, Euro);EURO French (France, Euro);EURO Italian (Italian, Euro);EURO Spanish (Euro, Spain);Estonian (Estonia);EURO Devon (Germany, Euro);EURO Dutch (Netherlands, Euro);Czech Republic (Czech Republic);Polish (Poland);Japanese (Japan);Chinese (Taiwan);Chinese (China);Chinese (Hong Kong);Russian (Russia);Korean (South Korea);Macedonian (Macedonian);Spanish (Nicaragua);Danish (Danish);Greek (Greek);Turkish (Turkey);Portuguese ;Swedish (Swedish);Bulgarian (Bulgaria);EURO Catalan (Spain, Euro);English (UK);EURO Finnish (Finland, Euro);EURO French (Luxembourg, Euro);Croatian (Croatian);Hungarian (Hungary);Hebrew (Israel);Lithuanian (Lithuanian);Latvian (Lato) (Latvia);Romanian (Romanian);Slovakia (Slovakia);Slovenian (Slovenia);Asian language;Ukrainian (Ukrainian);Thai (Thailand);Arabic (Egypt);Estonian (Estonia);Thai (Thailand);Swedish (Swedish);Macedonian (Macedonian);Chinese (Taiwan);EURO French (Luxembourg, Euro);English (New Zealand);Arabic (Tunisia);French (Canada);Japanese (Japan);Korean (South Korea);Macedonian (Macedonian);Sebosi-Croatian (Yugoslavia);Macedonian (Macedonian);Arabic (Yemen);Icelandic (Iceland)
Portable Smart Android Projector Smart Theater Projector
SP-PJ800A SMART theater Projector Video/Picture Encoding:
Independent JPEG and H.264 encoder with configurable Performance/bit-rate
JPEG image encoding
H.264 video encoding up to 1080P@60fps with Low latency
Portable Smart Android Projector Smart Theater Projector
SP-PJ800A SMART theater Projector Video/Picture Decoding(Maximum 4K decoding):
VP9 Profile-2 up to 4Kx2K@60Hz
H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps / H2.64 AVC HP@L5.1 up to 4Kx2K@30fps
H.264MVC up to 1080P@60fps
MPEG-4 ASP@L5 up to 1080P@60fps / AVS-P16(AVS+)/AVS-P2 Jizhun Profile up to 1080P@60fps
MPEG-2 MP/HL up to 1080P@60fps(ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps(ISO-11172) / RealVideo 8/9/10 up to 1080P@60fps / WebM up to VGA/640x480P
Multiple Language and Multiple format sub-title videl Support / MJPEG and JPEG unlimited Pixel resolution decoding(ISO/IEC-10918)
Support JPEG thumbnail,scaling,rotation and transition effects
Supports:MKV,WMV,MPG,MPEG,DAT,AVI,ISO,MP4,RM and JPGfile formats.
