SP-PW215H Intelligent Home Video and Audio System

Intelligent Home Video and Audio System

Smart Home Audio Mini Touch Key Bluetooth Wall Amplifier Hardware Parameters:
● Power: AC110V-250V(50HZ)
● Impedance: 4-8Ω
● Output Power: 2x15W
● Audio S/N Ratio: ≥98dB
● Frequency Response: 20-20KHz
● Infrared Remote Control Distance: 10M
● Bluetooth Distance: 10M

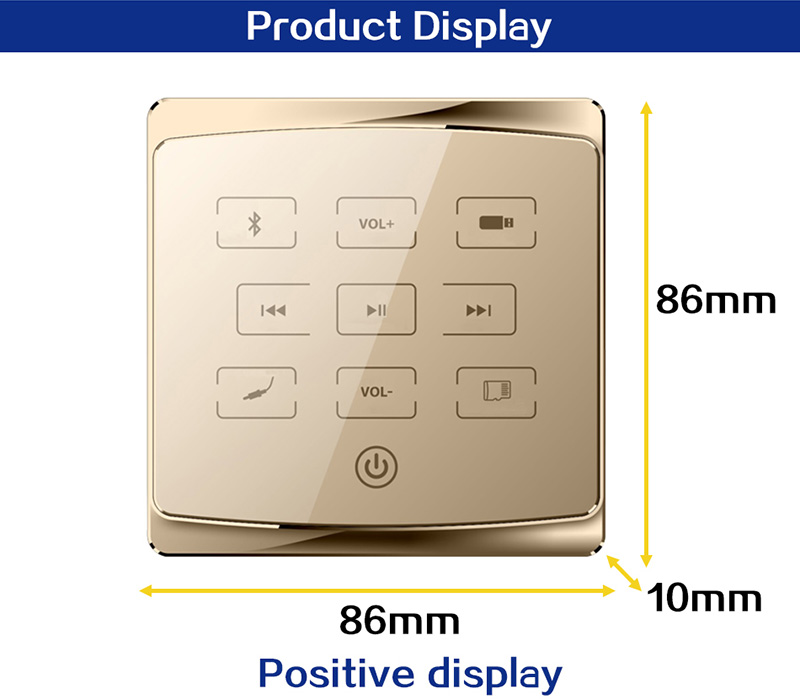

● Product Size: 86*86*10mm
● Installation: 86 Standard cable box

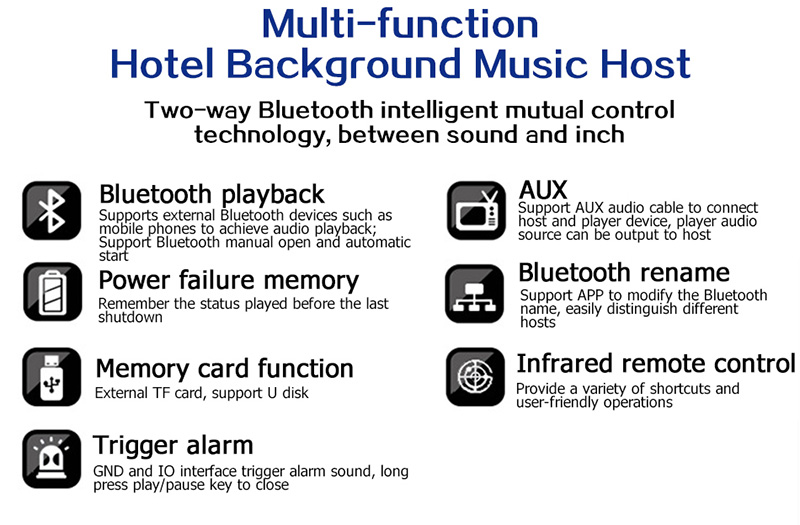

SP-PW215H Intelligent Home Video and Audio System Features:

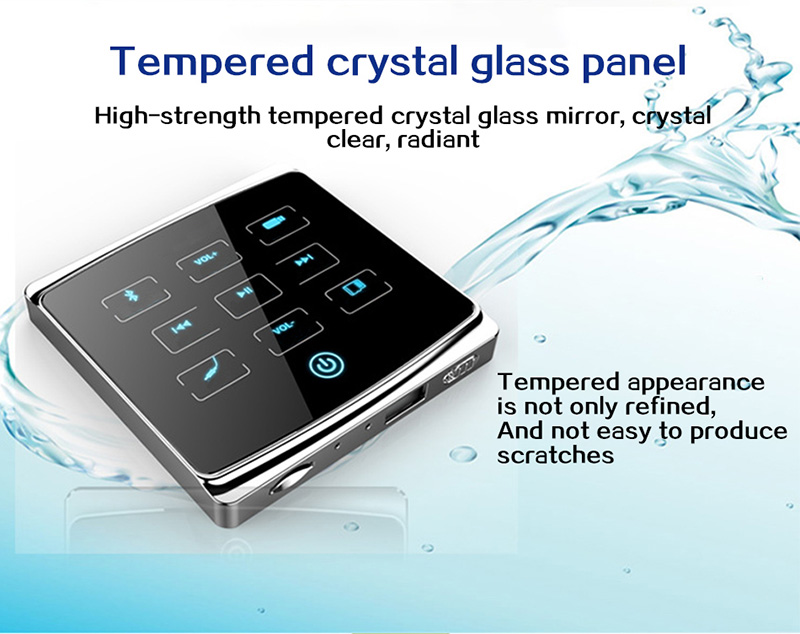

1. 2.5D process glass with sandblasting frame.

2. Screen saver: Screen saver displays calendar, time, week.

3. Supporting Automatically Playing Songs on Power.

4. Power-off Memory Function: Memorizing the Play State before the Last Shutdown.

5. Sound effect function: support ordinary, rock, classical, jazz, pop and other sound effects.

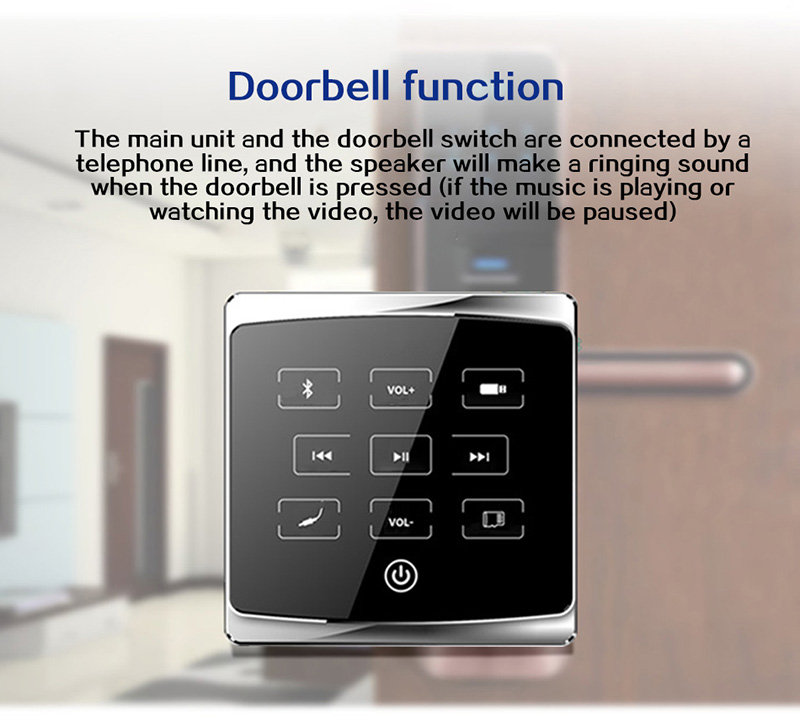

6. Support trigger doorbell function, DB+GND.

7. Support Linkage Trigger Playing Music, GND+ trigger play.

8. Support linkage trigger boot, GND + trigger play, expenditure trigger shutdown, GND + timing output.

9. Support timing output level signal interacting with other devices, GND + timing output.

10. Timing Switch-on, Self-timed Start-up Song.

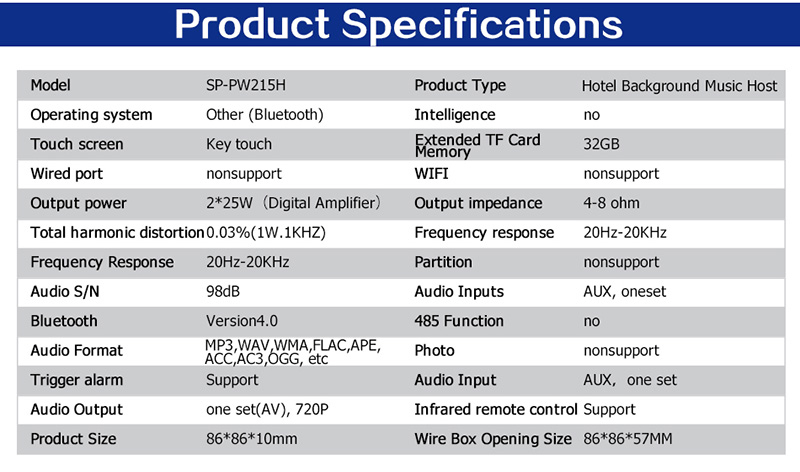

SP-N86A Intelligent Home Video and Audio System Specification:

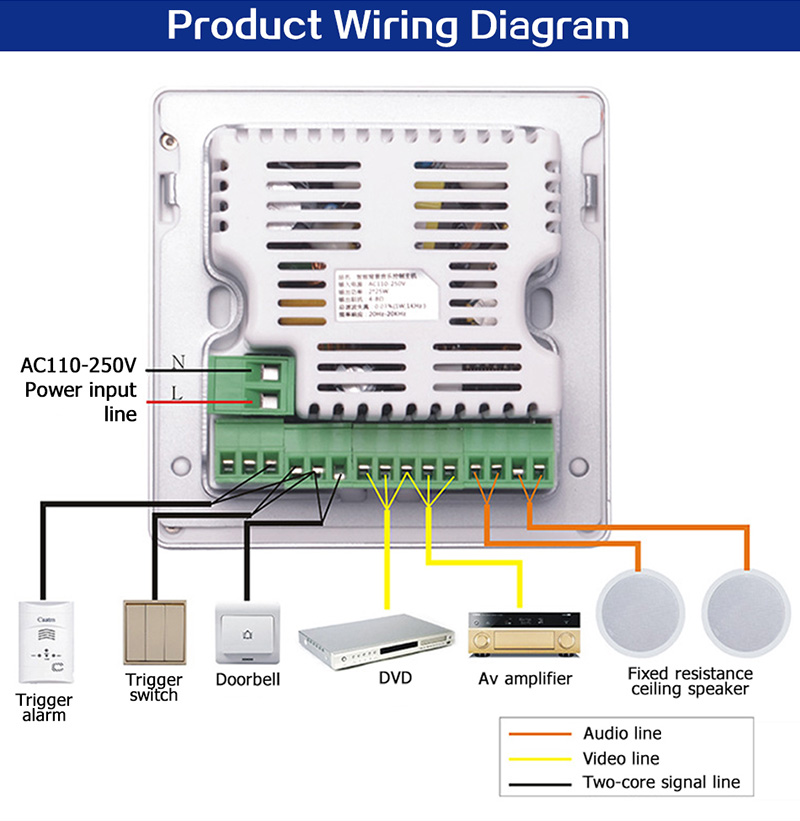

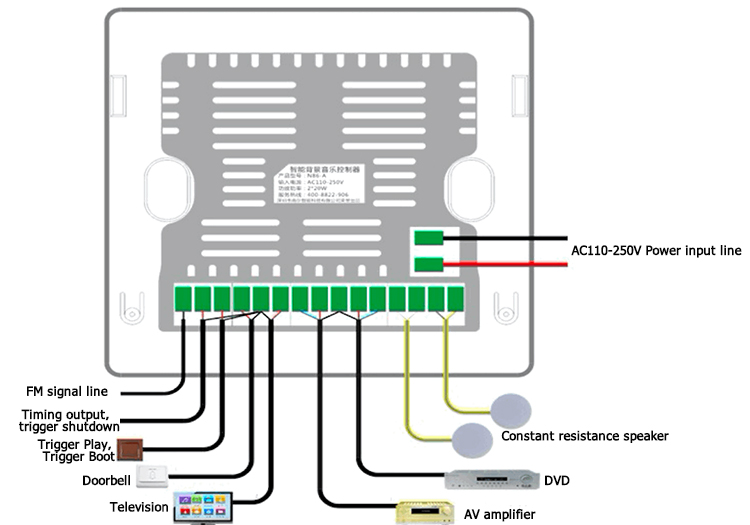

SP-N86A Intelligent Home Video and Audio System Installation wiring diagram:
