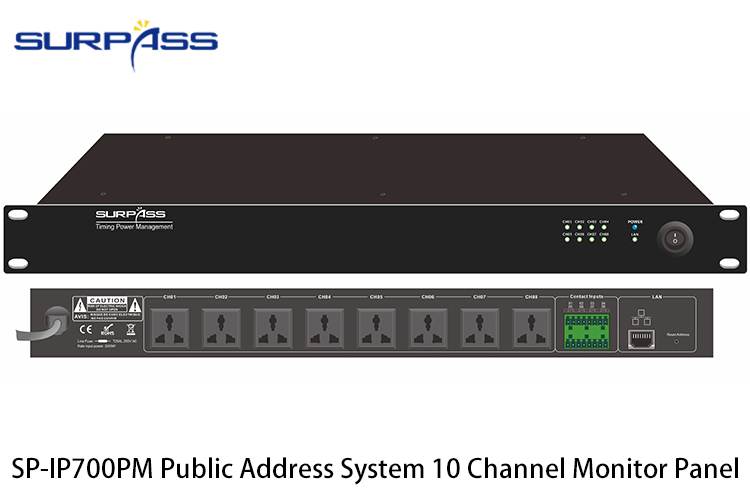

SP-IP700PM Public Address System 10 Channel Monitor Panel Features:
√ Public address system monitor panel.
√ Design with 10 channel inputs.
√ Built-in 5W@8Ω monitor speaker
√ Built-in monitor speaker to listen and monitor the system output.
√ The monitor speaker with adjustable volume control.
√ A five-element LED level meter is provided.
√ With 10 channel selector to choose the supervised output channel.
SP-IP700PM Public Address System 10 Channel Monitor Panel Specifications:
Model | PA-100MP |
Description | 10 Channel Monitor Panel |
Input | 70-100V , 10kΩ |
Output | 65dB SPL Variable |
Frequency response | 100Hz-15kHz |
Signal to noise ratio | 80dB |
Speaker | 5W@8Ω |
Power Consumption | 10-15W |
Protection | AC fuse |
Power Requirement | AC 220-240V/50-60Hz |
Dimension | 484(W)×350(D)×88(H) |
Weight | 6.3kg |
