SP-WP300L L Series All In One Teaching System Description:
L series all in one teaching system is the leading high technology teaching system, highly integrated with PC, multimedia central control system, speaker, visualizer, wireless audio system and wireless demostration system. All the multimedia teaching devices can be perfectly collrabrated, such as interactive whiteboard, projector, interactive led display pc etc. The special designed 3.5'' CCS Display system makes teaching more efficient.
SP-WP300L L Series All In One Teaching System Specification:
Model | SP-WP300L |
Standard Configuration | i3 4G 500G |
Optional Configuration | Wifi, DVD, RW, Bluetooth, SSD; *Higher configuration can be customized. |
Physical Dimension | 1270*280*70mm |
Packing Size | 1325*330*125mm |
Net Weight | 11 kgs |
Gross Weight | 16 kgs |
Antenna | Top integrated |
PPT Control | Integrated |
Communication | 2.4G |
Transit Distance | 10M |
Battery | Rechargeable lithium battery |
Laser Pointer | Integrated |
VOL Control | Integrated |
Mouse Function | Single click, double click, right click |
Speaker | 2 * 20W |
Power Input | 100-240V |
Standby Power Consumption | <=5W |
PC Voltage | 4.1~5.5V |
Data Display | 3.5’’ LED Screen |
Desktop Display | 10’’ LED Screen |
Locker | Mechanical Locker |
System Boot | ID Card Control |
System Recovery | Integrated |
Control Code | 99 units codes inside, no need burn in seperately |
Combination Key | Set card control, freeze time, control code and system lock |
Control Panel | Mute *1, Digital locker *1, Reboot *1, VOL *2, Signal Switch *1, Power *1, Projector*1 |
Index Lights | Mute *1, Digital locker *1, Projector Power*1, PC Power *1, System Power *1, Power Button*1 |
Connection Ports | USB*6, VGA IN*1, VGA OUT*1, MIC*1, AC IN*1, AC OUT*2, RJ45*2, RS-232*1, AUDIO IN*1, AUDIO OUT*1, HDMI |
Lens | CMOS 1/3 inch |
Color | 24-bit |
Pixels | 5M |
White Balance | Automatic |
Apture | Automatic |
Resolution | 2592*1944 |
Capture | One Key Capture |
Power | USB 2.0, 5V |
Exposure Compensation | LED |
Scan Frequency | 15fps @ 2592*1944, 30fps @ 1920*1080 |
Scan Speed | 1 Pic/Sec |
Scan Resolution | 200DPI |
Scan Size | >=A4(210mm*297mm) |
Focus | Fixed |
Image Output | JPG, TIF, PNG, BMP |
Video Record | AVI |
Output Files | PDF, DOC, TXT |
Image Operated | Zoom in/out, Color, Gray, Negtive, Mirror, Cut, Rotate, etc. |
Note | Lines, Shapes, Retangle, Text, Withdraw, Redo, Width, Color, Style, etc. |
Packing Details | All in one teaching system*1, 5M Power cable*1, 5M VGA Cable*1, 5M RS-232 Cable*1, Warranty Card*1, Manual*1, Document Camera Door Keys*2, E-KEY*1, Wireless Mic Suit*1 |
Place of Origin | Guangzhou, China |
SP-WP300L L Series All In One Teaching System Features:

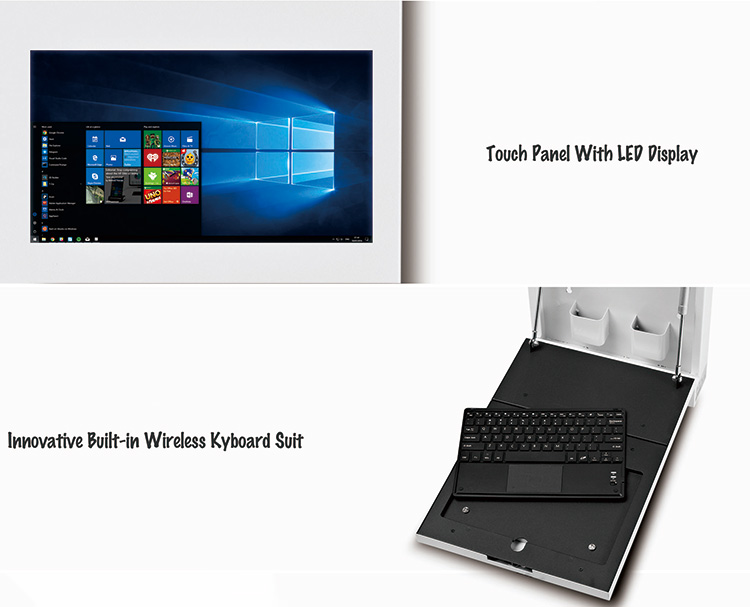

1. Touch Panel With LED Display
2. Innovative Built-in Wireless Keyboard Suit
3. High Definition Visualizer
High Definition Pictures:
Brochure/Data Sheet:
SP-WP300L L Series All In One Teaching System.pdf、
Operation Manual:
