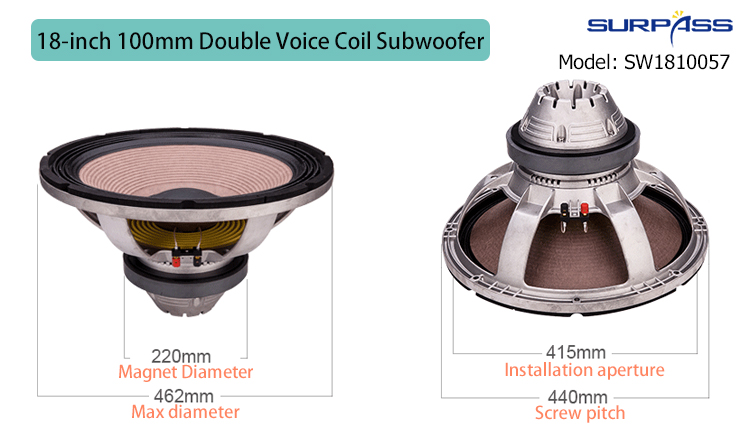

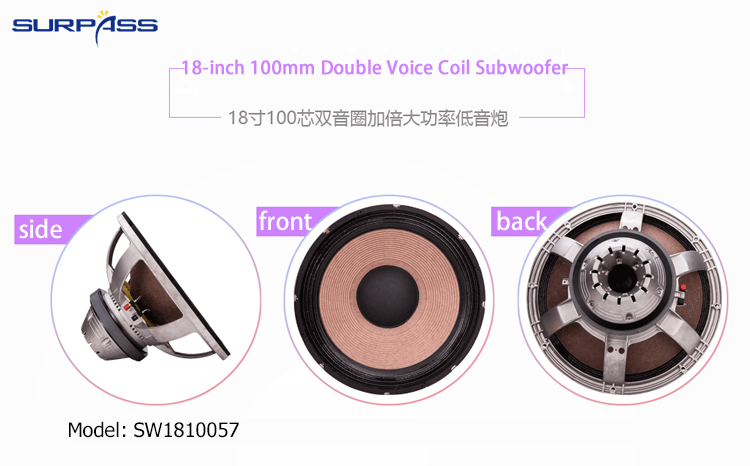

SW1810057 18-inch 100mm Double Voice Coil Subwoofer
100-core 18-inch 100mm Double Voice Coil Subwoofer
SW1810057 18-inch 100mm Double Voice Coil Subwoofer Specification:
Model | SW1810057 |
Description | 18-inch 100-core double voice coil subwoofer |
Installation aperture | About 415mm |
Diagonal screw hole | About 440mm |
Height | About 277mm |
Magnet | Ferrite |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 1.2K Watts |
Maximum power | 2.4K Watts |
Sensitivity | 95 dB/1W/1m |
Frequency range | 30-2K Hz |
Resonant frequency | 33Hz |
Electrical Quality Factor Number | 0.42 |
Mechanical Quality Factor Value | 13 |
Total Quality Factor Number | 0.41 |
Effective Volume | 185 liters |
Vibration Area | 0.122m2 |
Magnetic Force | 24.5 Txm |
Effective Mobile Quality | 266g |
Place of Origin | Guangzhou, China |
Net Weight | About 11.8KG (No packaging) |
SW1810057 18-inch 100mm Double Voice Coil Subwoofer Features:
1. Sound quality of imported loudspeakers
Made specifically for professionals who pursue sound quality, 18-inch subwoofer, presents the expressive power of the bass.
2. High quality edged paper basin
Double folding ring elastic selvage design, bass steady and thick, using high-quality paper basin, light as swallow, strong and durable, not off-line sound.
3. 18 inch 1.2KW high power
Imported paper basins are of high quality, which is a strong guarantee of sound quality and overall strength.
4. Nondestructive silver stranded wire
Using multiple silver stranded wire, effectively guaranteeing non-destructive input of power, pressing terminal design, avoid the trouble of bonding wire.
