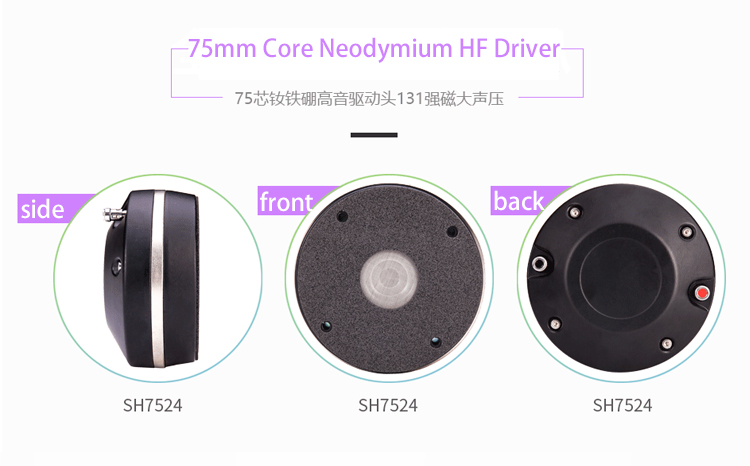

SH7524 75mm Core Neodymium HF Driver
NdFeB 131 magnetism 75mm Core Neodymium HF Driver
Specification:
Model | SH7524 |
Description | 75-core Nd-magnetic tweeter |

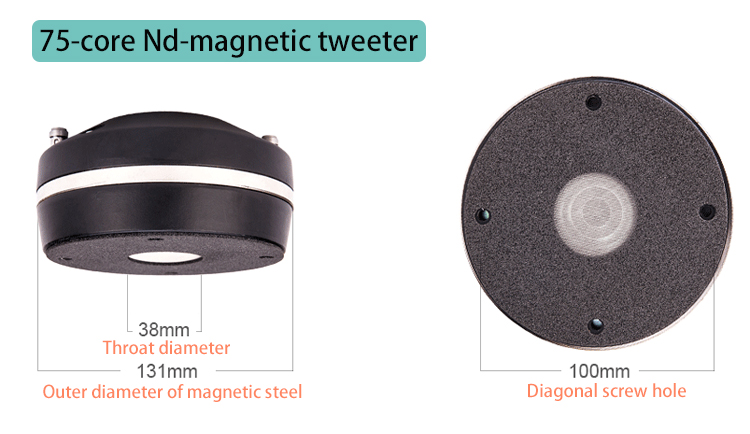

Diagonal screw hole | 100mm |
Throat diameter | 38mm |
Magnet | NdFeB 131 magnetism |
Voice coil | 75-core copper-clad aluminium coil |
Height | 6.5cm |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 100 Watts |
Maximum power | 200 Watts |
Sensitivity | 109 dB/1W/1m |
Frequency range | 800-20K Hz |
Place of Origin | Guangzhou, China |
Net Weight | 2.5KG |
Features:
1. Big caliber makes treble loud and clear
Rubidium Magnets, International Big Brand Sound Quality
2. High Quality Horn Cover (Aluminum Rear Cover)
Round hollow horn cover design, exquisite appearance, fashionable and generous, perfect and vivid technological performance
3. Imported sound film, natural and audible sound
Strong and powerful high-pitched voice
4. Strong treble, Aluminizing throat match
Designers and acoustics experts create loudspeakers that focus on acoustic performance, bringing you two enjoyments of vision and hearing
