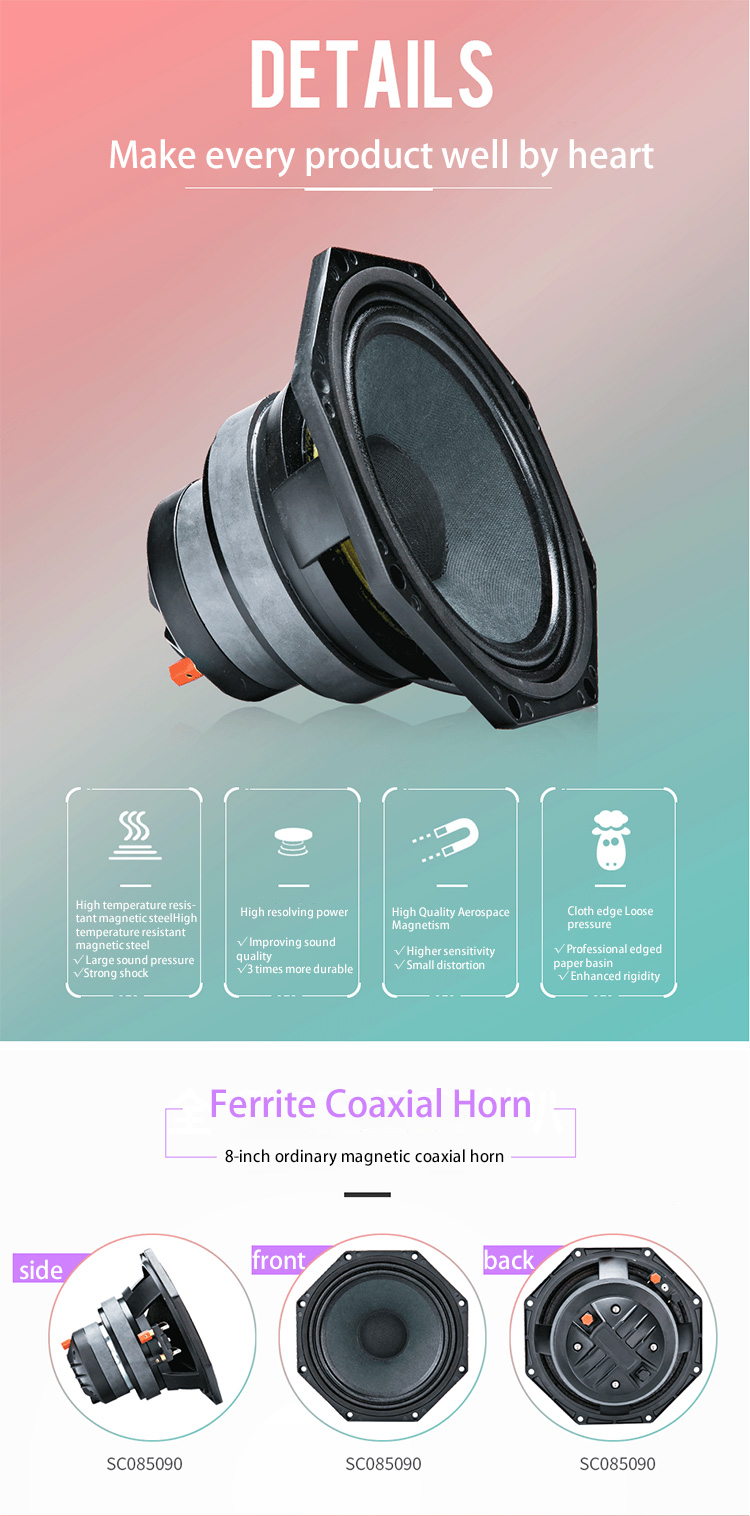

SC085090 8-inch 50-core coaxial horn
Cast aluminum frame 8-inch 50-core coaxial horn
8-inch 50-core coaxial horn Nominal specification
Product Name | 8-inch 50-core coaxial horn | Speaker Brand | Surpass |
Installation Aperture | about 187mm | Magnet | Treble 100/bass 140 |
Diagonal Screw Hole | about 210mm | Net Weight | 4.8KG (No packing,about) |
Total Height | about 140mm | Frame Material | Cast aluminum frame |
8-inch 50-core coaxial horn Technical parameter
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | Treble 50 Watts /bass 150 Watts |
Maximum power | Treble 100 Watts /bass 300 Watts |
Sensitivity | Treble 103 dB /bass 94 dB (1W/1m) |
Frequency range | 75-20000Hz |
8-inch 50-core coaxial horn T.S parameter
Resonant frequency | 74 Hz |
DC impedance | 5.2 ohm |
Number of loudspeaker electrical quality factor | 0.39 |
Mechanical Quality Factor Value of Loudspeaker | 4.1 |
Total Quality Factor Number of Speakers | 0.36 |
Effective Volume of Horn | 15 dm3 |
Vibration area | 220Cm2 |
Magnetic force | 11.5 Txm |
Effective Mobile Quality | 21g |
8-inch 50-core coaxial horn characteristics
1. Accurate and fast timbre
Excellent rigidity makes it good at expressing all kinds of music, with wide range and great flexibility
2. Coaxial special ventilation cap
Use Y35 high strength magnet to make the voice smooth, soft and pleasant
3. Y35 high strength magnet
Durable, not because of long-term use and demagnetization, resulting in a smaller sound, sand bump
4. High transmission efficiency and excellent analytical power
High quality detail analysis, whether rock or pop or Lyric music, can bring you high fidelity sound effect
