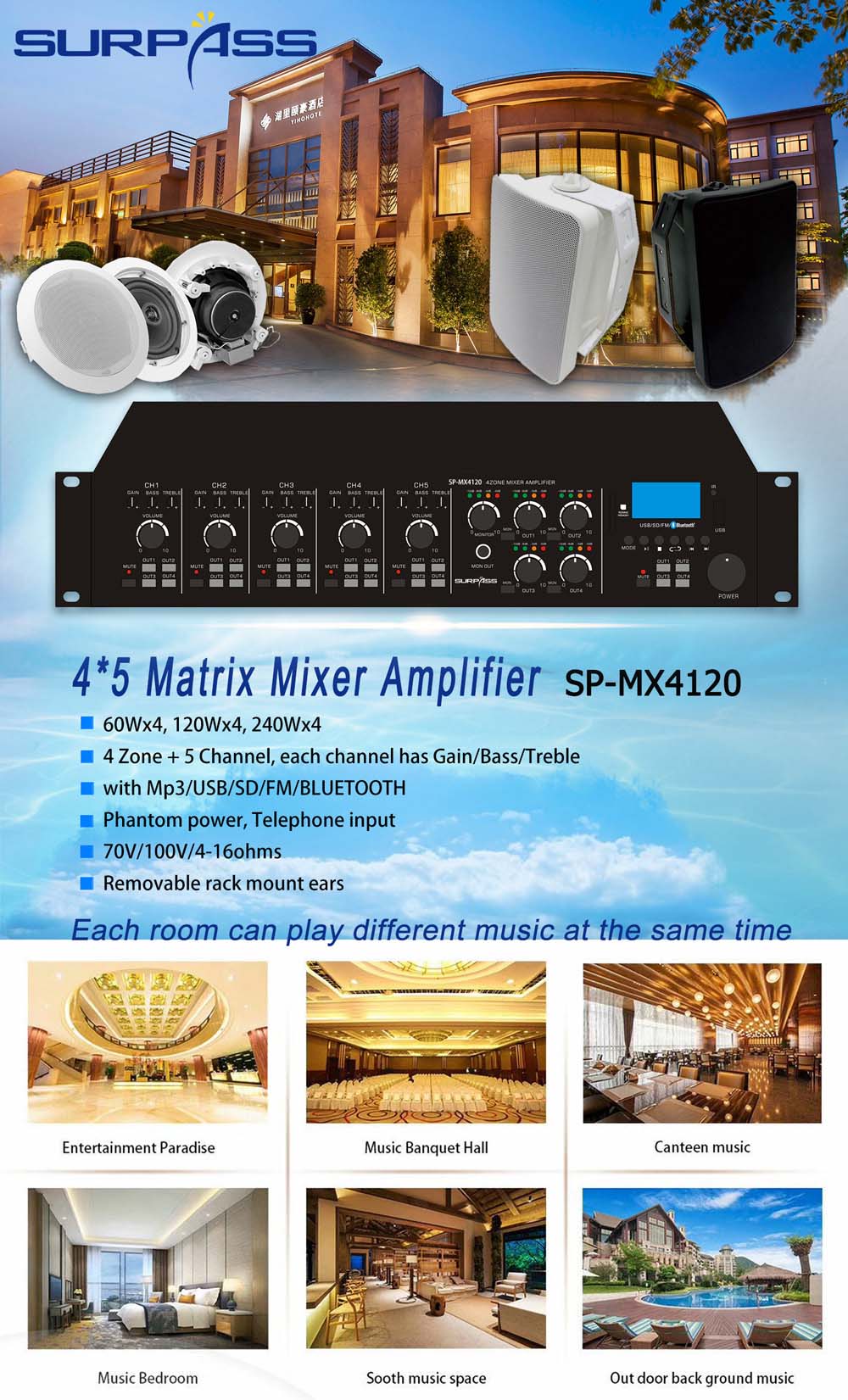

PA 4x5 Matrix Mixer Amplifier +USB/SD/FM/BLUETOOTH
SP-MX4120(4x120W), SP-MX460(4x60W)
Feature:
· 4×4 Audio Matrix mixer amplifier with 4*60W or 4*120W output.
· Designed for multi-room systems requiring different audio sources.
· 4 independent output zones for multiple room sound system.
· 5 Channel independent output.
· 6 sources matrix distributed to any of the 4 speaker zones.
· 5 Signal input: Mic 1-3 switchable phantom power, 2 RCA and One with priority function.
· Different 4 zone of different music program and different volume output.
· 4 Zone speaker outputs of 100V or 70V, 4-16 Ohms speakers.
· 100V/70V or 4-16 Ohms operation for PA system and hi-fi both sound system.
· Mp3 audio input, support USB/SD/FM/Bluetooth can be matrix switched to any of the 4 zones independently.
· Internal Bluetooth receiver with mobile use
· Telephone audio input with priority function.
· Monitor function.
Specification:
Model | SP-MX460 | SP-MX4120 |
Description | 4x5 Matrix Mixer Amplifier with with Mp3 USB/SD/FM/Bluetooth |
Rated Power | 4*60W | 4*120W |
Speaker Output | 100V or 70V, 4-16 Ohms |
Input | Mic/Line1-3 with switchable phantom power AUX1-2 500mV/10K ohm/MIC1-3 1-6mV/ MIC1 at 48V |
Frequency Response | 80Hz~20KHz |
Distortion(THD) | <0.5% at 1KHz 100V -3dB |
S/N Ratio | 75dB |
Tone Control | Bass: 100Hz -+10dB, Treble: 10KHz -+10dB |
Power Supply | AC 110V-240V 50-60Hz |
Dimension | 485(W)×340(D)×88(H)mm |
Weight | 15KG | 22KG |
