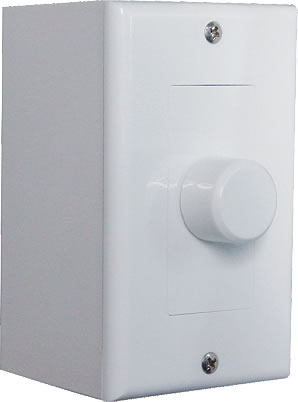

SP-VF6, SP-VF30, SP-VF60, SP-VF120 - 100V Volume Control with Cover

100V Volume Control with Cover

SP-VF6(6W), SP-VF30(30W), SP-VF60(60W), SP-VF120(120W)

Feature:

· PA system 100V input volume control with full sealed back cover.

· Background music system use attenuator of waterproof finish for bathroom, washroom and SPA.

· It is used to adjust the loudspeaker output in the room.

· It is used to keep same output level for one same speaker line, because the end the speaker line signal loss is rather big, so its output is less, thus volume controller is added to the front of the line to lower the speaker output so as to keep the similar ambient output level for the all of the speaker in the same line.

· High level white UV-protected ABS material to integrate together with the white wall and architecture design.

· Built-in transformer to control the PA 100V line loudspeakers.

· With 10 levels of volume attenuator and one position of off.

· Wall plate with waterproof mounting box and front panel are separated fixed together.

· Surface wall mount or in-wall mounting box included.

Optional: models with R means with relay 24V.

Specification:

Wiring and Dimension:
