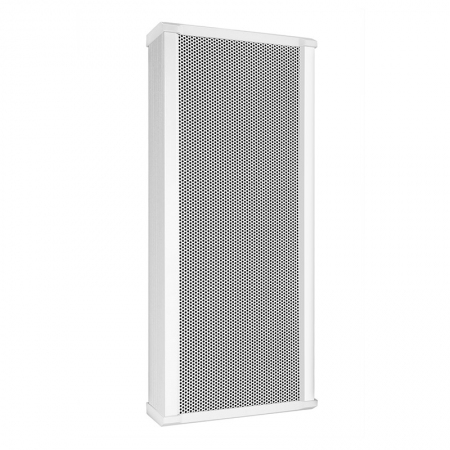

SP-CL40F
40W 6.5’’ x 2 PA System Waterproof Outdoor Column Speaker
Feature:
· Commercial PA system music & paging outdoor column speaker with transformer
· Ideal for outdoor music and speech use school,stadium,parks,playground,factory and airport
· Built-in 100V/70V transformer, cable tail with waterproof gland
· 6.5” x 2 waterproof woofer built-in outdoor column speaker
· Power taps 40W-20W @100V, and 20W-10W @70V
· Waterproof level of IP66
· Aluminum alloy enclosure and stainless metal bracket
· Color: White
· Easy installed by supplied mounting bracket hanging on the wall
Optional: 20W model no. SP-CL20F, 60W model no. SP-CL60F, 80W model no. SP-CL80F, 100W model no. SP-CL100F, 120W model no. SP-CL120F.
Description:
The SP-CL40F is a waterproof outdoor column speaker built-in 100V/70V transformer. The 100V/70V transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 6.5” x 2 waterproof woofer driver is designed of wide frequency response 150-14KHz, the multiple power taps 40W-20W are helpful for different applications varies from room size and ambient noise surroundings.
The Aluminum alloy enclosure and cover, stainless metal bracket are of white color, weatherproof and heavy damage proof finishing. Easy and secure wall-mounted installation in outdoor area through the supplied mounting bracket on to the wall.
It is ideal choice for industrial and commercial applications in the outdoor area of school, train station, shopping mall, parking area, stadium, parks, playground, factory and airport where background music and paging is needed.
Specification:
Model | SP-CL40F |
Description | 40W PA System Outdoor Column Speaker |
Power Taps @100V | 40W-20W |
Power Taps @70V | 20W-10W |
Line Input | 100V |
Transformer Impedance | Yellow: COM/ Brown: 250Ω/ Blue: 500KΩ |
Frequency Response | 150-14KHz |
SPL(@1W/1M) | 96dB±3dB |
Speaker Unit | 6.5” x 2 woofer full range speaker unit |
IP Rate | IP66 |
Material | Aluminum alloy enclosure and stainless metal bracket |
Color | White |
Mounting Method | Easy installed by supplied mounting bracket hanging on the wall |
Connector | By speaker cable tail with waterproof gland |
Net Weight | 3.7 KG/pcs |
Product Dimension | 225 x125x520mm |
Gross Weight | 5.5kg |
Package Size | 25.8*15*56.5cm, 1pcs/ctn |
