SP-CL60H
60W 6.5’’x2 + 3’’ PA System High Power Range Outdoor Column Speaker
Feature:
· Commercial PA system music & paging outdoor column speaker with transformer
· Ideal for outdoor music and speech use in school,stadium,parks,playground,factory and airport
· Built-in 100V/70V transformer, cable tail with waterproof gland
· 6.5” x 2 + 3’’ waterproof woofer+tweeter two way built-in outdoor column speaker
· Power taps 60W-30W @100V, and 30W-15W @70V
· Waterproof level of IP66
· Metal enclosure, Metal grille, ABS cover and stainless metal bracket
· Color: White
· Easy installed by supplied mounting bracket hanging on the wall

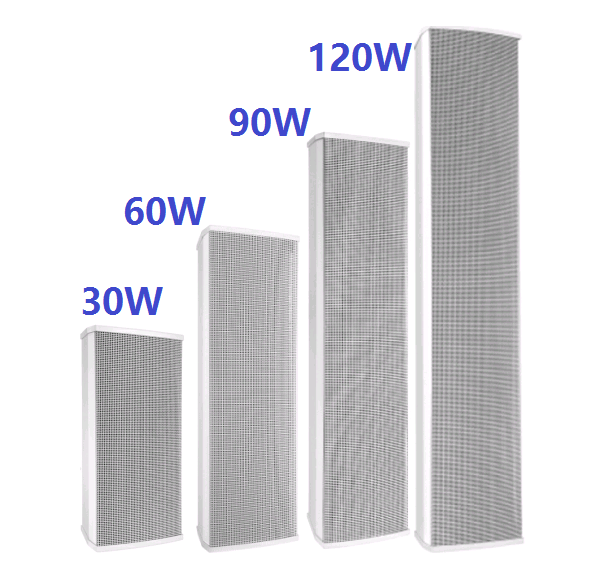

Optional: 30W model no. SP-CL30H, 90W model no. SP-CL90H, 120W model no. SP-CL120H.
Description:
The SP-CL60H is a waterproof outdoor column speaker built-in 100V/70V transformer. The 100V/70V transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 6.5” x 2 + 3’’waterproof woofer+tweeter two way drivers are designed of wide frequency response 150-15KHz, the multiple power taps 60W & 30W are helpful for different applications varies from room size and ambient noise surroundings.
The Metal enclosure, Metal grille, ABS cover and stainless metal bracket are of white color, weatherproof and heavy damage proof finishing. Easy and secure wall-mounted installation in outdoor area through the supplied mounting bracket on to the wall.
It is ideal choice for industrial and commercial applications in the outdoor area of school, train station, shopping mall, parking area, stadium, parks, playground, factory and airport where background music and paging is needed.
Specification:
Model | SP-CL60H |
Description | 60W PA System Outdoor Column Speaker |
Power Taps @100V | 60W-30W |
Power Taps @70V | 30W-15W |
Line Input | 100V |
Transformer Impedance | Yellow: COM/ Brown: 167Ω/ Blue: 333Ω |
Frequency Response | 150-15KHz |
SPL(@1W/1M) | 96dB±3dB |
Speaker Unit | 6.5” x2 + 3’’ waterproof woofer+tweeter two way speaker unit |
IP Rate | IP66 |
Material | Metal enclosure, Metal grille, ABS cover and stainless metal bracket |
Color | White |
Mounting Method | Easy installed by supplied mounting bracket hanging on the wall |
Connector | By speaker cable tail with waterproof gland |
Net Weight | 6.8 KG/pcs |
Product Dimension | 197x162x620mm |
Gross Weight | 10.6kg |
Package Size | 33.8*29*76cm, 1pcs/ctn |
High Definition Pictures:
Brochure/Data Sheet:
Operation Manual:
