SP-MX4120

Product Description：

Feature:

- 4×4 Audio Matrix mixer amplifier with 4*60W or 4*120W output.

- Designed for multi-room systems requiring different audio sources.

- 4 independent output zones for multiple room sound system.

- 5 Channel independent output.

- 6 sources matrix distributed to any of the 4 speaker zones.

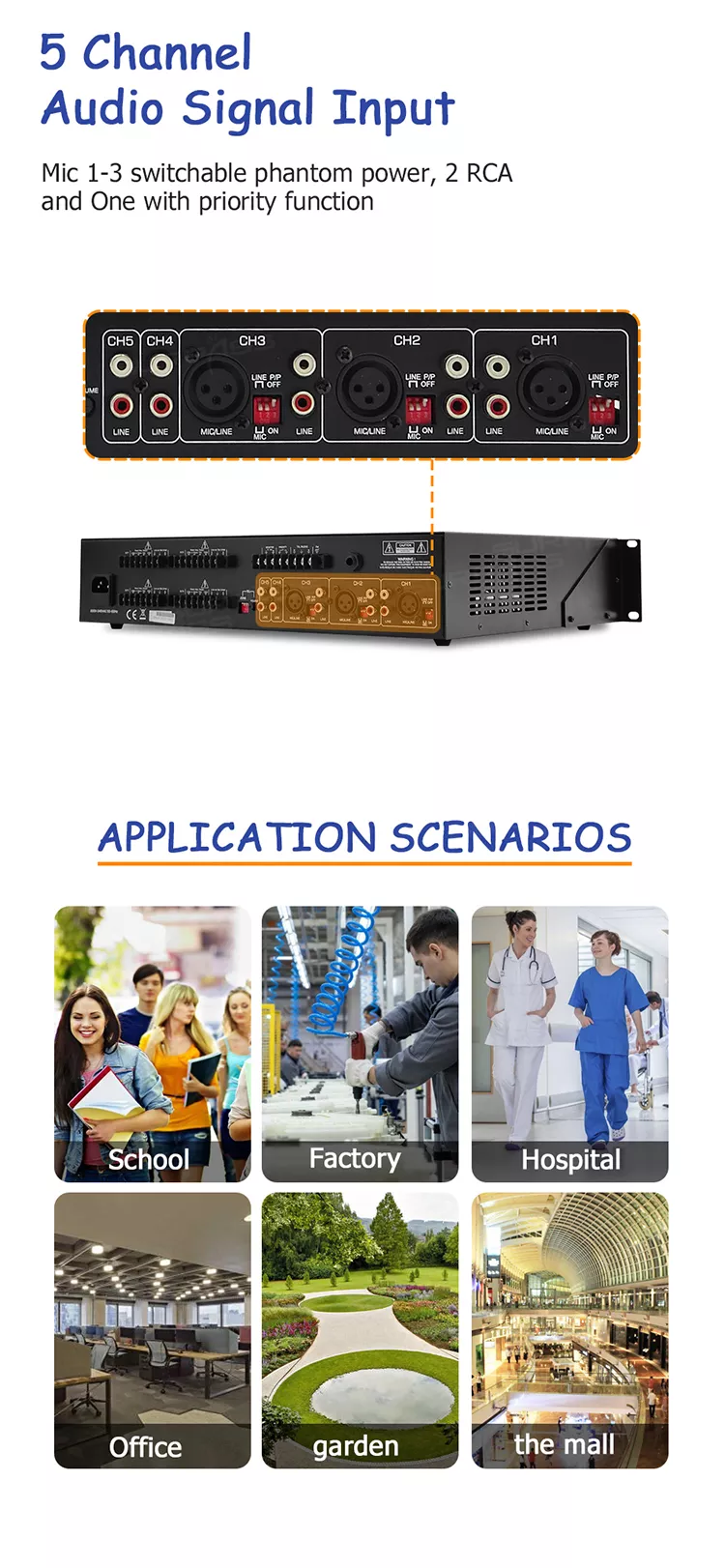

- 5 Signal input: Mic 1-3 switchable phantom power, 2 RCA and One with priority function.

- Different 4 zone of different music program and different volume output.

- 4 Zone speaker outputs of 100V or 70V, 4-16 Ohms speakers.

- 100V/70V or 4-16 Ohms operation for PA system and hi-fi both sound system.

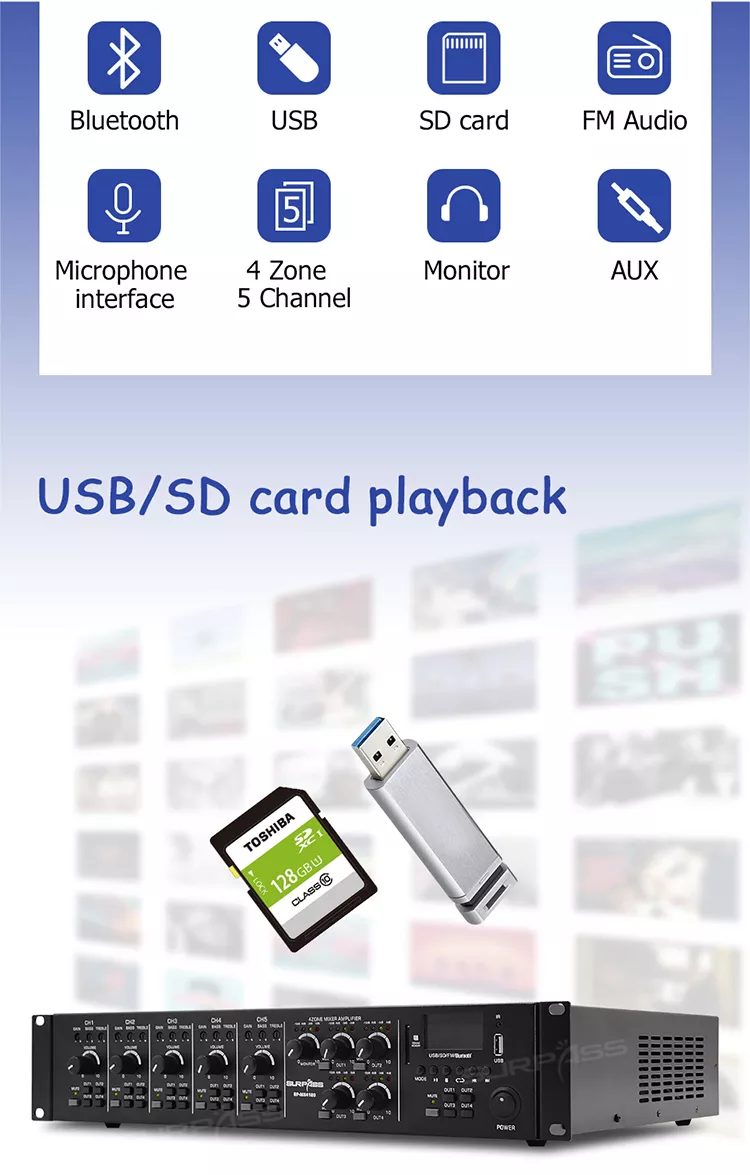

- Mp3 audio input, support USB/SD/FM/blue-tooth can be matrix switched to any of the 4 zones independently.

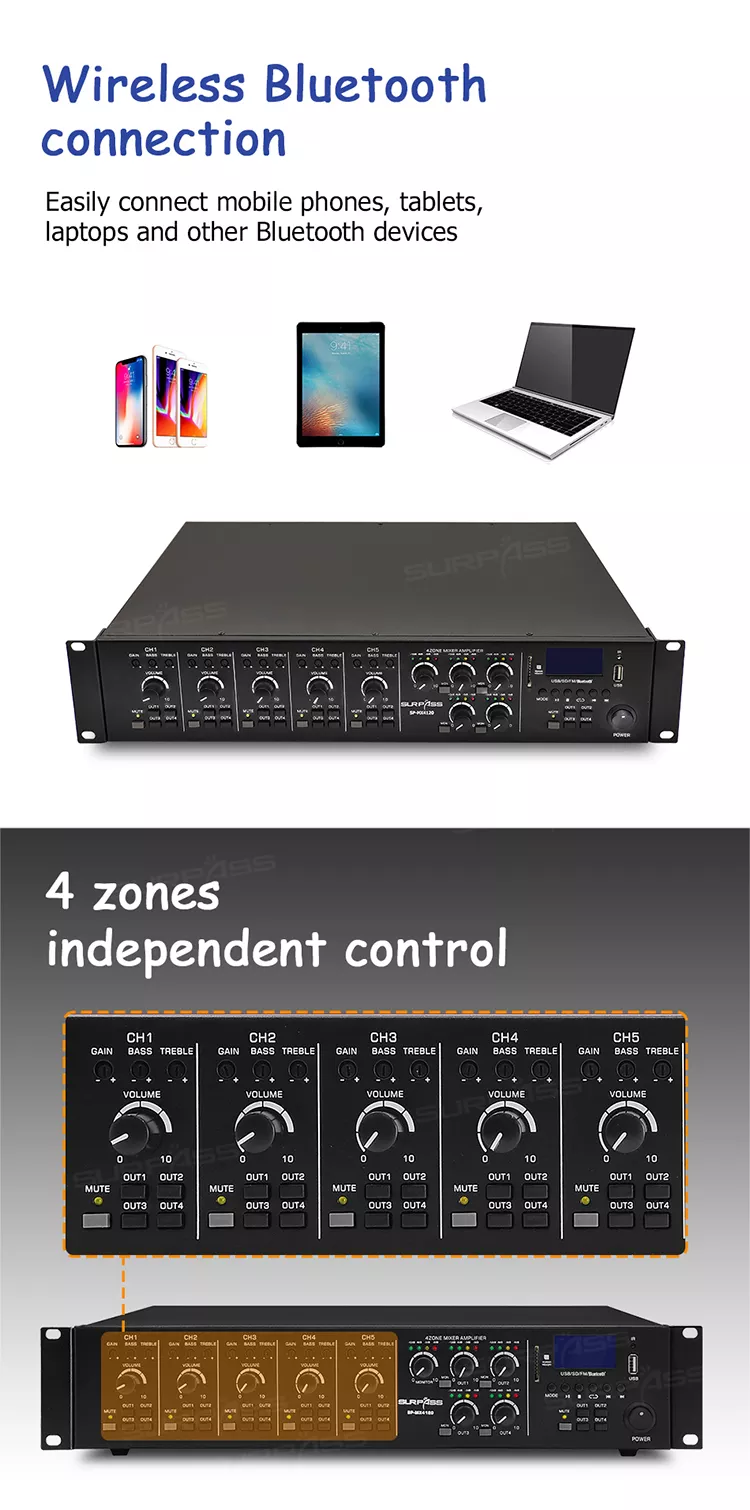

- Internal blue-tooth receiver with mobile use

- Telephone audio input with priority function.

- Monitor function.

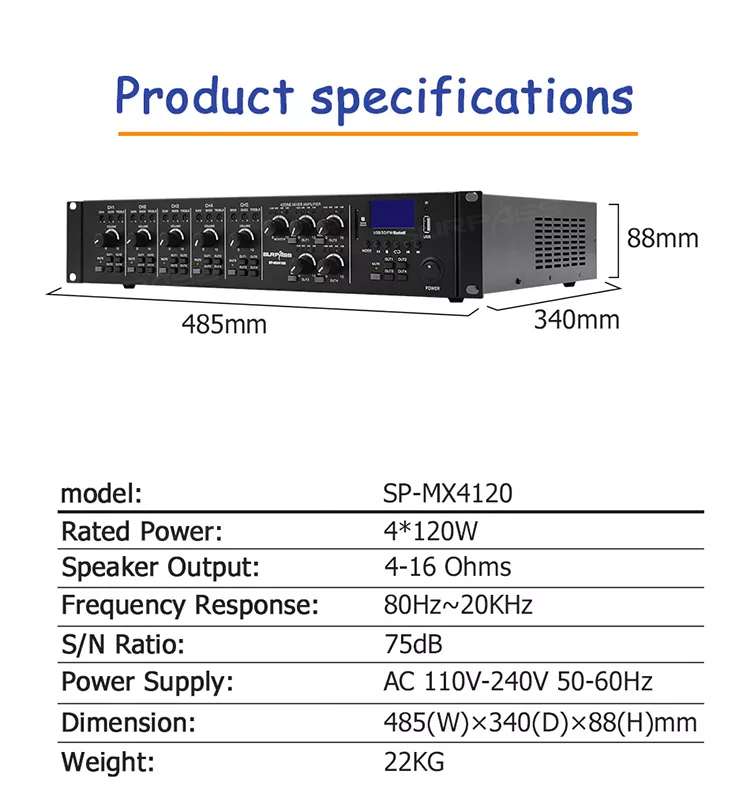

Specification：

- Description: 4x5 Matrix Mixer Amplifier with with Mp3 USB/SD/FM/blue-tooth

- Rated Power: 4*120W
- Speaker Output: 100V or 70V, 4-16 Ohms
- Input: Mic/Line1-3 with switchable phantom power, AUX1-2 500mV/10K ohm/MIC1-3 1-6mV/ MIC1 at 48V
- Frequency Response: 80Hz~20KHz
- Distortion(THD): <0.5% at 1KHz 100V -3dB
- S/N Ratio: 75dB
- Tone Control: Bass: 100Hz -+10dB, Treble: 10KHz -+10dB
- Power Supply: AC 110V-240V 50-60Hz
- Dimension: 485(W)×340(D)×88(H)mm
- Weight: 22KG
