Product Description:

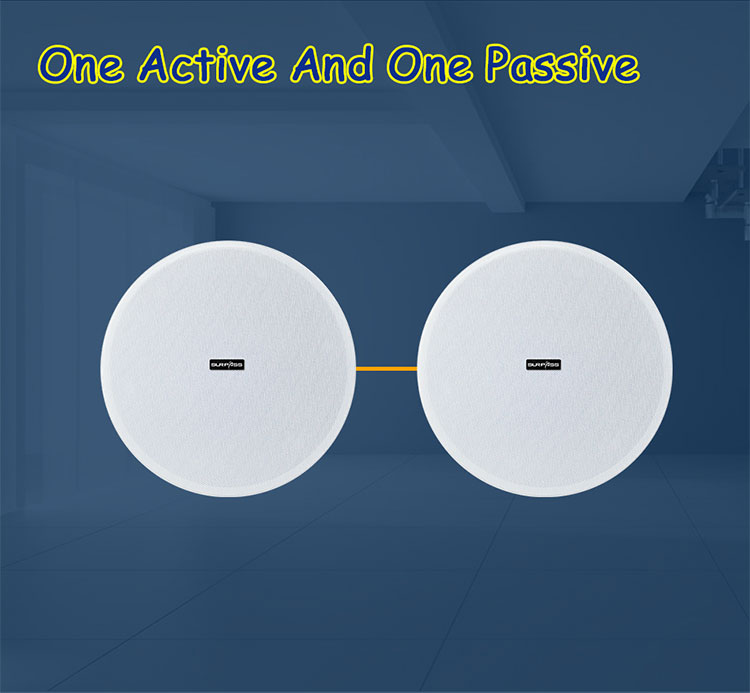

5.25 Inch Wireless Active 30W Blue-tooth Coaxial Frameless Ceiling Speaker Master Ceiling Speaker With 1 Slave Ceiling Speaker
5.25'' Frameless Coxial Ceiling Speaker with Magnetic Grill 2pcs/set
▪ Rated Power: 2x30W
▪ Peak Power: 2x60W
▪ Frequency response: 55-22Khz
▪ Impedance: 8Ω
▪ Sensitivity: 89dB
▪ Amplifier Module: 2x30W/Class D digital power amplifier module
▪ Support Blue-tooth Protocol: HFPV1.5, A2DPV1.2,AVRCPV1.4,HSP1.2, GAVDP1.2,IOP
▪ Speaker Unit:Integration 5.25"Coaxial unit
▪ Installation: Ceiling mount
▪ Decorative materials: ABS
▪ Power In: 24V2A
▪ Product size: 206x80mm
▪ Opening hole size: Φ180
▪ Weight: 3kg (2pcs/set)
Specification:
item | value |
Battery | NO |
Number of Loudspeaker Enclosure | 1 |
Audio Crossover | TWO-WAY |
Woofer Size/Full-Range Size | 5.25" |
Material | Plastic |
Communication | AUX |
Speaker Type | In-ceiling Speaker |
Remote Control | Yes |
Cabinet Material | Plastic |
Tweeter Size | 1" |
Brand Name | SURPASS |
Model Number | SP-BTF22 |
Type | Active |
Use | HOME THEATRE, Party |
Channels | 1 |
Place of Origin | China |
| Guangdong |
Rated Power | 2x30W |
Peak Power | 2x60W |
Frequency response | 70-20Khz |
Sensitivity | 89dB |
Amplifier Module | 2x30W/Class D digital power amplifier module |
Support Blue-tooth Protocol | HFPV1.5, A2DPV1.2,AVRCPV1.4,HSP1.2, GAVDP1.2,IOP |
Speaker Unit | Integration 5.25"Coaxial unit |
Product size | 206x80mm |
Power In | 24V2A |
Weight | 3kg (2pcs/set) |
High Definition Pictures:
Brochure/Data Sheet:
SURPASSIn-ceilingSpeakerSP-BTF22.doc、
Operation Manual:
