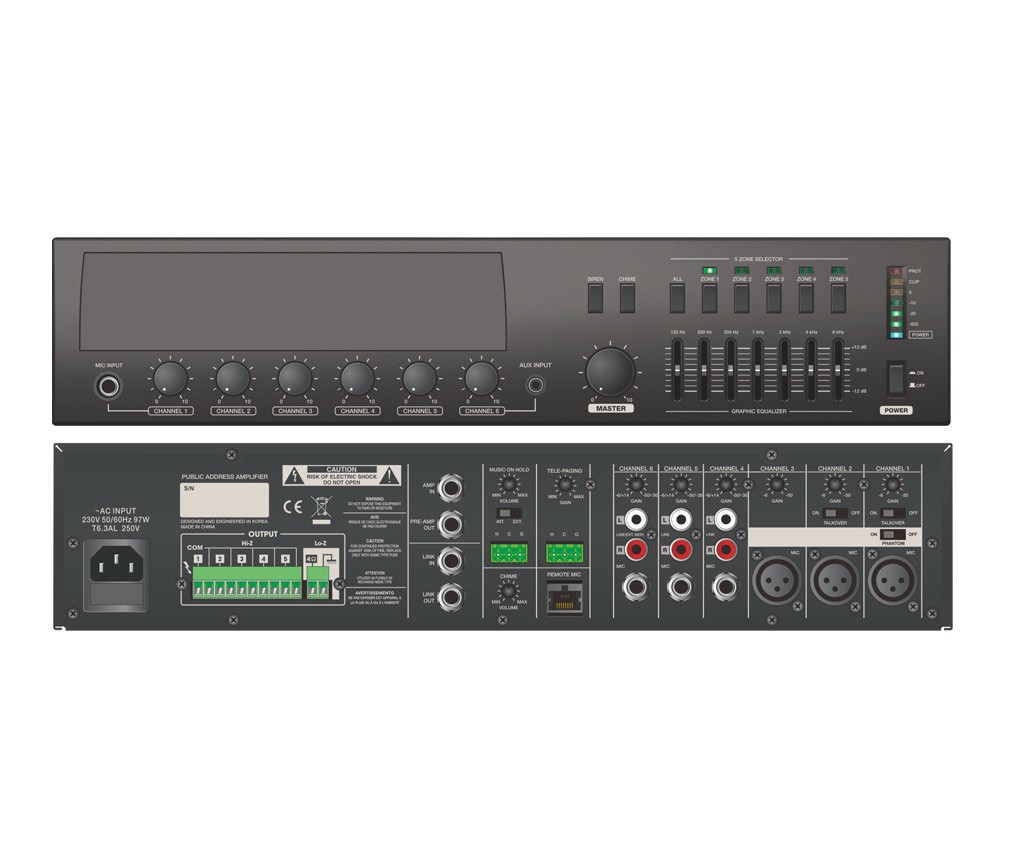

SP-5600EQ,SP-5480EQ,SP-5360EQ,SP-5240EQ,SP-5120EQ 5 Zone Mixer Amplifier with EQ

5 Zone Mixer Amplifier with EQ

Feature:

▪ Controls:

Front: 6 Input Channel Volume Control, Chime &Siren Switch, 7 Band EQ Control, Master Volume Control, 5 Zone Speaker Selector

Rear: Talkover Switch For Channel 1. 2 &Phantom Power Switch for Channel 1-3 Gain for 6 Input Channe

Chime, Tele -Paging, Music On Hold Level Control & Selector

▪ Connectors:

Input: Channel 1: 1/4 Phone Jack and XLR Jack Electronically Balanced

Channel 2-3: XLR Jack Electronically Balanced

Channel 4-6 Dual RCA and 1/4" Phone Jack

Remote Mic: Ri45

Tele Paging: Euro Block

Amp Link: 1/4 Phone Jack

Output: Speaker Output: Euro Bock

Music On Hold: Euro Bock

Pre-amp &Link: 1/4 " Phone Jack

▪ Indicators: Power. SIG -20db -10db, 0db, CLIP Protect Zone selector

Protection: Output Current Limiting, Thermal Protection DC Offset Protection

Cooling: Convection Cooling

▪ Option: Rack Mount Kit
