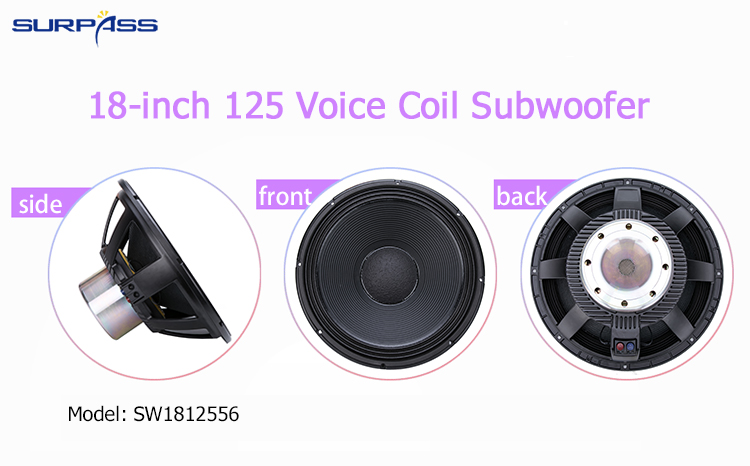

SW1812556 18-inch 125 Voice Coil Subwoofer
18-inch 125 Voice Coil Subwoofer
SW1812556 18-inch 125 Voice Coil Subwoofer
18-inch 125 Voice Coil Subwoofer Specification:
Model | SW1812556 |
Description | 18-inch 125 Voice Coil Subwoofer |
Outer diameter | About 465mm |
Diagonal screw hole | About 452mm |
Installation aperture | About 420mm |
Height | About 234mm |
Magnet | NdFeB 124 magnet |
Voice Coil | 125 voice coil high temperature resistant pure copper wire |
Drum paper | RCF paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
Minimum Impedance | 6 ohm |
Rated power | 1.2K Watts |
Maximum power | 2.4K Watts |
Sensitivity | 97 dB (1W/1m) |
Frequency range | 36-1K Hz |
DC impedance(Re) | 5.6 ohm |
Resonant frequency(FS) | 36Hz |
Electrical Quality Factor Number(Qes) | 0.42 |
Mechanical Quality Factor Value(Qms) | 8.22 |
Total Quality Factor Number(Qts) | 0.4 |
Effective Volume(Vas) | 208 liters |
Vibration Area(Sd) | 1325 cm2 |
Magnetic Force(BI) | 29.6 Txm |
Effective Mobile Quality(Mms) | 262g |
Place of Origin | Guangzhou, China |
Net Weight | 13.5KG |
18-inch 125 Voice Coil Subwoofer 18-inch 125 Voice Coil Subwoofer 18-inch 125 Voice Coil Subwoofer
18-inch 125 Voice Coil Subwoofer Details:
