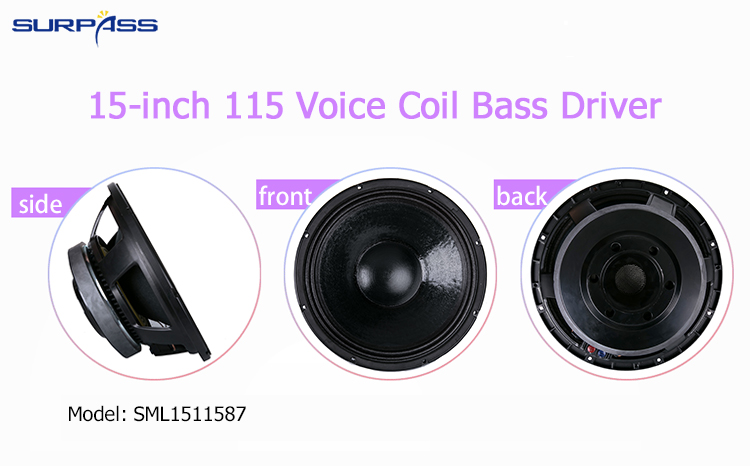

SML1511587 15-inch 115 Voice Coil Bass Driver
115 Voice Coil Bass Driver
SML1511587 15-inch 115 Voice Coil Bass Driver
15-inch 115 Voice Coil Bass Driver Specification:
Model | SML1511587 |
Description | 15-inch 115 Voice Coil Bass Driver |
Outer diameter | About 395mm |
Diagonal screw hole | About 378mm |
Installation aperture | About 356mm |
Height | About 170mm |
Magnet | Ferrite 250 magnetic |
Voice Coil | 115 voice coil copper clad aluminum flat wire |
Drum paper | Imported Thailand GIP paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
Minimum Impedance | 6 ohm |
Rated power | 800 Watts |
Maximum power | 1600 Watts |
Sensitivity | 96 dB (1W/1m) |
Frequency range | 30-2K Hz |
DC impedance(Re) | 5.6 ohm |
Resonant frequency(FS) | 48Hz |
Electrical Quality Factor Number(Qes) | 0.37 |
Mechanical Quality Factor Value(Qms) | 10.4 |
Total Quality Factor Number(Qts) | 0.36 |
Effective Volume(Vas) | 84.5 liters |
Vibration Area(Sd) | 889 cm2 |
Magnetic Force(BI) | 25.2 Txm |
Effective Mobile Quality(Mms) | 143g |
Place of Origin | Guangzhou, China |
Net Weight | 15KG |
