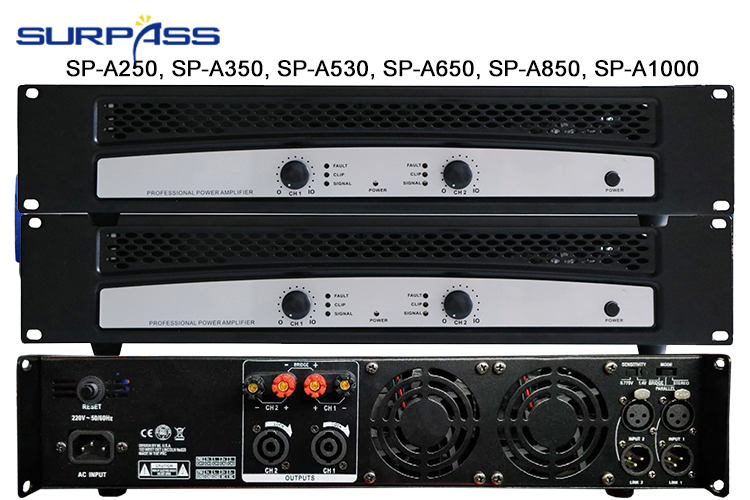

SP-A250, SP-A350, SP-A530, SP-A650, SP-A850, SP-A1000
Professional Stereo Power Amplifier Two Channel
RCA and XLR Inputs Professional Stereo Power Amplifier Two Channel
RCA and XLR Inputs Professional Stereo Power Amplifier Two Channel Specification:
Technical Parameter | |||||||
Model/Power | SP-A250 | SP-A350 | SP-A530 | SP-A650 | SP-A850 | SP-A1000 | |
(1 KHz 5%THD) | |||||||
8 Ohms Stereo | 250W*2 | 350W*2 | 530W*2 | 650W*2 | 850W*2 | 1000W*2 | |
4 Ohms Shereo | 375W*2 | 500W*2 | 750W*2 | 900W*2 | 1200W*2 | 1400W*2 | |
8 Ohms Bridge mono | 700W | 1050W | 1500W | 1800W | 2400W | 2800W | |
Frequency Response(1W) | 20Hz-20KHz, +/- 1dB | ||||||
THD | < 0.5%, 20Hz-20KHz | ||||||
IMD | ≦0.35% (60Hz- 7KHz, output to-30dB) | ||||||
Switching Rate | >10V/US | ||||||
Voltage Gain | 29dB | 31dB | 33dB | 34dB | 35dB | 36dB | |
Damping Factor | >200 (8 0hms,20Hz- 400Hz) | ||||||
SNR | 100dB (20Hz- 20KHz, Rated output power as a reference) | ||||||
Crosstalk | 73dB /-57 | ||||||
Input Sensitivity | 0.775V / 1.4V (Rated power 8 Ohm) | ||||||
Input Impedance(rated) | 20K ohms / 10K ohms (Balanced / Unbalanced) | ||||||
Input Connector | One balance XLR, One unbalanced RCA | ||||||
Output Connector | 4-POLE Speakon and a pair of terminals | ||||||
Control Features | Power switch and Gain control | ||||||
Rear panel Features | Stereo, Parallel, Bridge mode select,Input sensitivity options | ||||||
Front panle indicator | Power, Signal, Clipping, Protection LED lamp | ||||||
Power Supply | Plug:10A 250V ~230V, 50Hz- 60Hz | ||||||
Protection | Short circuit, Overload, Overheating, Switching surge, Wireless interference | ||||||
Dimension (W*H*D) | 482mm*89mm*330mm | 482mm*89mm*380mm | |||||
Weight | 13Kg | 15Kg | 16Kg | 18Kg | 20Kg | 22Kg | |
RCA and XLR Inputs Professional Stereo Power Amplifier Two Channel Description:
Powerful. Reliable. Affordable.
The A Series of power amplifiers from Solo represents a new era in affordable, quality power amplification. All four models in the series are powerful, rugged and reliable. They are suited for musicians, DJs, and entertainers as well as houses of worship, discos, and pubs.
The six models in the series are the SP-A250, SP-A350, SP-A530, SP-A650, SP-A850, SP-A1000. They are identical except for output power.
Features include RCA and XLR inputs, user selectable input sensitivity of 0.755V or 1.4V, Speakon and binding post outputs, stereo/parallel/bridge-mono mode, power/fault/signal presence/clip indicators, forced-air cooling; and protection against shorts, no-load, on/off thumps and radio-frequency interference.
With many years of experience designing and building rock-solid products, Solo is the standard in amplifier technology. So check out the affordable Solo A Series. They are a powerful argument for quality and value!
RCA and XLR Inputs Professional Stereo Power Amplifier Two Channel Features:
● Professional stereo 2 channels power amplifier.
● 19’’ rack mount size.
● Rated power at
● Separate speaker outputs 8Ω, 4Ω and Bridge.
● Stereo,Parallel,Mono bridge mode.
● Selectable input sensitivity: 0.775V and 1.4V.
● RCA and XLR input connectors.
● Speakon and speaker terminal output connectors.
● 2 independent gain control knobs, 1 power switch, 1 power indicator.
● Each channel with LED indicator status: working, clipping or fault.
● With short circuit, no load, switch noise, radio frequency interference protection circuit.
