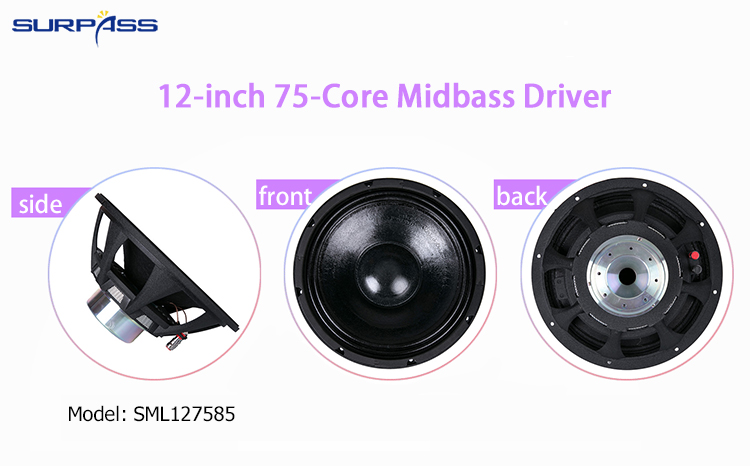

SML127585 12-inch 75-Core Midbass Driver
75-core inner and outer winding circle wire 12-inch 75-Core Midbass Driver
75-core inner and outer winding circle wire 12-inch 75-Core Midbass Driver
SML127585 12-inch 75-Core Midbass Driver Specification:
Model | SML127585 |
Description | 12-inch 75-core midbass speaker |
Installation aperture | About 290mm |
Diagonal screw hole | About 303mm |
Outer Diameter | About 320mm |
Height | About 145mm |
Magnet material | NdFeB Internal magnetism 74mm |
Voice coil | 75-core inner and outer winding circle wire |
Cone paper | Malaysia paper basin |
Frame material | Cast aluminum frame |
Rated Impedance | 8 ohm |
DC Impedance | 6 ohm |
Rated Power | 350 Watts |
Maximum power | 700 Watts |
Sensitivity | 97 dB/1W/1m |
Frequency range | 55-3.5K Hz |
Resonant frequency | 55Hz |
Electrical Quality Factor Number | 0.36 |
Mechanical Quality Factor Value | 6.5 |
Total Quality Factor Number | 0.34 |
Effective Volume | 55.6 liters |
Vibration Area | 540 cm2 |
Magnetic Force | 18 Txm |
Effective Mobile Quality | 58g |
Place of Origin | Guangzhou, China |
Net Weight | About 3.4KG (No packaging) |
