IR WIRELESS CONFERENCE SYSTEM
Description:
The infrared conference system has all the advantages of infrared communication complete with wireless transceiver microphone units. Wireless infrared technology provides the user with greater flexible whilst configuring the system and freedom of choice when placing microphones, it guarantees conference privacy and protects the system from wiretapping and radio interference. It's the best wireless conterence solutions for small-scale conferences.
System Features:
▪ Infra-red transmission technology guarantees privacy.
▪ Perfect sound quality as CD from the microphone.
▪ IR communication system eliminates the need of connecting the conference units. Installation can be done quick and smart without cumbersome arrangements.
▪ Fully functions(Discuss &Video tracking), support FIFO (1/2/3), Limit(1/2/3)and chairman only mode, microphones in one system up to 127 units.
▪ Microphones can be operated on either their built-in rechargeable Li-polymer batteries or AC power supply. Battery life approx 6 hours during speech and approx 30 hours when standby.
▪ Microphone OLED can display system and conference information.
▪ Excellent immunity to RF interference from mobile phones and RF devices.

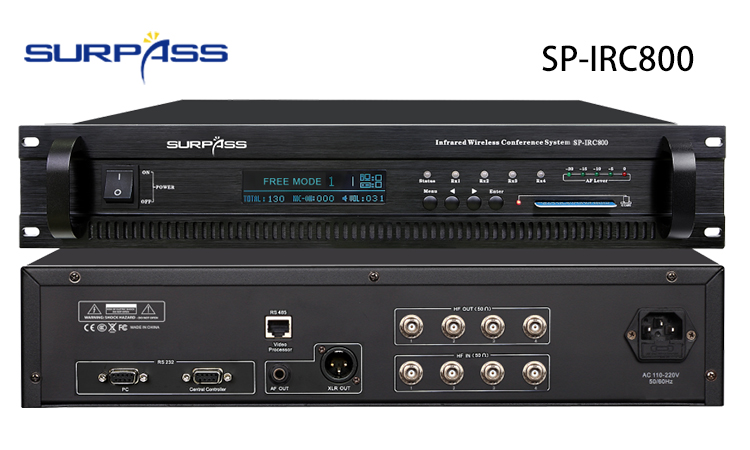

Infrared Conference System Main Unit
SP-IRC800
Features:
▪ Support Mode: Limit (1/2/3), FIFO(1/2/3), Chairman Only.
▪ Support video camera auto-track with video processor.
▪ 160x32 dot matrix LCD display system information.
▪ Two group audio output interface to support external audio system.
▪ Installation: 19-inch frame.
▪ Designed accordance to UL and CE standards.
▪ If main unit turn off power, microphone will shut off the power within 60 seconds.
SP-IRC800 Infrared Conference System Main Unit Specification:
Model | SP-IRC800 |
Transmission method | Wireless infrared |
Channels | 4 audio + 1 data |
Carrier frequency band | 4MHz-8MHz |
Modulation method | FM/FSK |
Receiving sensitivity | -100dBM |
Output level | 0dBV/+6dBV |
Frequency response | 100Hz-12KHz |
S/N Ratio | >82dB |
T.H.D. | <0.5% |
Transmission consumption | 0dbM |
Communication rate | 100KBPS |
Power supply | AC 110V 50Hz-60Hz / AC220V 50Hz-60Hz |
Consumption Rating | 10W |
Operating temperature range | 0-40 degree |
Dimensions(mm) | 483x377x89mm |
N.W | 8kg |
Place of Origin | Guangzhou, China |
