SP-N86C Intelligent Home Video and Audio System
Intelligent Home Video and Audio System
Intelligent Home Video and Audio System
SP-N86C Intelligent Home Video and Audio System Features:
1. 2.5D process glass with aluminium alloy sandblasting frame.
2. Boot up and play specified music.
3. Supporting Automatically Playing Songs on Power.
4. Power-off Memory Function: Memorizing the Play State before the Last Shutdown.
5. Sound effect function: support ordinary, rock, classical, jazz, pop and other sound effects.
6. Support trigger doorbell function.
7. Support Linkage Trigger Playing Music.
8. Support linkage trigger shutdown.
SP-N86C Intelligent Home Video and Audio System Specification:
Size | L86MM*W86*H10MM |
Weight | 0.38KG |
Wire box opening size | 86*86*57MM |
Operating system | Other (Bluetooth) |
Intelligence | no |
Home screen size | / |
Resolution | / |
Screen material | / |
Touch screen | Key touch |
ROM | / |
Extended TF Card Memory | 32GB |
Wired port | nonsupport， |
WIFI | nonsupport |
Output power | 2*25W（Yamaha Digital Amplifier） |
Output impedance | 4-8 ohm |
Total harmonic distortion | 0.03%(1W.1KHZ) |
Frequency response | 20Hz-20KHz |
Audio Signal-to-Noise Ratio | 98db |
Partition | nonsupport |
Speaker | / |
Bluetooth | Version4.0 |
485 Function | no |
Audio Format | MP3,WAV,WMA,FLAC,APE,,ACC,AC3,OGG, etc |
Photo | nonsupport |
Trigger alarm | Support |
Audio Input | AUX，one set |
Audio Output | one set(AV), 720P Video output |
Infrared remote control | Support |
Packing | Standard accessories: Gift Box, 1 Black Remote Controller, 1 wire box + 1 mounting bracket + 1 package of screw |
Inner box Dimension | 145*125*85MM |
Inner box Weight | 0.4KG |
20pcs/CTN Dimension | 295*430*255MM |
20pcs/CTN Weight | 8.2KG |
Place of Origin | Guangzhou, China |

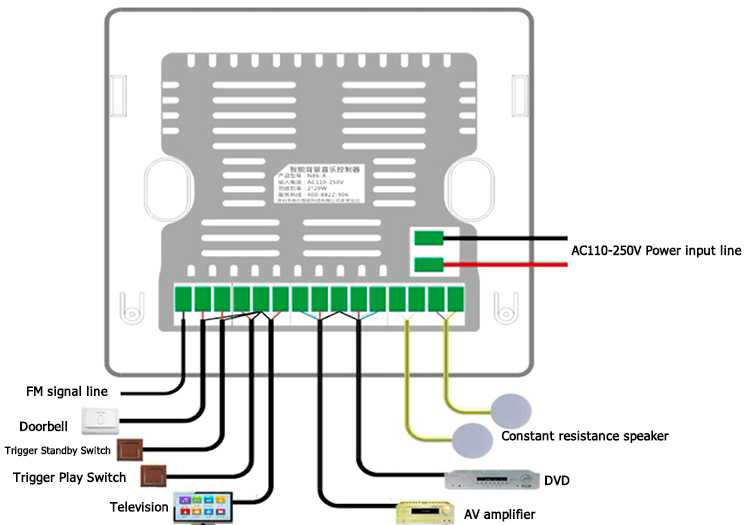

SP-N86C Intelligent Home Video and Audio System Installation wiring diagram
