SP-SWOP82 OP series Optical Interactive Whiteboards
82inch Optical Whiteboard OP series Optical Interactive Whiteboards
SP-SWOP82 OP series Optical Interactive Whiteboards Description:
OP Series Optical Interactive Whiteboards use the world leading optical multi-touch technology, with the perfect 10 touch and leading plag & play technology. OP series optical interactive whiteboard use the 4:3 , 16:9 and 16:10 projection ratio, size is available from 85'' to 137''.
SP-SWOP82 OP series Optical Interactive Whiteboards Specification:
Name | 82inch optical whiteboard |
Model | SP-SWOP82 |
Proportion | 4：3 |
Appearance size | 1622*1252*32mm |
Projection size | 1575*1172mm |
Packaging size | 1691*1318*45mm |
Material / process | Aluminum alloy; plastic |
Induction mode | optical drive touch technology |
Standard resolution | 32767×32767 |
Touch precision | ±3mm |
Touch point number | ≤2 |
Response time (scanning speed) | 5ms No delay |
Cursor speed (sampling rate) | ≤120fps |
Inducable object size | ≤Ф5.0mm |
Number of clicks | Countless times |
Touch pressure | Pressure free requirements |
Calibration method | 4、9、16、25 touch point |
Plate material | 15mm±0.2mmThick plate surface |
Surface characteristics | Anti salt fog, anti electromagnetic interference |
Operating system | WIN7\win8\win8.1 |
Panel use function | Support grades, classes, famous quotes, self change and free play |
Touch point number | Multipoint |
Operation mode | Any opaque objects such as hands or pens, left click, double-click, and support the right button. |
Annotation function | Support Word, PPT annotation, ink, graphic embedding |
Whiteboard software model | Full screen mode, desktop mode, edit mode |
Recording (Photography) function | Supports the preservation of screen content (and voice) into multimedia files and playback immediately. |
Multimedia support | Commonly used multimedia resources such as audio, video, pictures, FLASH and so on. |
Magic pen function | Drawing circle can start the spotlight, draw the square, start the magnifying glass, draw the free curve to realize the function of the laser pen |
Operating temperature | -10℃-45℃ |
Storage temperature | －40℃~75℃ |
Humidity operation | 10% ~ 90% RH, Non condensate |
Storage humidity | 10% ~ 90% RH, Non condensate |
Anti light performance | All angle light resistance |
Scanning frequency | 120Hz |
communication interface | USB 2.0 |
transmission speed | 480Mbps |
Power supply mode | USB power supply without external power supply |
working voltage | 4.75～5.25V |
Working current | ≤300ms |
Accessories list | 5 m USB extension line * 1strip; Electronic whiteboard pen * 2branch; Teaching pen * 1branch; CD-ROM * 1pcs; Whiteboard wall * 4individual |
Place of Origin | Guangzhou, China |
SP-SWOP82 OP series Optical Interactive Whiteboards Advantage:

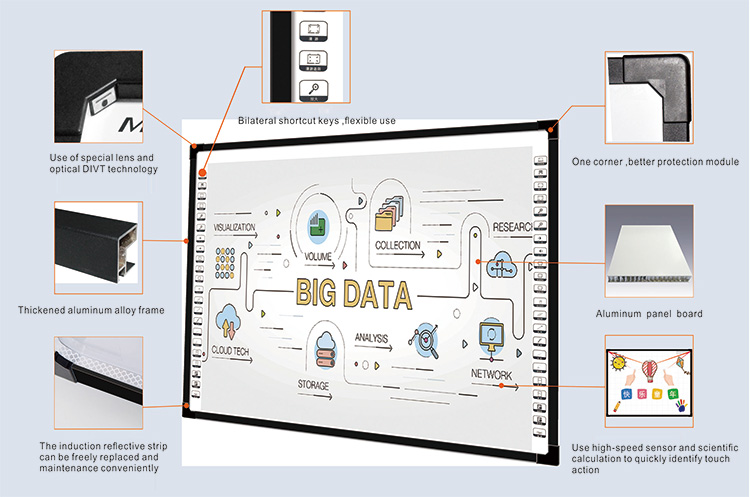

√ The aluminum alloy frame is formed integrally, the fastener is stronger in the plate body, and the disassembly and maintenance are more convenient.
√ The touch control scheme is integrated and designed to be more secure and stable by using FCC soft data line.
√ Anti electromagnetic interference, radiation protection, anti static, salt fog prevention.
√ Support USB 2.0/USB 3.0/WIN XP/WIN7/WIN10 Android.
√ Support grades, classes, famous words to change and function independently, projection area and other logo to make the application more humane.
√ The double 22 shortcut keys make the teaching more handy.
√ Smart software, multiple color selection gesture recognition function, recording function, teaching classroom synchronization, multi person writing annotation, resource sharing.
SP-SWOP82 OP series Optical Interactive Whiteboards Texture of material:
√ The panel is made of nano plastic plate, smooth and white, with aluminum alloy profiles for the frame.
