SP-WP300D D Series All In One Teaching System

Standard Configuration

i3 4G 500G

Optional Configuration

Wifi, DVD, RW, Bluetooth, SSD; *Higher configuration can be customized.

Physical Dimension

1270*280*70mm

Packing Size

1325*330*125mm

Net Weight

11 kgs

Gross Weight

16 kgs

Antenna

Top integrated

PPT Control

Integrated

Communication

2.4G

Transit Distance

10M

Battery

Rechargeable lithium battery

Laser Pointer

Integrated

VOL Control

Integrated

Mouse Function

Single click, double click, right click

Speaker

2 * 20W

Power Input

100-240V

Standby Power Consumption

<=5W

PC Voltage

4.1~5.5V

Data Display

3.5’’ LED Screen

Locker

Mechanical Locker

System Boot

ID Card Control

System Recovery

Integrated

Control Code

99 units codes inside, no need burn in seperately

Combination Key

Set card control, freeze time, control code and system lock

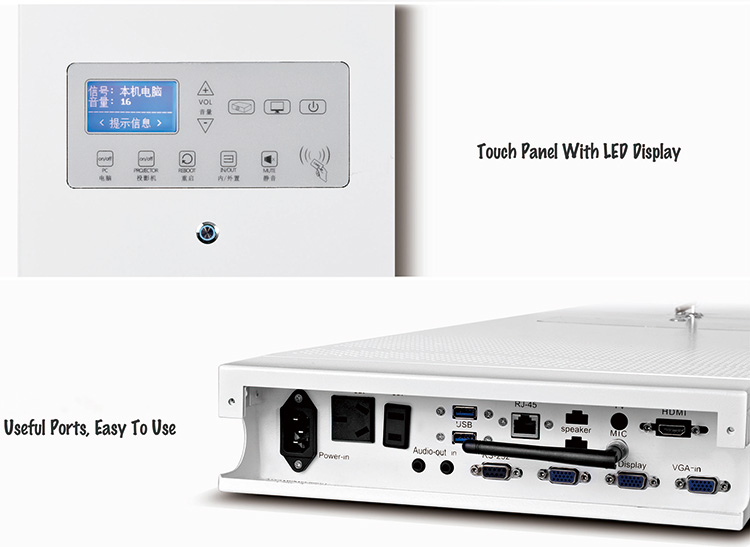

Control Panel

Mute *1, Digital locker *1, Reboot *1, VOL *2, Signal Switch *1, Power *1, Reboot *1, Projector *1

Index Lights

Mute *1, Digital locker *1, Projector Power *1, PC Power *1, System Power *1, Power Button *1

Connection Ports

USB*6, VGA IN*1, VGA OUT*1, MIC*1, AC IN*1, AC OUT*2, RJ45*2, RS-232*1, AUDIO IN*1, AUDIO OUT*1, HDMI

Lens

CMOS 1/3 inch

Color

24-bit

Pixels

5M

White Balance

Automatic

Apture

Automatic

Resolution

2592*1944

Capture

One Key Capture

Power

USB 2.0, 5V

Exposure Compensation

LED

Scan Frequency

15fps @ 2592*1944, 30fps @ 1920*1080

Scan Speed

1 Pic/Sec

Scan Resolution

200DPI

Scan Size

>=A4(210mm*297mm)

Focus

Fixed

Image Output

JPG, TIF, PNG, BMP

Video Record

AVI

Output Files

PDF, DOC, TXT

Image Operated

Zoom in/out, Color, Gray, Negtive, Mirror, Cut, Rotate, etc.

Note

Lines, Shapes, Retangle, Text, Withdraw, Redo, Width, Color, Style, etc.

Packing Details

All in one teaching system*1, 5M Power cable*1, 5M VGA Cable*1, 5M RS-232 Cable*1, Warranty Card*1, Manual*1, Document Camera Door Keys*2, E-KEY*1, Wireless Mic Suit*1

Place of Origin

Guangzhou, China
